Cutter without material transport
48

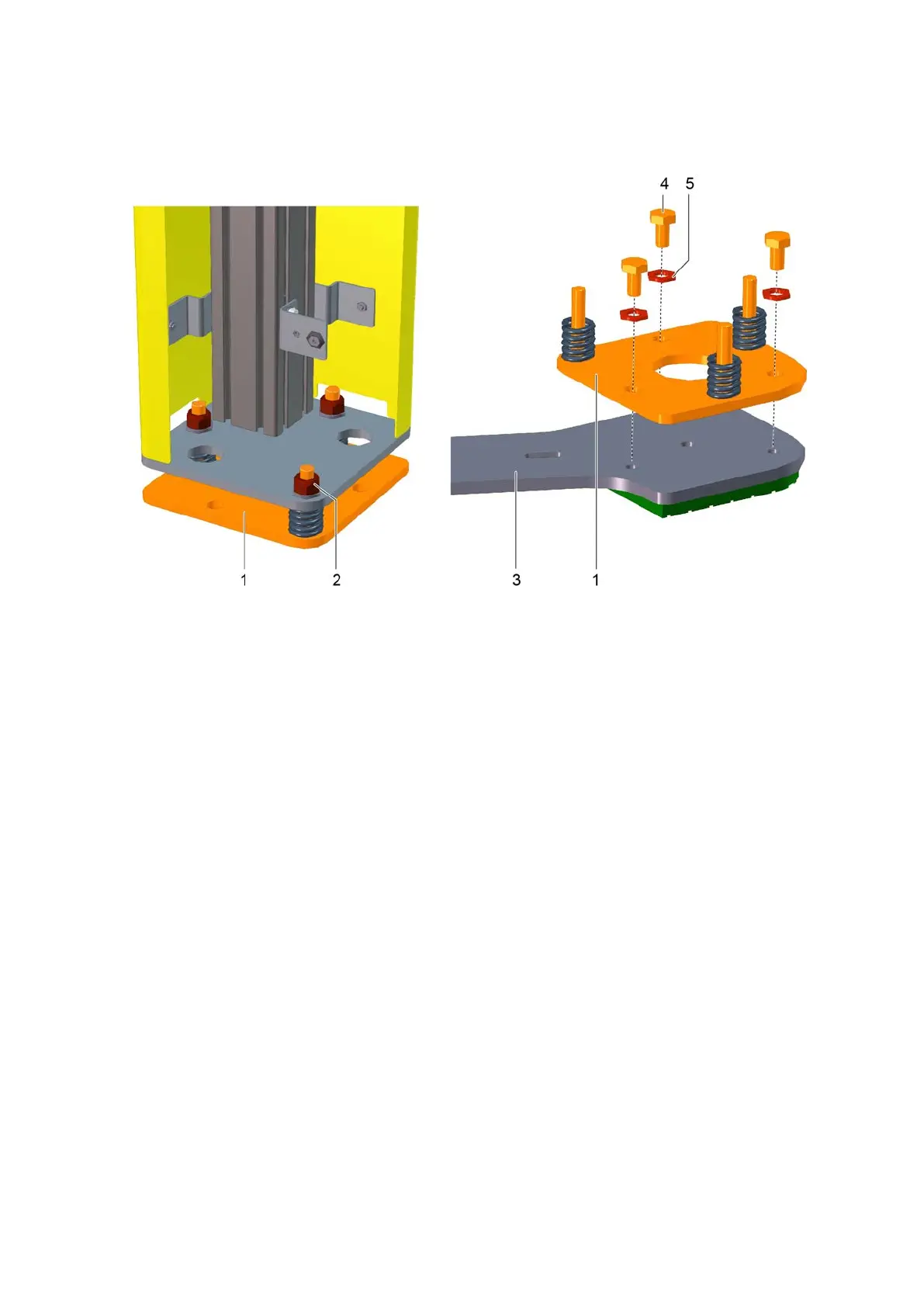

7.3.2 Mounting the base plates onto the auxiliary brackets
1 Base plate 4 Screw
2 Pillar nut 5 Washer
3 Auxiliary bracket
A Loosen the nuts of the pillar and remove with the washers (3x).
B Remove the base plate and put the pillar aside.
C Position the base plate on the auxiliary bracket.
D Attach the hexagonal screws with washers and tighten them (3x).
E Repeat the process on the other auxiliary brackets.
