Cutter without material transport
49
7.3.3 Mounting the pillars
Note:
The pillars are labeled. For installation, make sure the specified space is maintained.

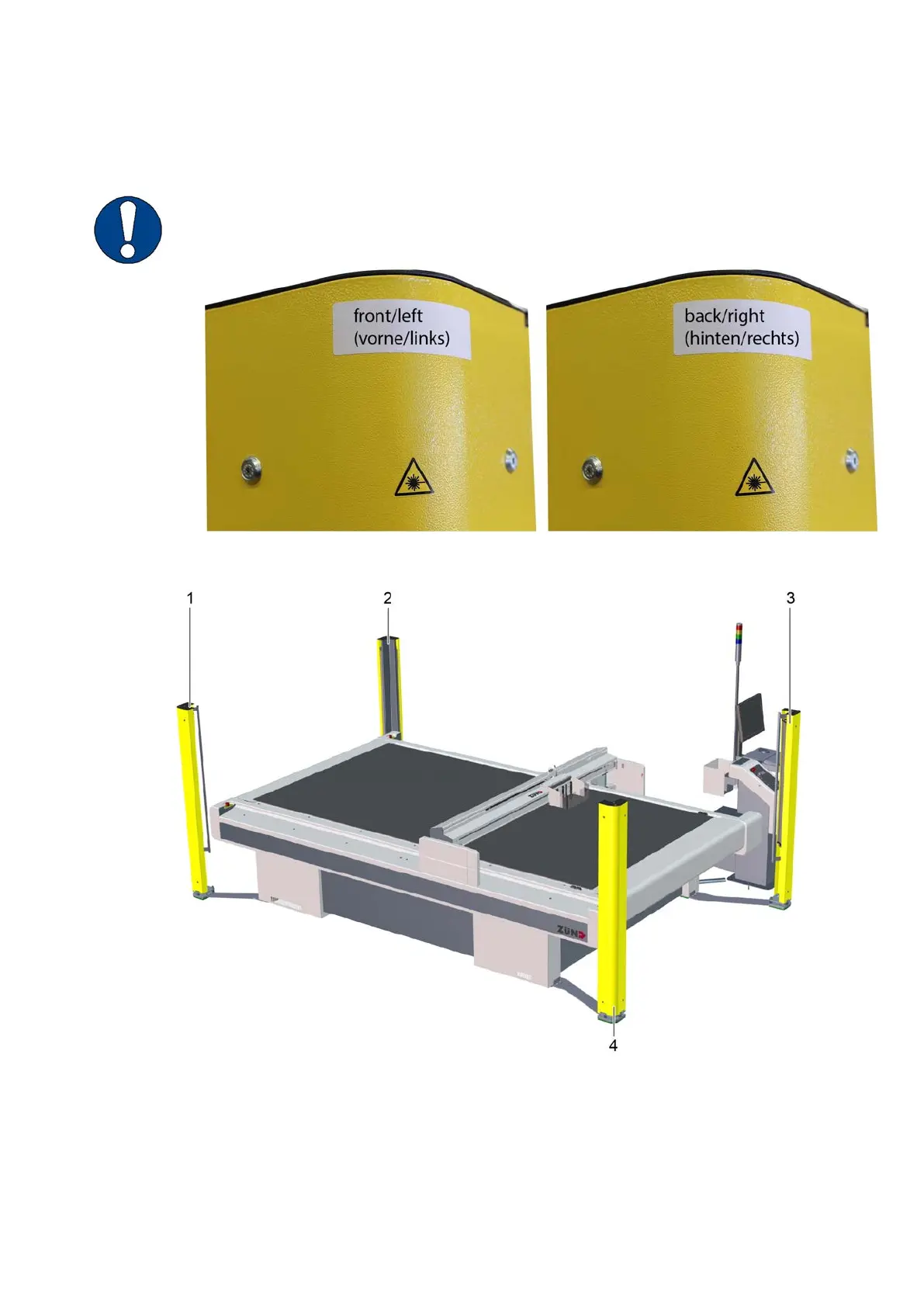

Examples of the labeling:
1 Rear/left pillar (mirror) 3 Front/right pillar (mirror)
2 Rear/right pillar 4 Front/left pillar
The pillars are screwed with the base plate directly onto the auxiliary brackets.
