Initial commissioning
94
Red light grid (type 450L-E):

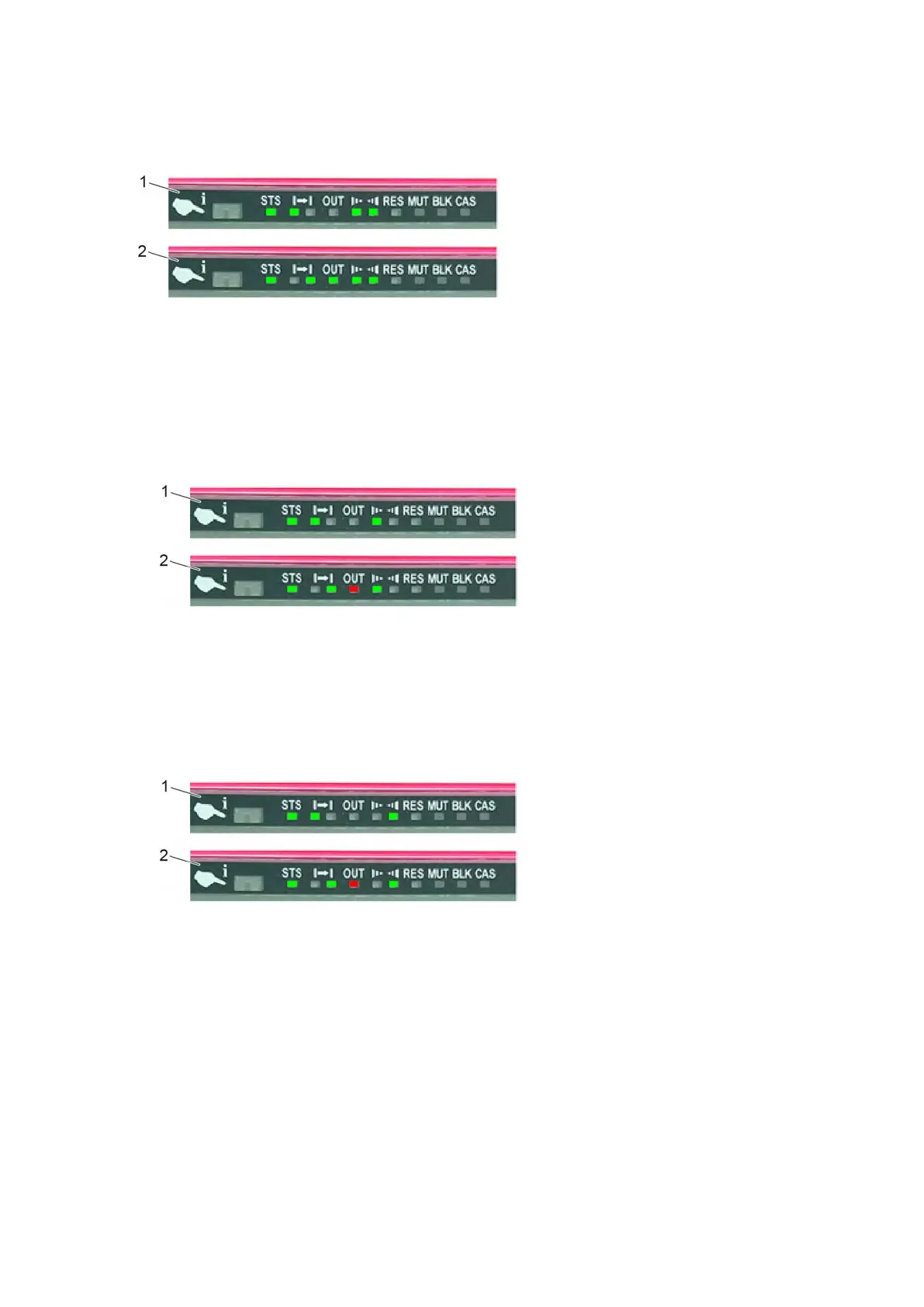

Figure 5: Status indicator without interruption
1 Transmitter 2 Receiver
A Lightly deflect the top area of each pillar by hand.
The indicator for the top half does not light up.
"OUT" indicator lights up red on the receiver.
1 Transmitter 2 Receiver
B Lightly deflect the bottom area of each pillar by hand.
The indicator for the bottom half does not light up.
"OUT" indicator lights up red on the receiver.
1 Transmitter 2 Receiver
