40
3D SYSTEMS, INC
.
2.

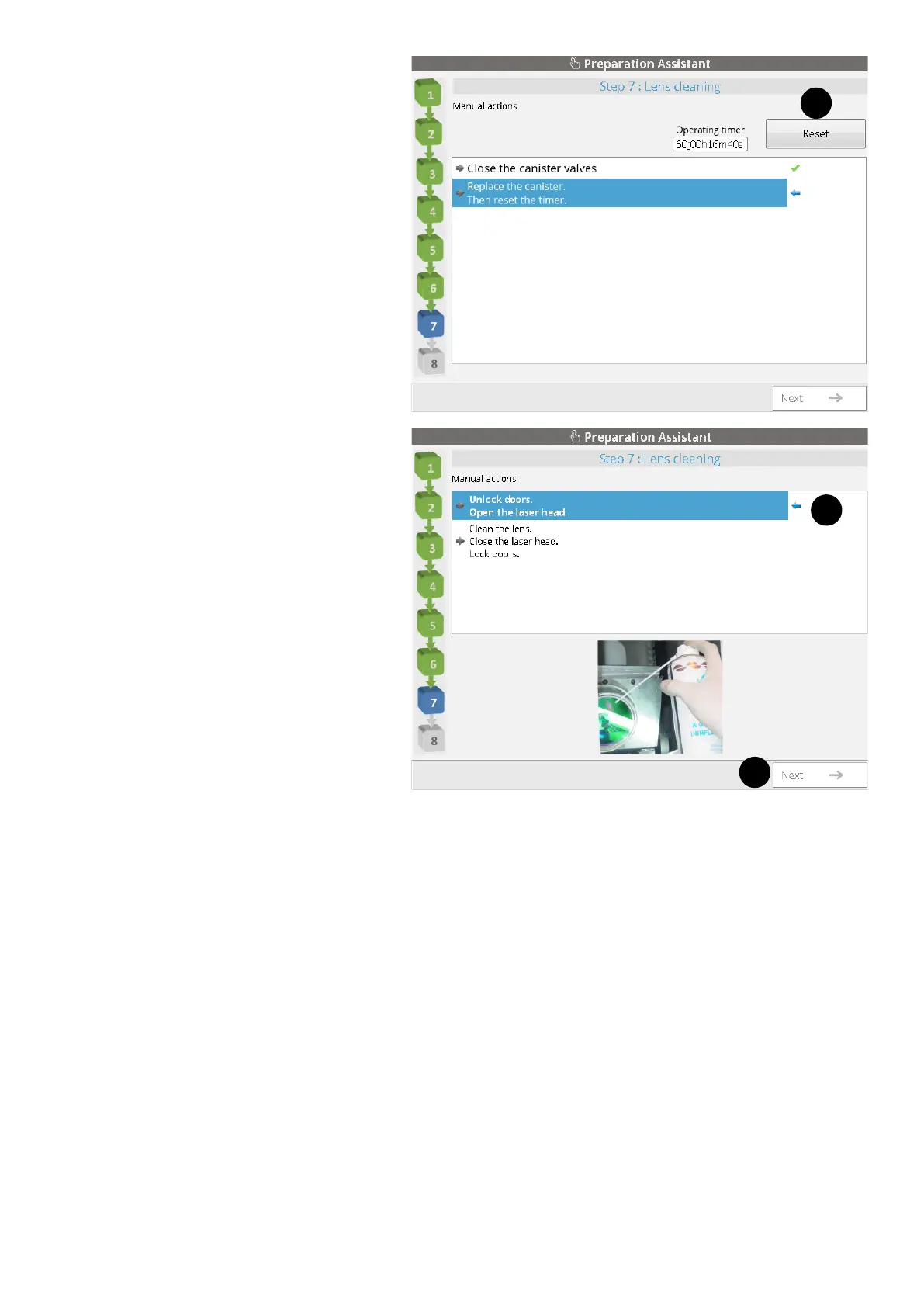

When the lter replacement is completed, click on
Reset
(1) to reset the lter timer.
3.
Then, perform the actions (2) : consult the section
"Cleaning the laser optic system" on page 62
for details on how to clean the lens.
4.
Click on
Next
(3) to go to the next step.
1
2
3
43
45
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
5
Overview
5
Control Software Version
5
General Machine Operation
6
Intended Use
6
Limitations Relating to the Manufacture of 3D Objects by Laser Sintering
6
Conditions Relating to the Layering
6
2 Safety Guidelines and Instructions
7
General Guidelines
7
Training and Instructions
7
Machine Handling
7
Material Handling
7
Laser
7
Alarms and Warnings
7
Safety Symbols and Definitions
8
First Aid Section - What to Do
9
Burns
9
Reporting Laser Radiation Exposure
9
Electrocution
9
Material Inhalation
9
Powder Ingestion
9
Powder Skin Contact
9
Powder Eye Contact
9
DMP Equipment Safety Features
10
Safety Interlocks
10
DMP System Response if an Interlock Fails
12
Limited Access and Barrier Shielding
12
Other Active Safety Features
13
Machine Safety
13
Electrical Safety
13
Personal Protective Equipment
14
Hand Tools
14
Grounding
14
Vacuum Cleaners
15
Fire and Explosion Prevention
15
Room Ventilation
15
Material Safety
16
Material Ignition Information
16
Finding Material Safety Information
16
Material Safety Information
16
Potentially Hazardous Metal Powders
17
Reactive Metal Powder Storage
17
Material Handling Precautions
18
Safe Material Handling Guidelines
18
GAS Safety
19
Oxygen Deprivation Effects and Symptoms
19
Risk Relating to Gas Bottles
20
Chemical Risk
20
Laser Safety
20
Laser Safety Classifications
20
Biological Risk
20
Mechanical Risk
20
Safety Labels on the DMP System
21
Laser Certification / Identification with Name Plate
21
Warning Labels - Airlock Door
22
Pinch Hazard Label - Front of the Scanner Head
22
Burn Hazard Label - Oxygen Sensor
22
Laser Safety Labels - Located on the Scanner Head Trap Door
24
Laser Safety Labels - Located on the Scanner Head
24
Laser Safety Labels - Located on the Scanner Head, Colimator Side
24
Laser Safety Labels - Located on the Printer Doors
24
Laser Safety Label - Located under the Airlock Door
25
Laser Safety Label - Located on the Manufacturing Chamber Door
25
Laser Safety Label - Located on the Optical Rail
25
European Directives
26
European Directive 89/686/CE in Europe
26
Operator Safety
26
3 System Specification
26
The Prox® DMP200 System
26
4 Prox® Dmp200 at a Glance
27
DMP200 System Components
27
Front Doors and Glove Doors
28
Manufacturing Chamber
28
Laser Assembly
30
Screen Control Panel and External Control Panel
31
Control/Supply Cabinet
32
Stack Light
34
Airlock
34
Pneumatic Data Management
34
Process Filter Assembly
35
Lifting
36
System Use
37
Powering up the Printer
37
User Interface
38
Preparation Menu
39
Manufacturing Menu
47
User Level Selection
51
Setting Menu
52
Machine Status Menu
58
Machine Preparation
60
Introduction
60
Plate Preparation and Loading
62
Zero Sintering Search
64
Loading the Feeding Piston
64
Creating the Powder Bed
65
Cleaning the Laser Optic System
66
Inerting the Manufacturing Chamber
68
Start a Manufacturing Process
68
Unloading a Plate
69
Introduction
69
Sintered Plate Cleaning
69
Manufacturing Chamber Cleaning
71
Powder Collecting Cans Removal
72
Closing / Opening PX Control Application
73
Shutting Printer down
73
Powering down the Printer
73
Reasonably Foreseeable Misuse
74
User Maintenance
75
Servicing : Replacement Process Filters Procedure
75
Process Filter (External Filter)
76
Preventive Maintenance Schedule
83
Every Month Maintenance
83
Every 3 Months Maintenance
84
Procedure to Check the Glove for Damage
84
Front and Back Casings Cleaning
85
Exhaust Filter Replacing
88
Chiller Cleaning
90
Every 6 Months Maintenance
92
Clamping Filter Inspection/Replacement
92
Gas Filter Replacement
93
Silicon Wiper Replacement
94
Chiller Filter Replacement
96
Cabinet Filter Replacement
97
Cabinet Cleaning
98
Every 1 Year Maintenance
99
Calibration
99
7 Copyright and Trademark Notice
101
Ec Declaration of Conformity
102
