INSTRUCTIONS FOR USE – Wells, Buttons, & DisplayInterpretation

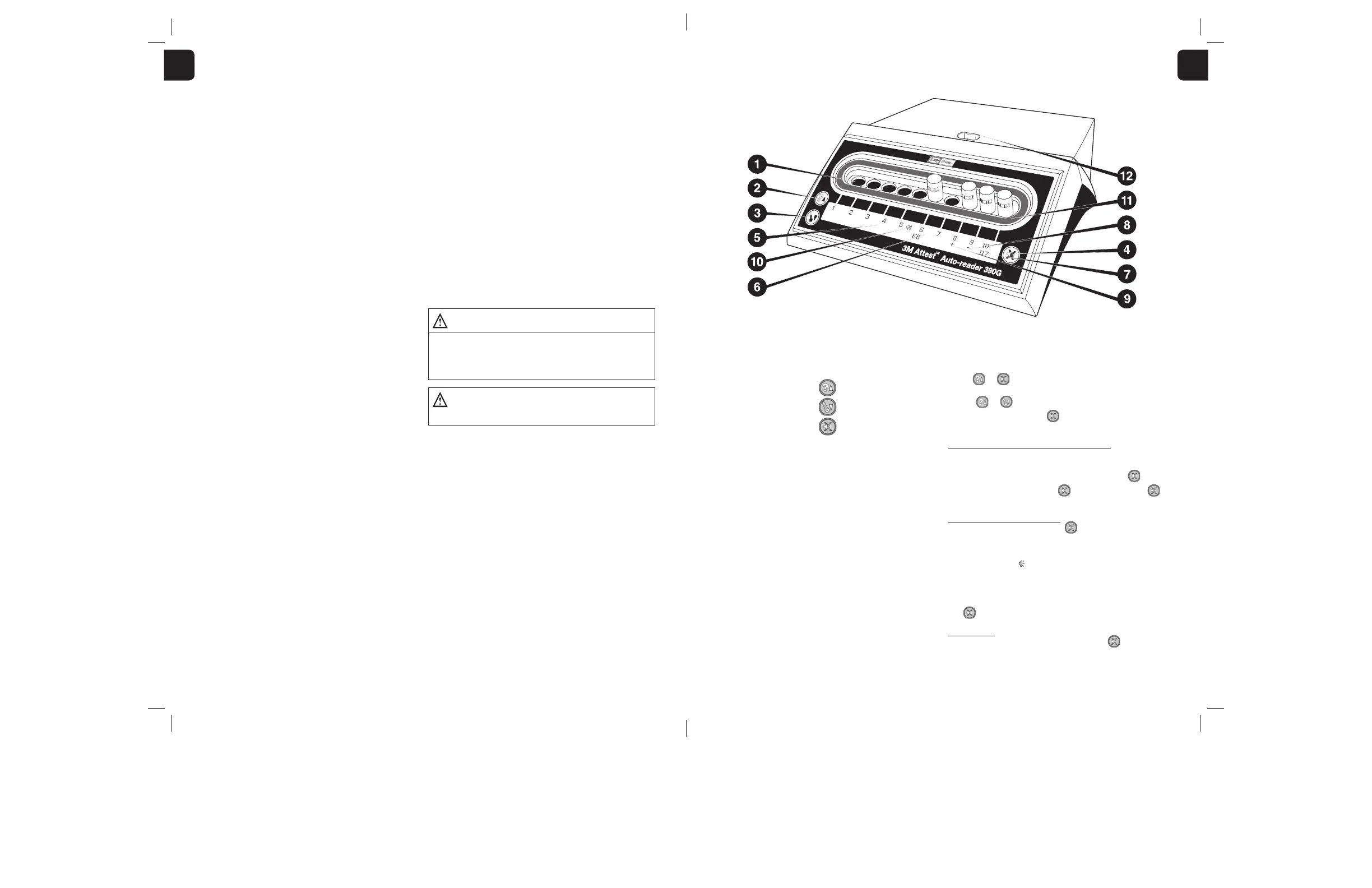

Please familiarize yourself with the face of the 3M™Attest™ Auto-reader390G:
Wells
1. Incubation/Reader Wells – The 3M™Attest™ Auto-reader390G has ten
incubationwells.
Buttons
2. Information / Up ArrowButton
3. Temperature / Down ArrowButton
4. Buzzer Alarm OFF / EnterButton
InformationDisplay
5. LCD Display – Display isbacklit
6. LCD Display – Example of Error Message for well#6
7. LCD Display – Example of Remaining Incubation Time, in minutes, for well#10
8. LCD Display – Example of Negative ( - ) BI result for well#9
9. LCD Display – Example of Positive ( + ) BI result for well#8
10. LCD Display – Alarm EnabledIndicator
Color-Coded ConfigurationIndicator
11. Incubation well configuration sticker is color-codedgreen
BICrusher
12. BI CrusherWell
INSTRUCTIONS FOR USE – 3M™Attest™
Auto-reader390GConfiguration
Note: Ideally, the 3M™Attest™ Auto-reader390G should be empty (i.e., have no
incubating BIs) when it isreconfigured.
Press the and buttons on the front of the 3M™Attest™ Auto-reader390G
simultaneously for 3seconds to enter configuration mode. Once in configuration mode,
use the Up and Down buttons to set the 3M™Attest™ Auto-reader390G
clock and audible alarm as desired. The
button acts as an “Enter” key and moves the
flashing cursor to the next changeablesetting.
Setting the 3M™Attest™ Auto-reader390GClock
The 3M™Attest™ Auto-reader390G date and time are displayed in this format:
YYYY-MM-DD HH:MM, with the time displayed using a 24hour clock. To change the year,
if necessary, push the up or down buttons to set desired year, then press to advance
to the month, adjust as necessary and press
to advance to the day. Use the
button to move to the time and set the hours andminutes.
Setting the Audible AlarmFunction
Move across the top row of text by pushing the button. The flashing “B” in Buzzer
indicates this is a changeable setting. It is recommended this be set at “Buzzer Enabled”
to audibly alert the operator to a positive BI but it may be set to “Buzzer Disabled” by
using either the up or down button. Note: If Buzzer Disabled is selected, and the changes
accepted, the speaker icon (
) will disappear from the LCD panel and the alarm will be
disabled for all positive 3M™Attest™ Rapid Readout Biological Indicators, error codes,
and caution code alarm warnings. Note: The 3M™Attest™ Auto-reader390G display
backlight flashes whenever an audible alarm sounds. Disabling the audible alarm does
NOT disable the LCD display backlightflashing.
Press
to select the desired option and advance to the Acceptscreen.
AcceptScreen
Use the up or down buttons to toggle between Yes and No, press to accept changes
(Yes selected) or retain current settings (No selected) and exit the configuration mode. The
LCD panel will return to the standarddisplay.
SPECIFICATIONS
Power SupplySpecifications
Power supply Operating Condition Units
Voltage Range 100-240 VoltsAC
Frequency 50/60 Hertz
Current 0.6 Amps
Environmental OperatingConditions
Environmental Condition Operating Condition Units
Altitude 3000(max) Meters
Operating Temperature 16– 29 ºC
Storage Temperature -10to 50 ºC
Operating Relative Humidity 20-80(non-condensing) %
Voltage Range 12 VoltsDC
Frequency DC
Current 1.2 Amps
Installation/Over Voltage CategoryII
Pollution Degree 2
INSTRUCTIONS FOR USE – InitialSet-up
ChooseLocation
Place 3M™Attest™ Auto-reader390G on a firm and level surface, away from sunlight
and incandescent light. To save counter space, units may be stacked twohigh.
WARNING:
• Do not place the instrument in environment exposed to sunlight or strong
incandescentlight.
• Do not place instrument close to any device that emits a strong
electro-magneticfield.
• Do not use on a vibrating surface.
Select & Install Correct PowerPlug
The 3M™Attest™ Auto-reader390G power supply comes with multiple blade
configurations. Install the blade configuration appropriate for your country into the power
supply and plug into appropriate AC groundedoutlet.
WARNING: Use only the power supply specified for this product and certified for
the country ofuse.
Wait 30Minutes BeforeUsing
Once plugged in, allow a 30minute warm-up period before placing 3M™Attest™ Rapid Readout Biological Indicators into the incubation wells. The C1caution code will disappear
when proper incubation temperature isreached.
SpecialConsiderations
It is recommended that the unit be left on to eliminate warm-up periods. The unit may be turned off when it is anticipated that it will not be used for an extendedperiod.
