LTE Router Installation | 59
Aprisa LTE User Manual 2.1
Interface Connection and Cabling
Ethernet Interface Connections

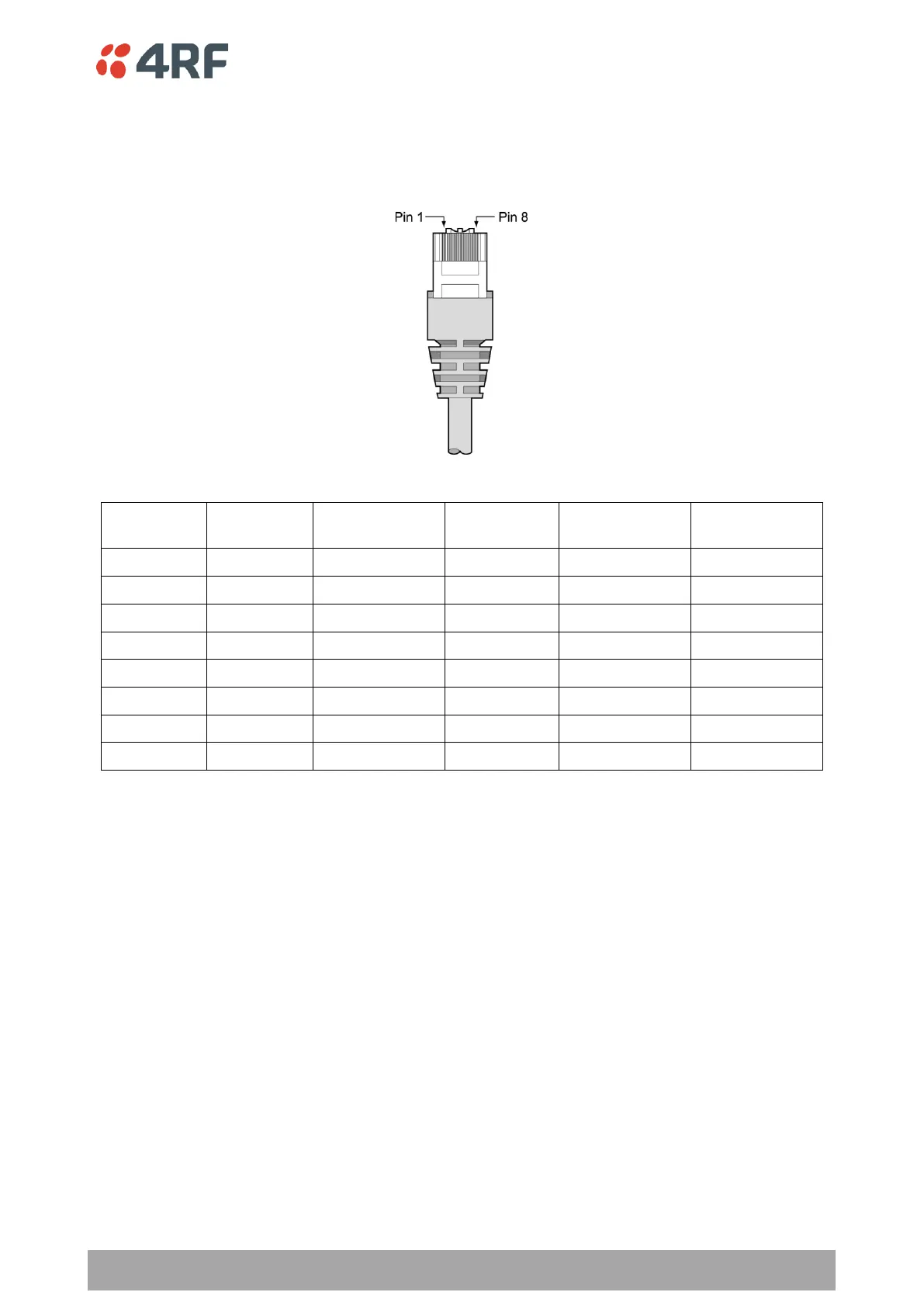

RJ45 pin numbering
Pin Number
Signal
Name
Pin Function
Direction
TIA-568A Wire
Colour
TIA-568B Wire
Colour
1
TX+_D1
Transmit+
Output
Green/white
Orange/white
2
TX-_D1
Transmit-
Output
Green
Orange
3
RX+_D2
Receive+
Input
Orange/white
Green/white
4
BI+_D3
Bi-directional+
Bi-directional
Blue
Blue
5
BI-_D3
Bi-directional-
Bi-directional
Blue/white
Blue/white
6
RX-_D2
Receive-
Input
Orange
Green
7
BI+_D4
Bi-directional+
Bi-directional
Brown/white
Brown/white
8
BI-_D4
Bi-directional-
Bi-directional
Brown
Brown
Fibre Optic Connections
SFP modules available as accessories from 4RF with several different interface types (see SFP Modules’ on
page 41).
