ABB ACS150 series

Actual signals and parameters
122
Par 4016
Source
Source min.
Source max.
1
Analog input 1
1301 MINIMUM AI1
1302 MAXIMUM AI1
2
Potentiometer
-
-
3
Current
0
2 · nominal current
4
Torque
-2 · nominal torque
2 · nominal torque
5
Power
-2 · nominal power
2 · nominal power
Parameters in the Long parameter mode
Index
Name/Selection
Description
Def
3 = ACT1+ACT2
Addition of ACT1 and ACT2
4 = ACT1*ACT2
Multiplication of ACT1 and ACT2
5 = ACT1/ACT2
Division of ACT1 and ACT2
6 = MIN(ACT1,2)
Selects the smaller of ACT1 and ACT2
7 = MAX(ACT1,2)
Selects the higher of ACT1 and ACT2
8 = sqrt(ACT1-2)
Square root of the subtraction of ACT1 and ACT2
9 = sqA1+sqA2
Addition of the square root of ACT1 and the square root of ACT2
10 = sqrt(ACT1)
Square root of ACT1
4015 FBK MULTIPLIER
Defines an extra multiplier for the value defined by parameter 4014 FBK SEL.
Parameter is used mainly in applications where feedback value is calculated
from an other variable (for example, flow from pressure difference).
0.000
-32.768…32.767
Multiplier. If parameter value is set to zero, no multiplier is used.
4016 ACT1 INPUT
Defines the source for actual value 1 (ACT1). See also parameter 4018
ACT1 MINIMUM.
1 = AI1
1 = AI1
Uses analog input 1 for ACT1
2 = POT
Uses potentiometer for ACT1
3 = CURRENT
Uses current for ACT1
4 = TORQUE
Uses torque for ACT1
5 = POWER
Uses power for ACT1
4017 ACT2 INPUT
Defines the source for actual value 2 (ACT2). See also parameter 4020
ACT2 MINIMUM.
1 = AI1
See parameter 4016 ACT1 INPUT.

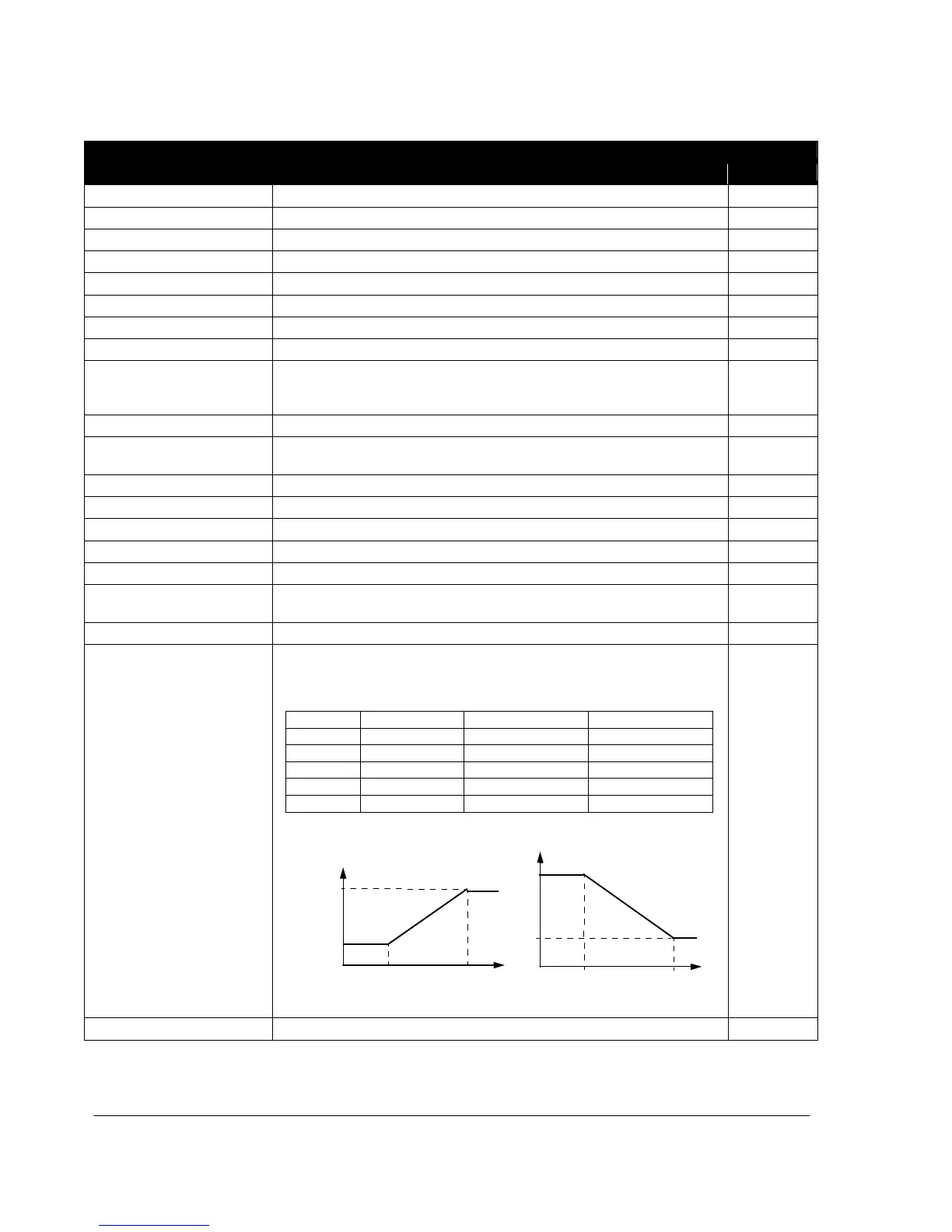

4018 ACT1 MINIMUM
Sets the minimum value for ACT1.
Scales the source signal used as the actual value ACT1 (defined by
parameter 4016 ACT1 INPUT).
A= Normal; B = Inversion (ACT1 minimum > ACT1 maximum)
ACT1 (%)
ACT1 (%)
4018
4019
A
B
4018
4019
Source min. Source max. Source min. Source max.
Source signal Source signal
0%
-1000…1000%
Value in percent
