ACS550 User’s Manual 33
Start-up, control with I/O and ID Run
Select the application macro (parameter 9902). The general
parameter setting procedure is given above.
The default value 1 (ABB STANDARD) is suitable in most cases.
Select the motor control mode (parameter 9904).
1(VECTOR:SPEED) is suitable in most cases. 2 (VECTOR:TORQ) is suitable for
torque control applications. 3 (
SCALAR:FREQ) is recommended
• for multimotor drives when the number of the motors connected to the
drive is variable
• when the nominal current of the motor is less than 20% of the nominal
current of the drive
• when the drive is used for test purposes with no motor connected.

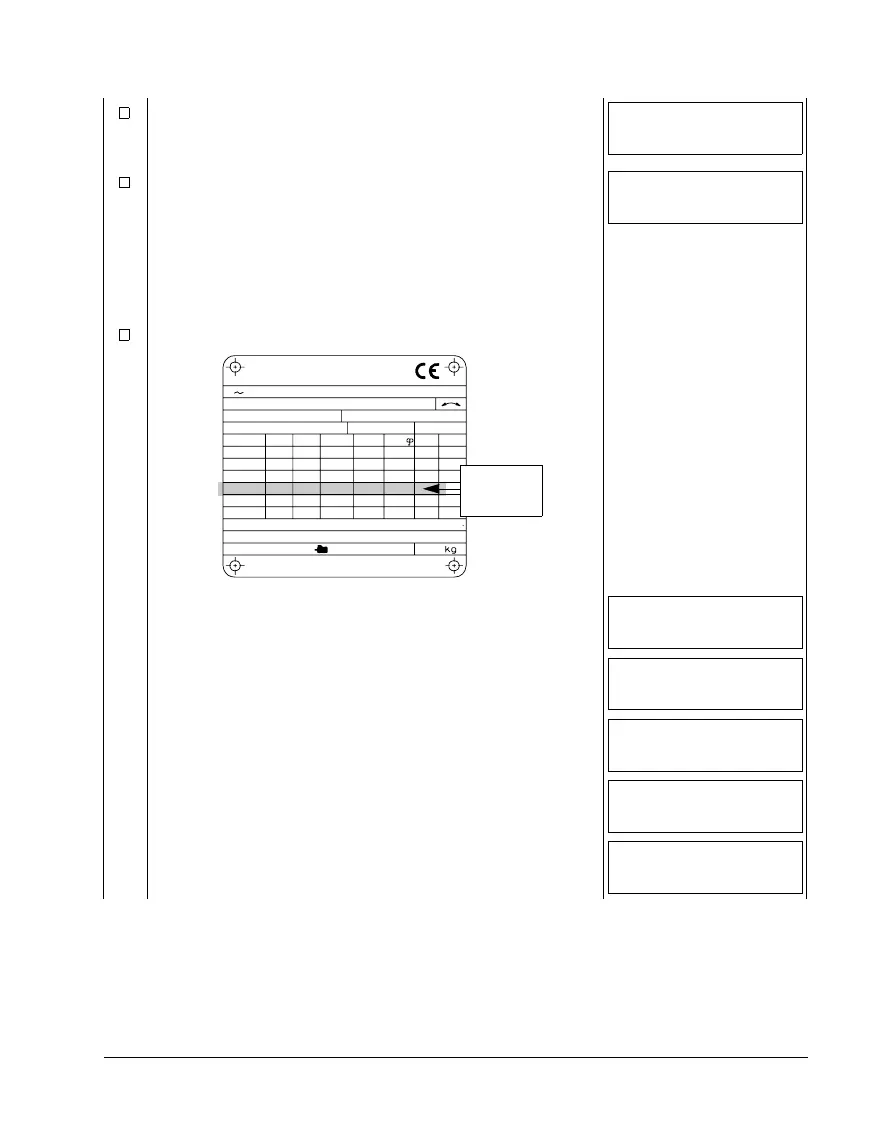

Enter the motor data from the motor nameplate:
Note: Set the motor data to
exactly the same value as on
the motor nameplate. For
example, if the motor nominal
speed is 1470 rpm on the
nameplate, setting the value of
parameter 9908
MOTOR NOM
SPEED to 1500 rpm results in the
wrong operation of the drive.
• motor nominal voltage (parameter 9905)
• motor nominal current (parameter 9906)
Allowed range: 0.2…2.0 · I
2hd
A
• motor nominal frequency (parameter 9907)
• motor nominal speed (parameter 9908)
• motor nominal power (parameter 9909)
REM
PAR FWD
9902
REM
PAR FWD
9904
M2AA 200 MLA 4
1475
1475
1470
1470
1475
1770
32.5
56
34
59
54
59
0.83
0.83
0.83
0.83
0.83
0.83
3GAA 202 001 - ADA
180
IEC 34-1
6210/C36312/C3
Cat. no
35
30
30
30
30
30
50
50
50
50
50
60
690 Y
400 D
660 Y
380 D
415 D
440 D
V
Hz kW
r/min A
cos
IA/IN
t
E/s
Ins.cl. F
IP 55
No
IEC 200 M/L 55
3
motor
ABB Motors
380 V
supply
voltage
REM
PAR FWD
9905
REM
PAR FWD
9906
REM
PAR FWD
9907
REM
PAR FWD
9908
REM
PAR FWD
9909
