ABB ACS550 User Manual

12 ACS550 User’s Manual
Installation
Preparing for installation

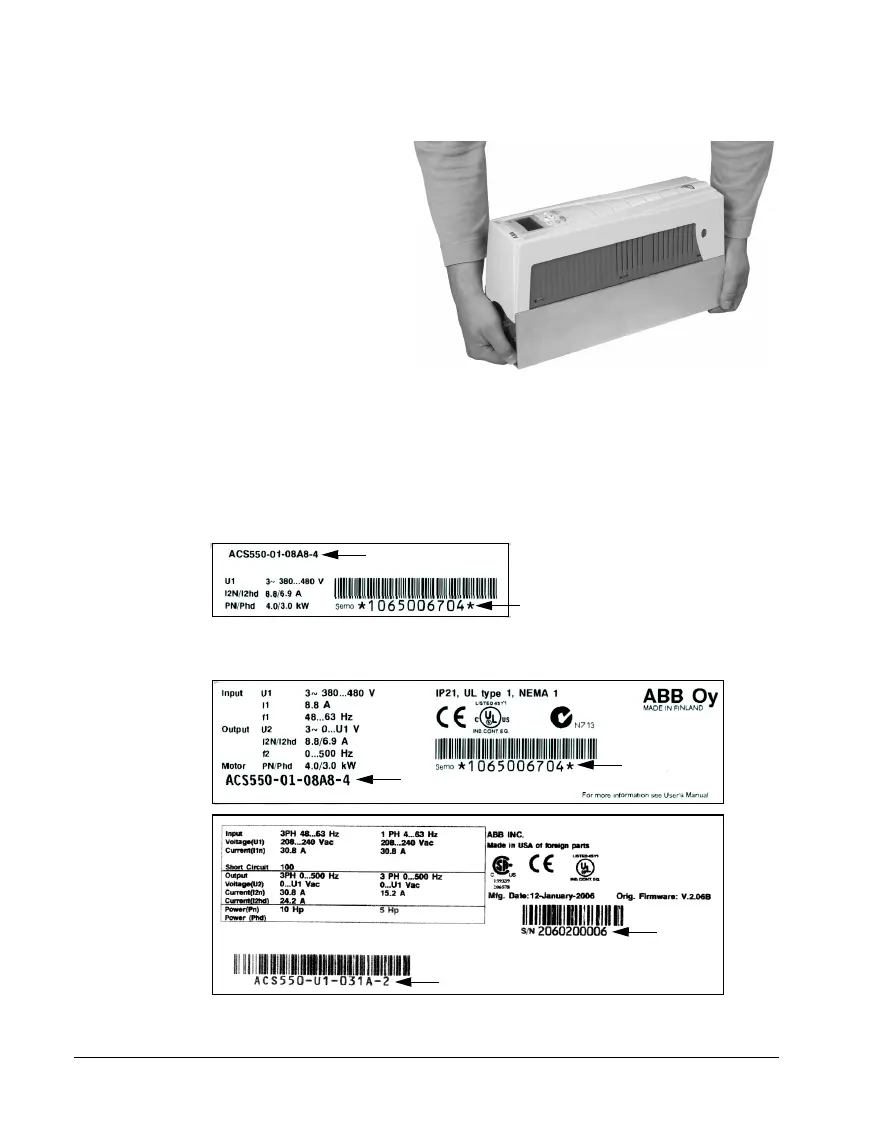

Lifting the drive
Lift the drive only by the metal
chassis.
Unpacking the drive
1. Unpack the drive.
2. Check for any damage and
notify the shipper immediately
if damaged components are
found.
3. Check the contents against
the order and the shipping label to verify that all parts have been received.
Drive identification
Drive labels
To determine the type of drive you are installing, refer to either:
• serial number label attached on upper part of the chokeplate between the
mounting holes, or
• type code label attached on the heat sink – on the right side of the drive cover.
Two examples of the type code label are given below.
IP2040
Serial number
Type code
Serial number
Type code
Type code
Serial number

ABB ACS550 Specifications

General

Frequency Range	0 to 500 Hz
IP Rating	IP21 (standard), IP55 (optional)
Output Voltage	0 to Input Voltage
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	RS485, Modbus RTU, Profibus DP (optional), DeviceNet (optional)
Ambient Temperature	-10°C to +40°C (without derating), up to +50°C (with derating)
