288 ACS550 User’s Manual
Technical data
Drives with IP54 / UL type 12 enclosures
Weight
The following table lists typical maximum weights for each frame size. Variations
within each frame size (due to components associated with voltage/current ratings
and options) are minor.

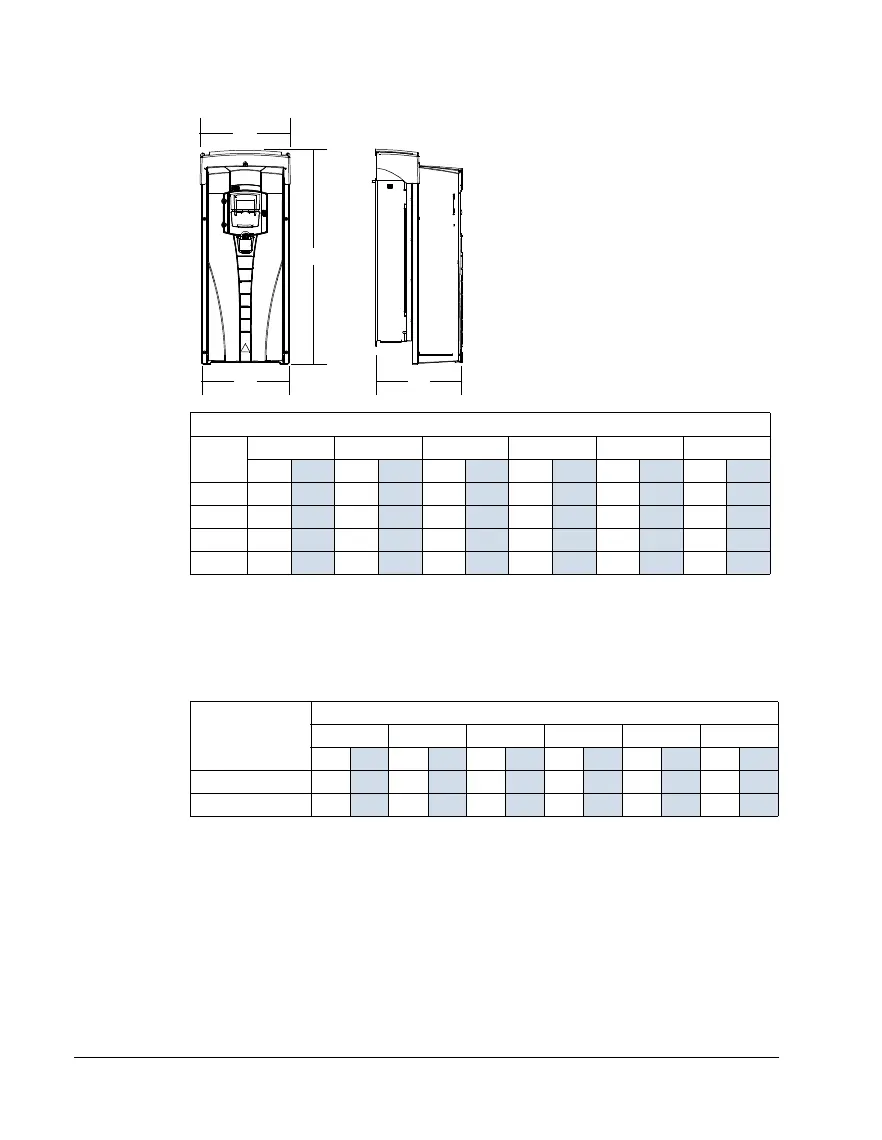

IP54 / UL type 12 – Dimensions for each frame size
Ref. R1 R2 R3 R4 R5 R6
mm
in mm in mm in mm in mm in mm in
W 213
8.4 213 8.4 257 10.1 257 10.1 369 14.5 410 16.1
W2 222
8.8 222 8.8 267 10.5 267 10.5 369 14.5 410 16.1
H3 461
18.1 561 22.1 629 24.8 760 29.9 775 30.5 926 36.5
D 234
9.2 245 9.6 254 10.0 285 11.2 309 12.2 423 16.7
00467918.xls B
Enclosure
Weight
R1 R2 R3 R4 R5 R6
kg
lb kg lb kg lb kg lb kg lb kg lb
IP21 / UL type 1 6.5
14.3 9.0 19.8 16 35 24 53 34 75 69 152
IP54 / UL type 12 8.0
17.6 11.0 24.3 17.0 37.5 26.0 57.3 42.0 92.6 86.0 190
00467918.xls B
H3
W
D
W 2
