286 ACS550 User’s Manual
Technical data
Dimensions and weights
The dimensions and mass for the ACS550 depend on the frame size and enclosure
type. If unsure of the frame size, first, find the “Type” code on the drive labels (see
sections Type code on page 13 and Drive labels on page 12). Then look up that type
code in the rating tables (see chapter Technical data, page 259), to determine the
frame size. A complete set of dimensional drawings for ACS550 drives is located in
ACS550 Technical Reference Manual.

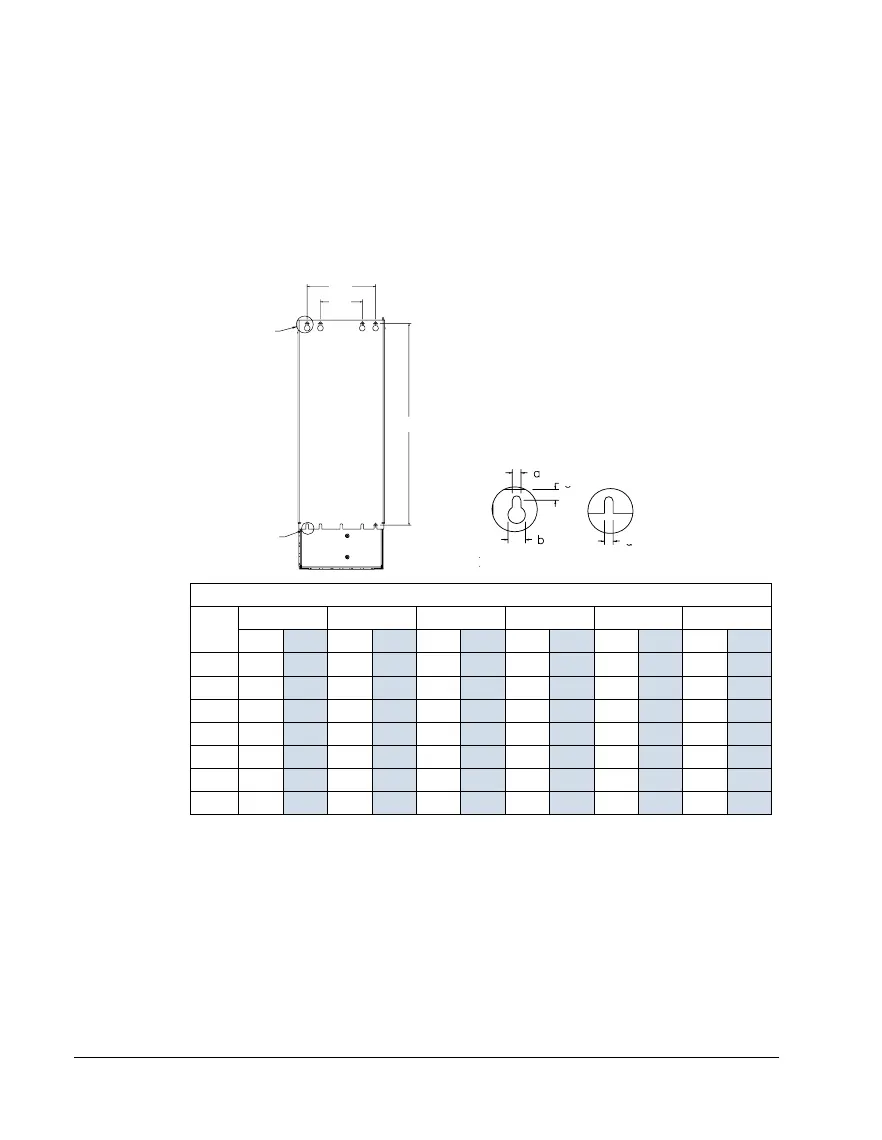

Mounting dimensions
IP21 / UL type 1 and IP54 / UL type 12 – Dimensions for each frame size
Ref.
R1 R2 R3 R4 R5 R6
mm
in mm in mm in mm in mm in mm in
W1
1
98.0 3.9 98.0 3.9 160 6.3 160 6.3 238 9.4 263 10.4
W2
1
-- -- -- -- 98.0 3.9 98.0 3.9 -- -- -- --
H1
1
318 12.5 418 16.4 473 18.6 578 22.8 588 23.2 675 26.6
a 5.5
0.2 5.5 0.2 6.5 0.25 6.5 0.25 6.5 0.25 9.0 0.35
b 10.0
0.4 10.0 0.4 13.0 0.5 13.0 0.5 14.0 0.55 14.0 0.55
c 5.5
0.2 5.5 0.2 8.0 0.3 8.0 0.3 8.5 0.3 8.5 0.3
d 5.5
0.2 5.5 0.2 6.5 0.25 6.5 0.25 6.5 0.25 9.0 0.35
1
Center to center dimension.
X0032
b
H1
See detail A
a
W1
See detail B
W2
c
d
Detail B
Detail A
