56 ACS550 User’s Manual
Control panels
Clock Set mode
In the Clock Set mode, you can:
• show or hide the clock
• change date and time display formats
• set the date and time
• enable or disable automatic clock transitions according to the daylight saving
changes
• start, stop, change the direction and switch between local and remote control.
The Assistant Control Panel contains a battery to ensure the function of the clock
when the panel is not powered by the drive.
How to show or hide the clock, change display formats, set the date and time and enable
or disable clock transitions due to daylight saving changes

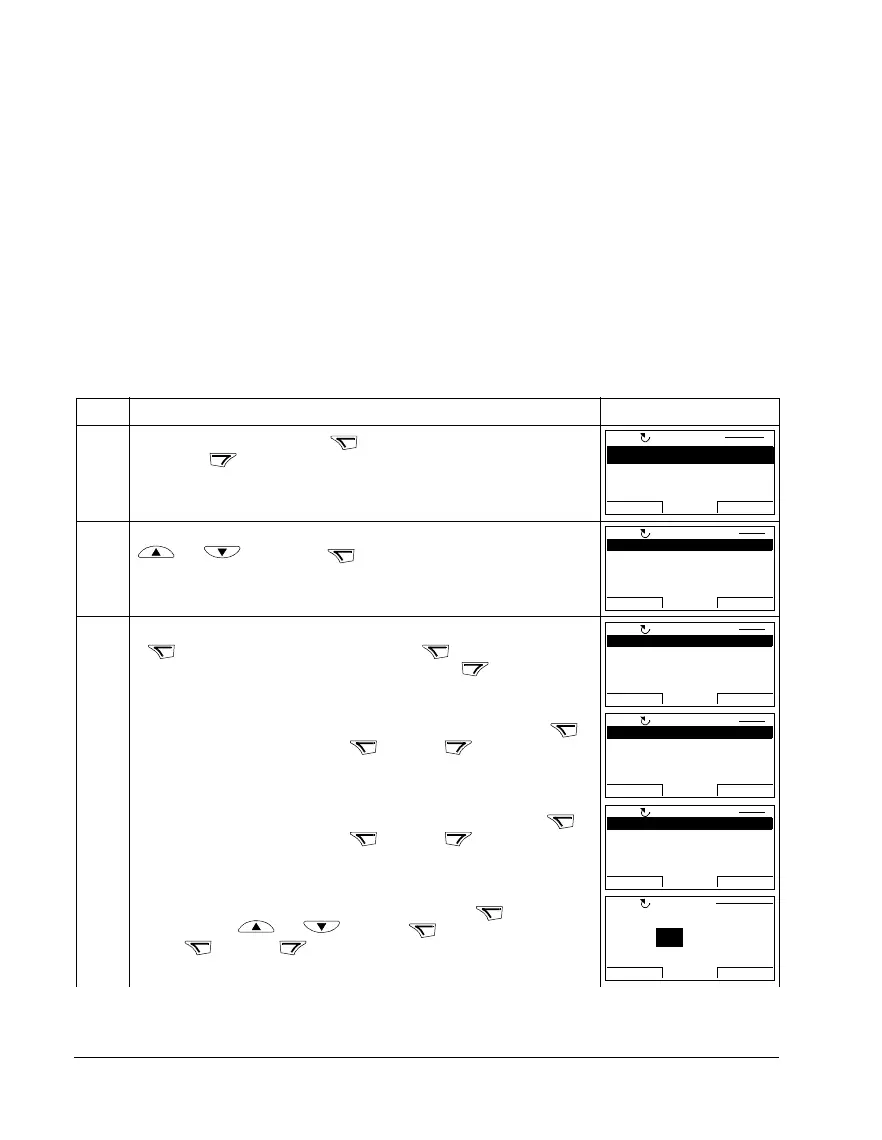

Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go to the Clock Set mode by selecting CLOCK SET on the menu with keys
and , and pressing .
3. • To show (hide) the clock, select CLOCK VISIBLILITY on the menu, press
, select Show clock (Hide clock) and press , or, if you want to return
to the previous display without making changes, press .
• To specify the date format, select DATE FORMAT on the menu, press
and select a suitable format. Press to save or to cancel your
changes.
• To specify the time format, select TIME FORMAT on the menu, press
and select a suitable format. Press to save or to cancel your
changes.
• To set the time, select SET TIME on the menu and press . Specify the
hours with keys and , and press .Then specify the minutes.
Press to save or to cancel your changes.
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER00:00
MAIN MENU 1
LOC
ENTER
CLOCK VISIBILITY
TIME FORMAT
DATE FORMAT
SET TIME
SET DATE
EXIT
SEL00:00
TIME & DATE 1
LOC
SEL SEL
EXIT
Show clock
Hide clock
EXIT
SEL
00:00
CLOCK VISIB 1
LOC
SEL
OK CANCEL
dd.mm.yy
mm/dd/yy
dd.mm.yyyy
mm/dd/yyyy
CANCEL
OK00:00
DATE FORMAT 1LOC
SEL
OK CANCEL
24-hour
12-hour
CANCEL
OK00:00
TIME FORMAT 1LOC
SEL
OK
OK CANCEL
SET TIME
CANCEL
OK00:00
LOC
15:41
