Always remember to refit the protection covers after removing them.
(A)
(A)
(B)
(C)
(C)
(C)

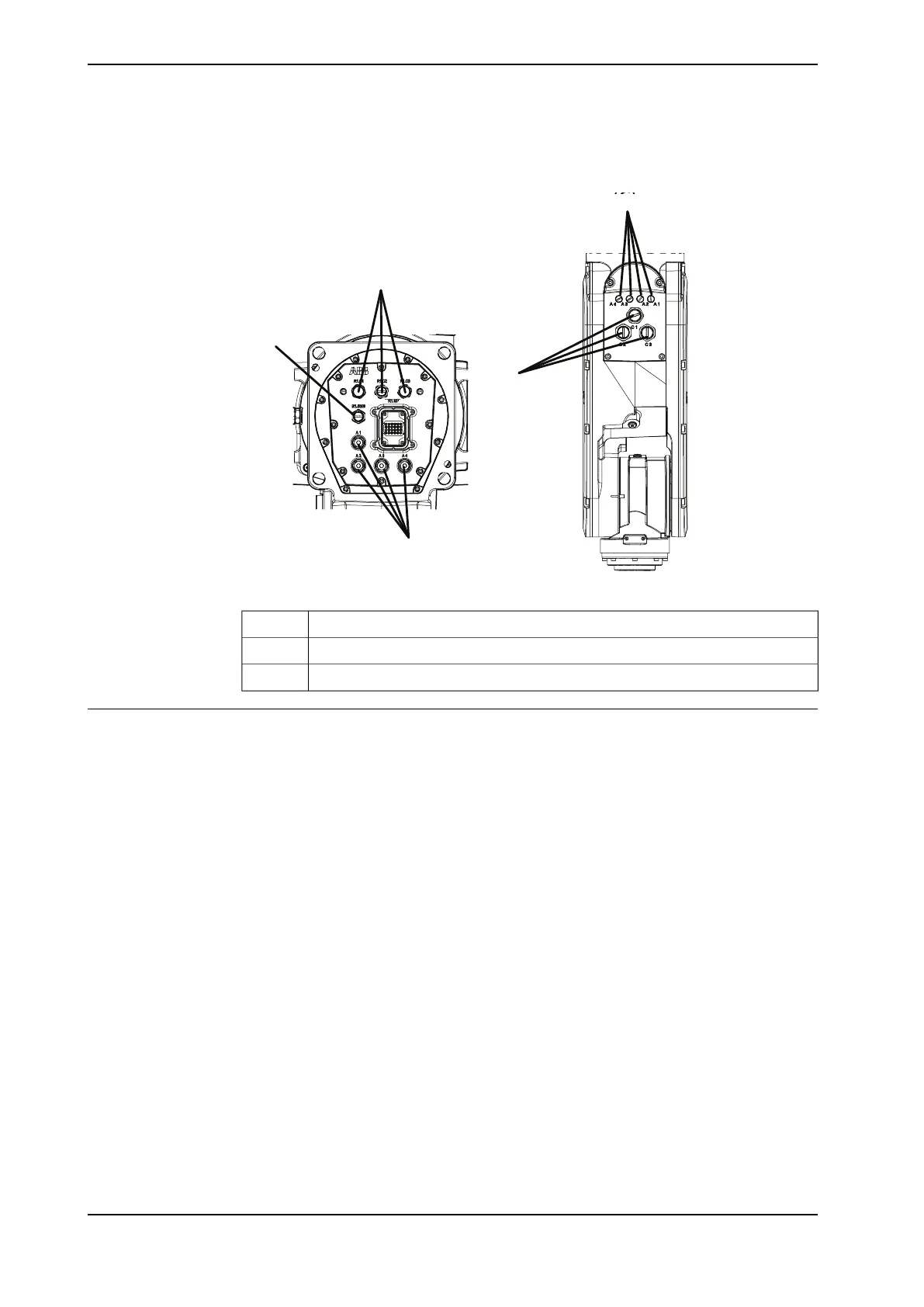

xx2200000998
CP/CS or Ethernet connector protection coversA
SMB connector protection coverB
Air hose connector protection coversC
Scalable I/O device connection
For robot working with safetyIO-based laser scanners, a safety I/O device
DSQC1042 will be available and required to be connected with the base I/O device
DSQC1030 installed on the controller.
