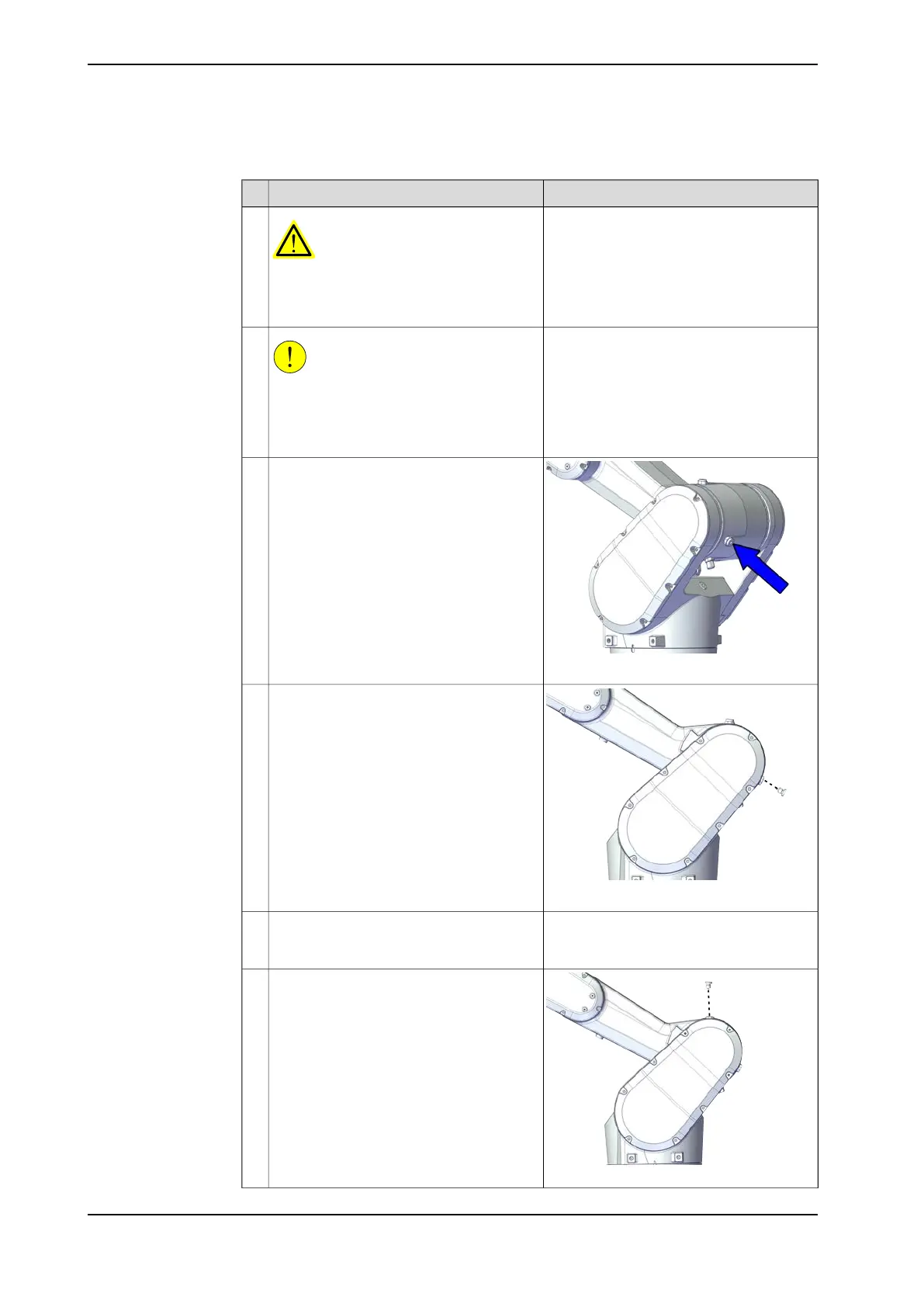

Draining oil of axis-2 gearbox
NoteAction
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 29.
1
CAUTION
The gearbox can contain an excess of
pressure that can be hazardous. Open the
oil plug carefully in order to let the excess
pressure out.
2
xx2000001515
Place the oil collecting vessel underneath
the oil plug, draining.
3
xx2000001516
Remove the oil plug, draining.4
Plug a clean pipe to the oil plug, draining,
with the other end to the oil collecting ves-
sel.
5
xx2000001517
Remove the oil plug, venting and keep it
opened to speed up the drainage.
6
Continues on next page
330 Product manual - CRB 1300
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.5.1 Replacing the lower arm
Continued
