ABB CRB 1300 - Page 539

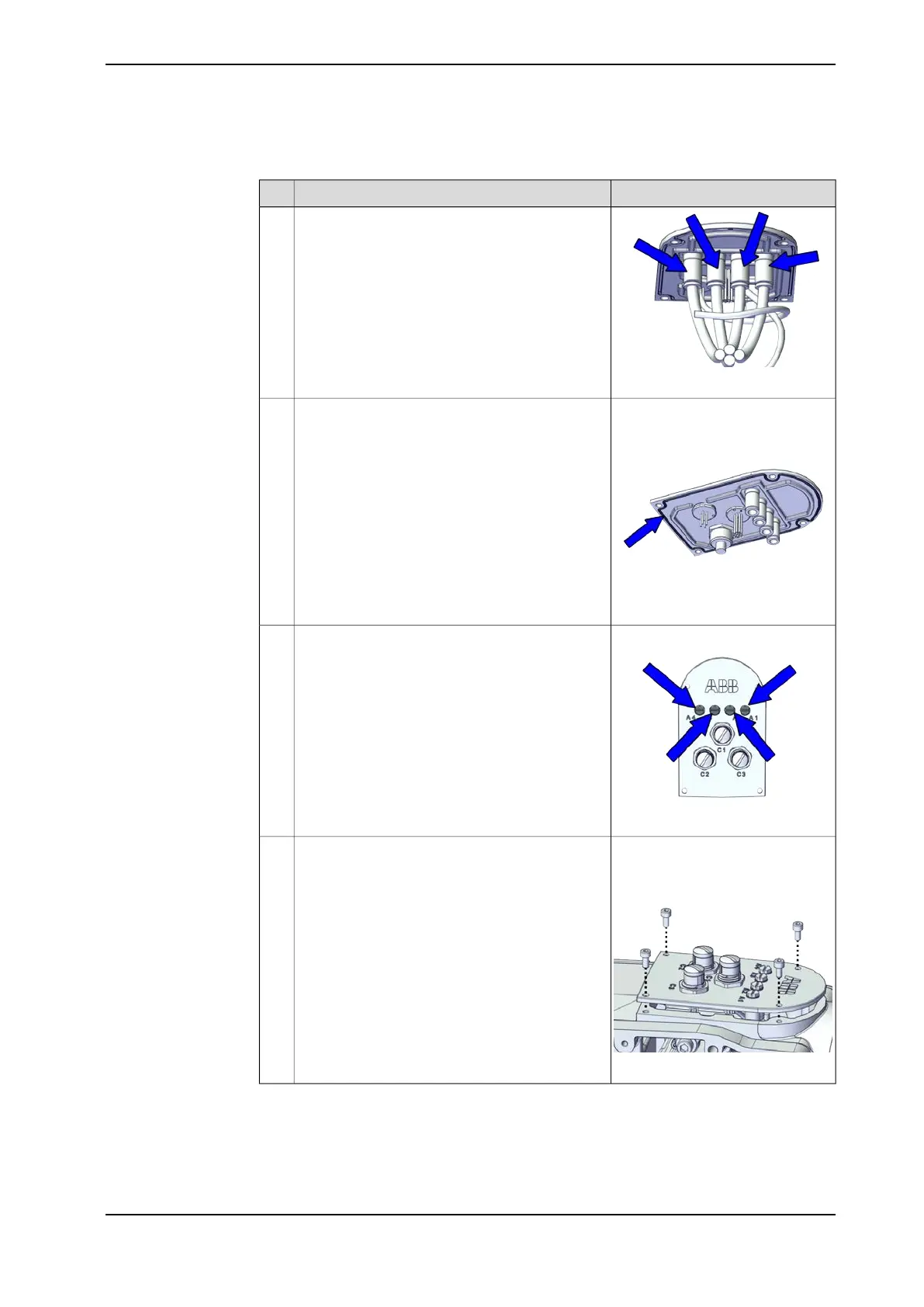

Refitting the process hub
NoteAction
xx2000001539
Check the air hoses.
Replace the cable package if damaged. See Re-
placing the cable package on page 211.
1
Gasket for process hub:
3HAC070887-001
For robots with protection class IP67 (option
3350-670)
2
xx2000002512
Check the gasket.
Replace if damaged.
Seal bolt: 3HAC032050-001For robots with protection class IP67 (option
3350-670)
3
xx2000002513
Check the seal bolts.
Replace if damaged.
Screw: M4x10 12.9 Lafre
2C2B/FC6.9 (4 pcs)
Refit the process hub.4
Tightening torque: 2.6 Nm
xx2000001538
Continues on next page
Product manual - CRB 1300 539
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
5 Repair
5.6.5 Replacing the axis-5 motor
Continued
