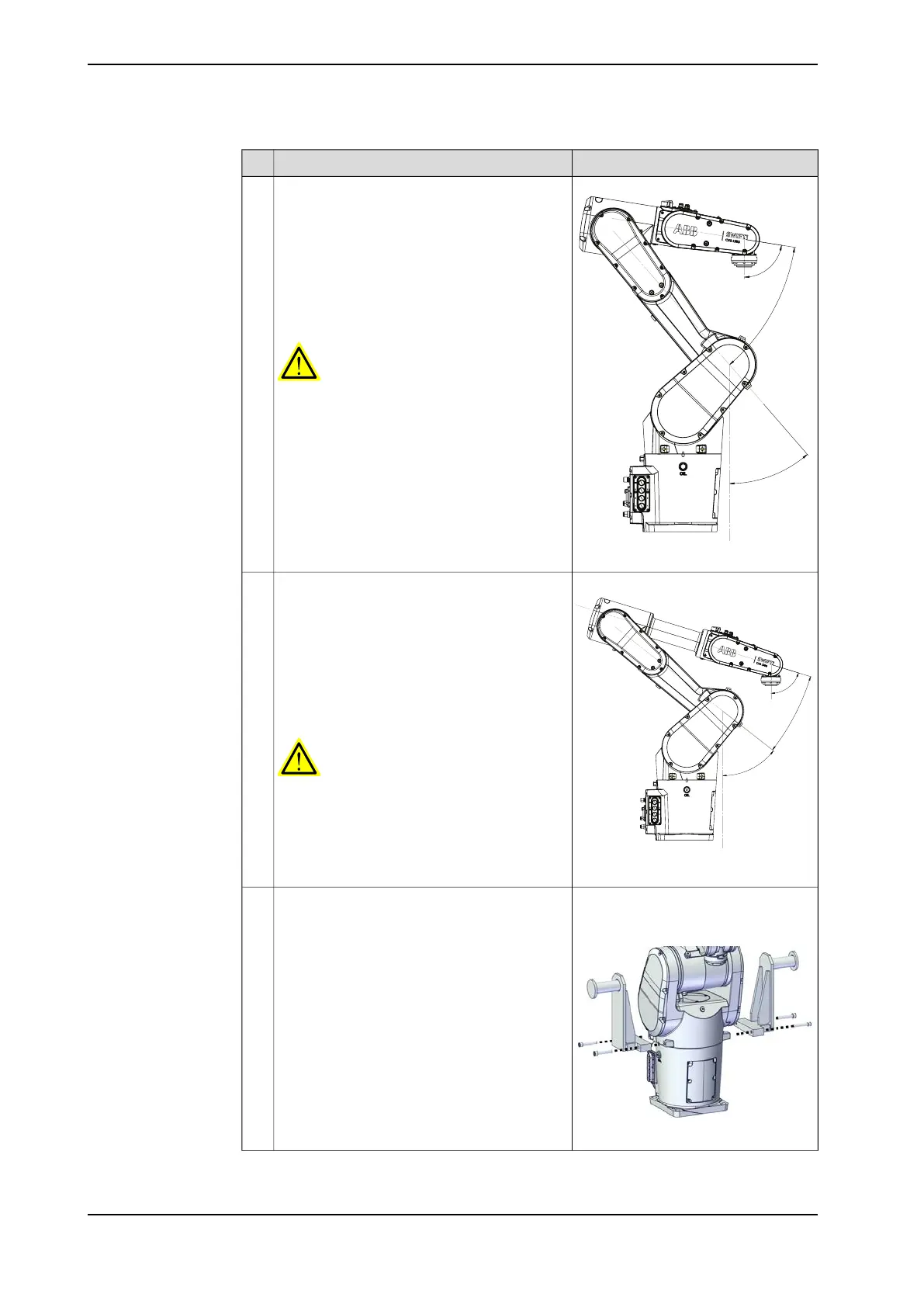

41°
40°
81°
xx2200000975
Valid for CRB 1300-10/1.15
Jog the robot to the specified position:
• Axis 1: 0°
• Axis 2: -41°
• Axis 3: 50°
• Axis 4: 0°
• Axis 5: 81°
• Axis 6: 0°
WARNING
The robot is mechanically unstable if not se-
cured to the foundation.
2
52°
21°
73°
xx2200000976
Valid for CRB 1300-7/1.4 and
Jog the robot to the specified position:
• Axis 1: 0°
• Axis 2: -52°
• Axis 3: 69°
• Axis 4: 0°
• Axis 5: 73°
• Axis 6: 0°
WARNING
The robot is mechanically unstable if not se-
cured to the foundation.
3
Lifting accessory, robot: 3HAC077885-
001
Fit the lifting tools to the robot.
Use the enclosed screws.
4
Tightening torque: 15 Nm
xx1900001594
Continues on next page
