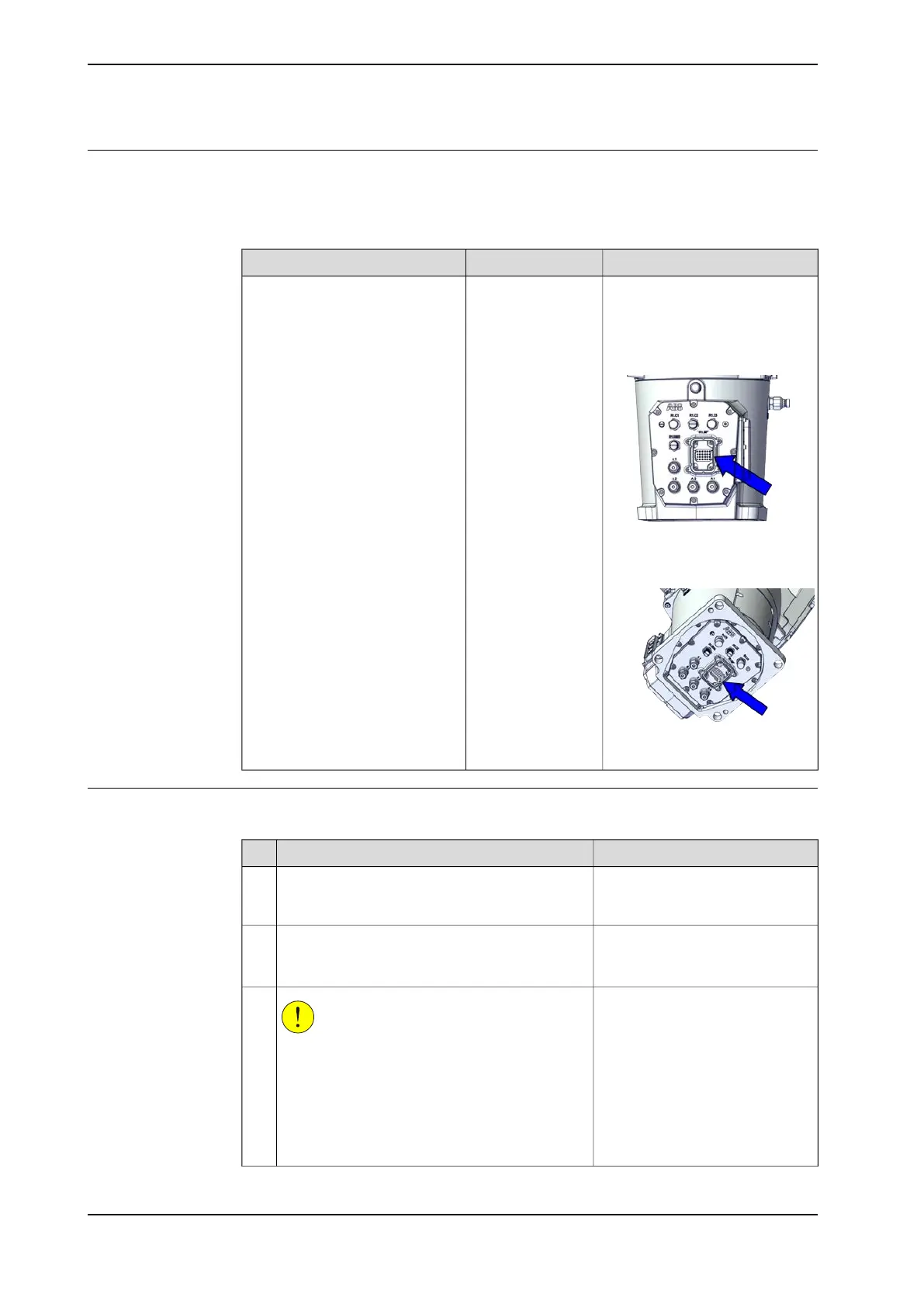

Installation of extra O-rings
For robots with protection class IP67 (option 3350-670)
An extra O-ring is delivered together with the robot and must be fitted to the robot
during installation.
NoteArticle numberEquipment
Used with protection class IP67.3HAB3772-19O-ring
Used to seal between the main
power cable and connector.
Robots with manipulator cables
routed from the rear of the base:
xx2000002338
Robots with manipulator cables
routed from below (3309-1):
xx2000002339
Securing a floor mounted robot
Use this procedure to orient and secure the robot floor mounted.
NoteAction
Make sure the installation site for the robot con-
forms to the specifications in section Technical
data on page 36.
1
The hole configuration of the base
is shown in the figure in Hole con-
figuration, base on page 70.
Prepare the installation site with attachment holes.
The foundation surface must be clean and un-
painted.
2
CAUTION
The weight of the CRB 1300 robot is
CRB 1300-11/0.9: 75 kg
CRB 1300-10/1.15: 77 kg
CRB 1300-7/1.4: 79 kg
All lifting accessories used must be sized accord-
ingly.
3
Continues on next page
68 Product manual - CRB 1300
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
3 Installation and commissioning
3.3.3 Orienting and securing the robot
Continued
