ABB CRB 1300 - Page 81

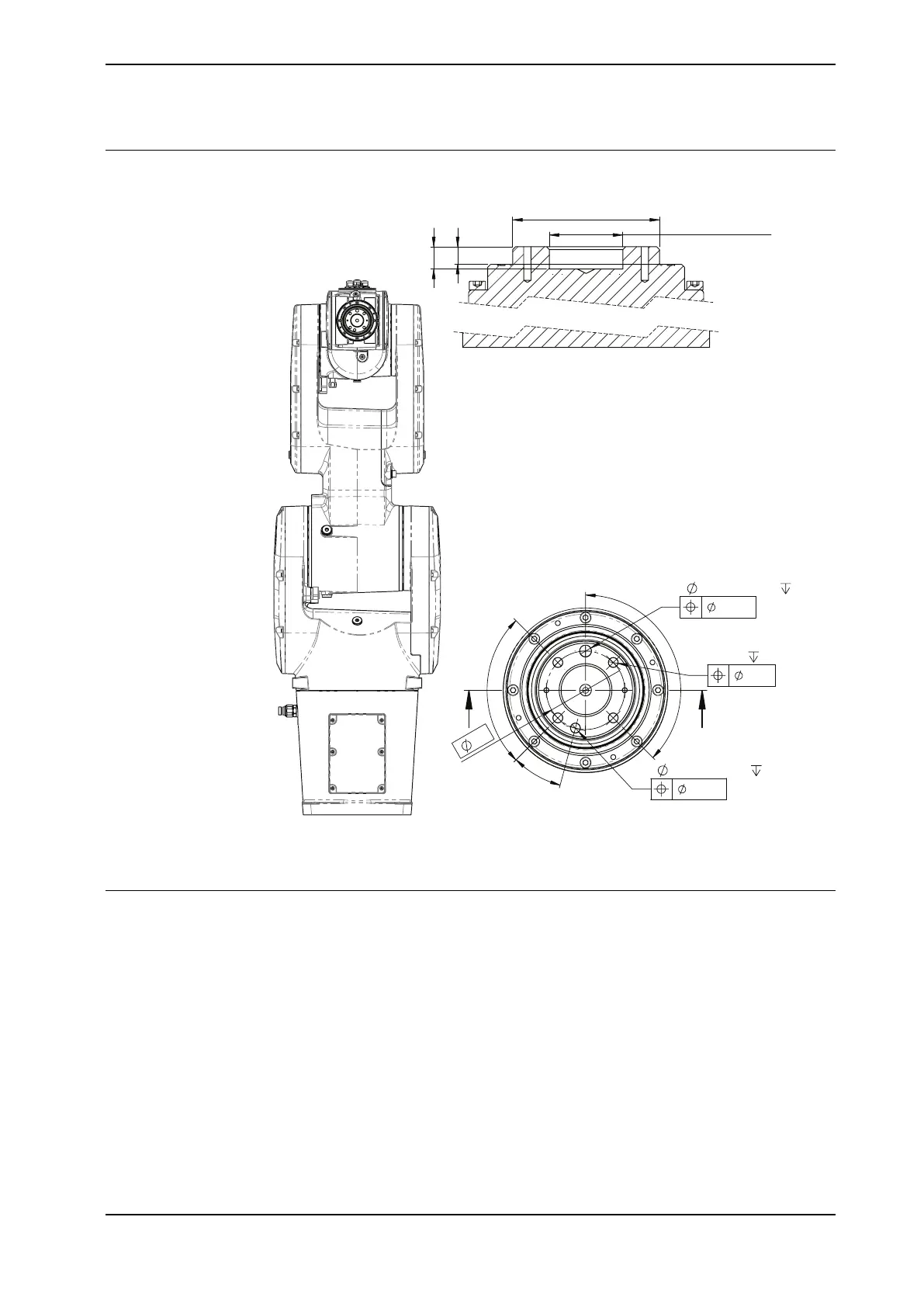

Tool flange standard
G
SECTION P-P
30°
(4
)x90°
135°
5 H7
+ 0,012
0 6
40
6 H7
+ 0,015
0 9
4xM6
9
PP
0.04
0.04
0.2
7,6
6
50 h7 -
0
0,025
25
H7 + 0,021
0
DETAIL G
xx2200000988
Fastener quality
When fitting tools on the tool flange, only use screws with quality 12.9. For other
equipment use suitable screws and tightening torque for your application.
Product manual - CRB 1300 81
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
3 Installation and commissioning
3.3.6 Fitting equipment on the robot (robot dimensions)
Continued
