NoteAction

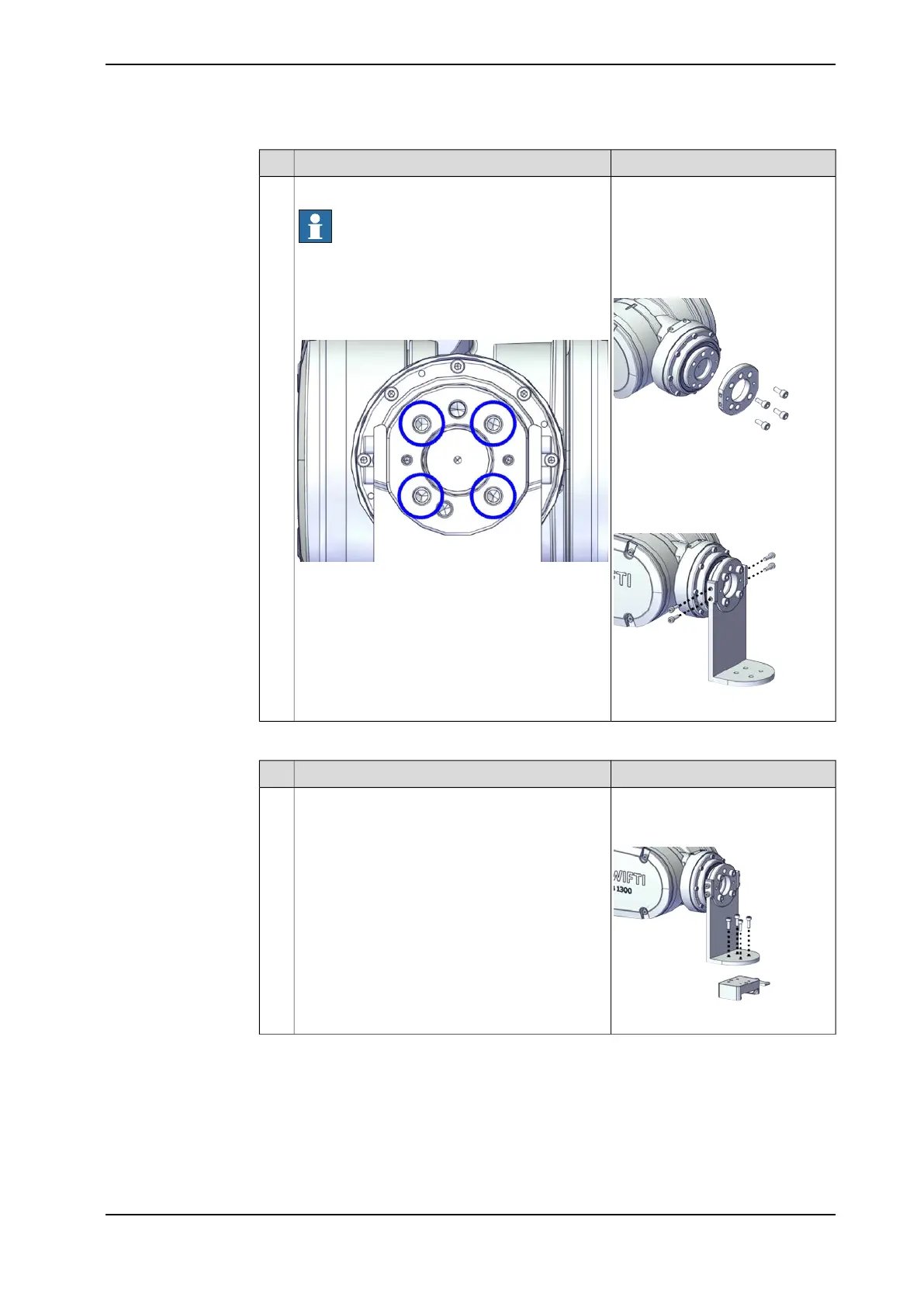

Following figures illustrate installa-
tion of the offered L-shape adapter
(option 3314-1).
Install the adapter to mounting flange.
Note
Secure the adapter to the tool flange using the
screw holes circled in the following figure if there
are no other tools to be fitted. Otherwise, the tools
should use these holes as via holes to be fitted
to the robot.
xx2200000990
4
Specification and tightening torque
of screws fixing the adapter to the
tool flange vary according to actual
applications.
xx2200000991
Screw: M4x12 12.9 Lafre
2C2B/FC6.9 (4 pcs)
Tightening torque: 2.6 Nm
xx2200000992
Installing the lead-through device
NoteAction
Screw: M4x12 12.9 Lafre
2C2B/FC6.9 (4 pcs)
Install the device base to the adaptor.1
Tightening torque: 2.6 Nm
xx2200000993
Continues on next page
Product manual - CRB 1300 85
3HAC083111-001 Revision: B
© Copyright 2022-2023 ABB. All rights reserved.
3 Installation and commissioning
3.3.7 Installation of lead-through device
Continued
