244 PROFIsafe

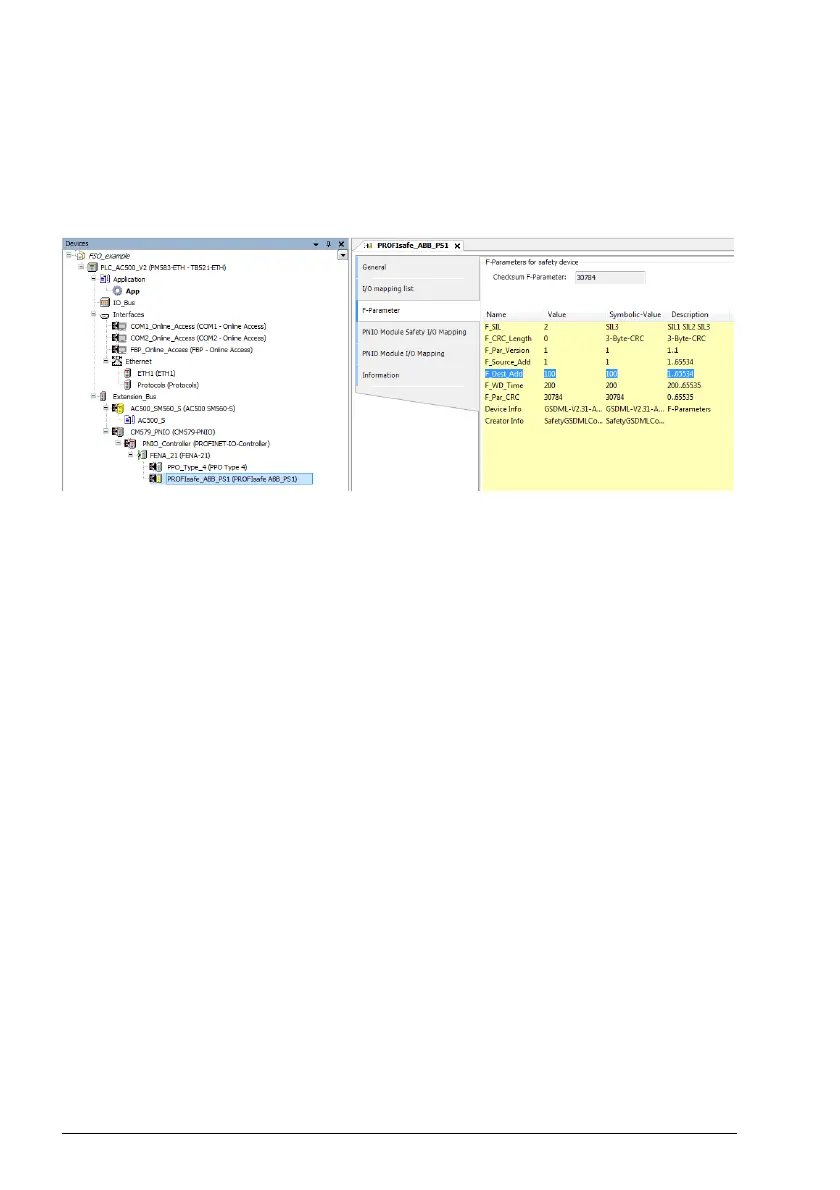

15. Define the PROFIsafe module properties:
• Select the PROFIsafe module PROFIsafe_ABB_PS1.
On the F-Parameter tab, modify the PROFIsafe safety parameters.
Three of the listed parameters can be modified for FENA:
• F_Source_Add is the address of the safety controller station (in this
example, AC500 SM560-S).
• F_Dest_Add is the address of the FENA module. This is defined by FSO
parameter PROFIsafe.11, see section Configuring the safety fieldbus
communication on page 318.
