Configuration 367
Note: The difference between the SLS limit and the corresponding SLS trip limit must
be at least 0.1 rpm.

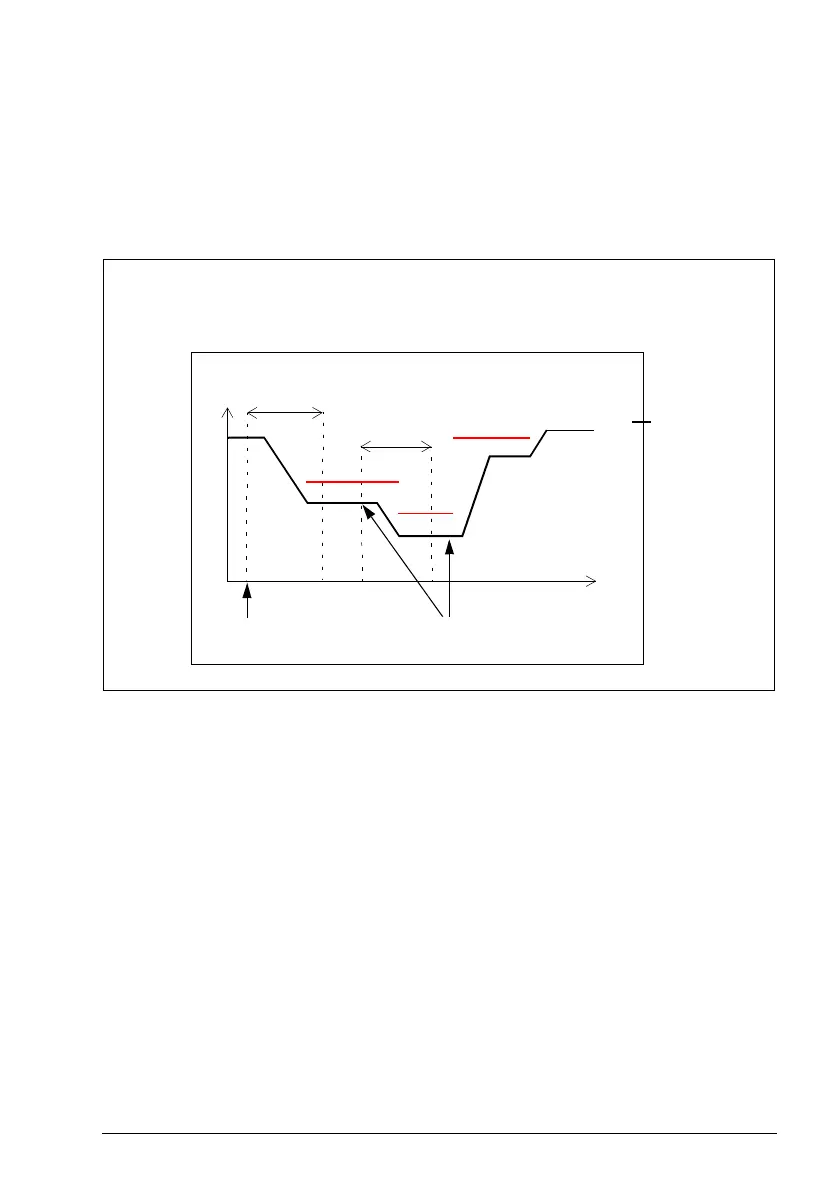

These values are defined in the safety program:
• only positive limits are scaled: Positive_Scaling = 0, Negative_Scaling = 1
• scaling values from the safety PLC: 70%, 50%, 100%
(value set in Variable_SLS_limit = 7000, 5000, 10000).
SLSx.51
= DO X113:7
200.53 = 1200 rpm
SLSx.43 = 1320 rpm
Speed
Time
Output
varSLS activated,
70% scaling
New scaling values from PLC:
50%, 100%
200.61 = Version 1
SLSx.03 = Time
SLSx.02 = Automatic
SLSx.04 = 2000 ms
