396 Configuration
this example, SLS1 function is used. Function-specific mute time is set long enough
to prevent the limit hit during acceleration.
• parameter FSOGEN.38 Enable SLSx mute times = Enabled
• parameter SLSx.17 Mute time for SLS1 = 1200 ms (function-specific)
This example also applies to:
• Trip limit hits in the SLS2…4 and Variable SLS functions when the SLSx mute
times are enabled with parameter FSOGEN.38 Enable SLSx mute times
• Trip limit hit in the SMS function when the SMS mute time (SMS.17) is enabled
with parameter FSOGEN.39 Enable SMS mute time.

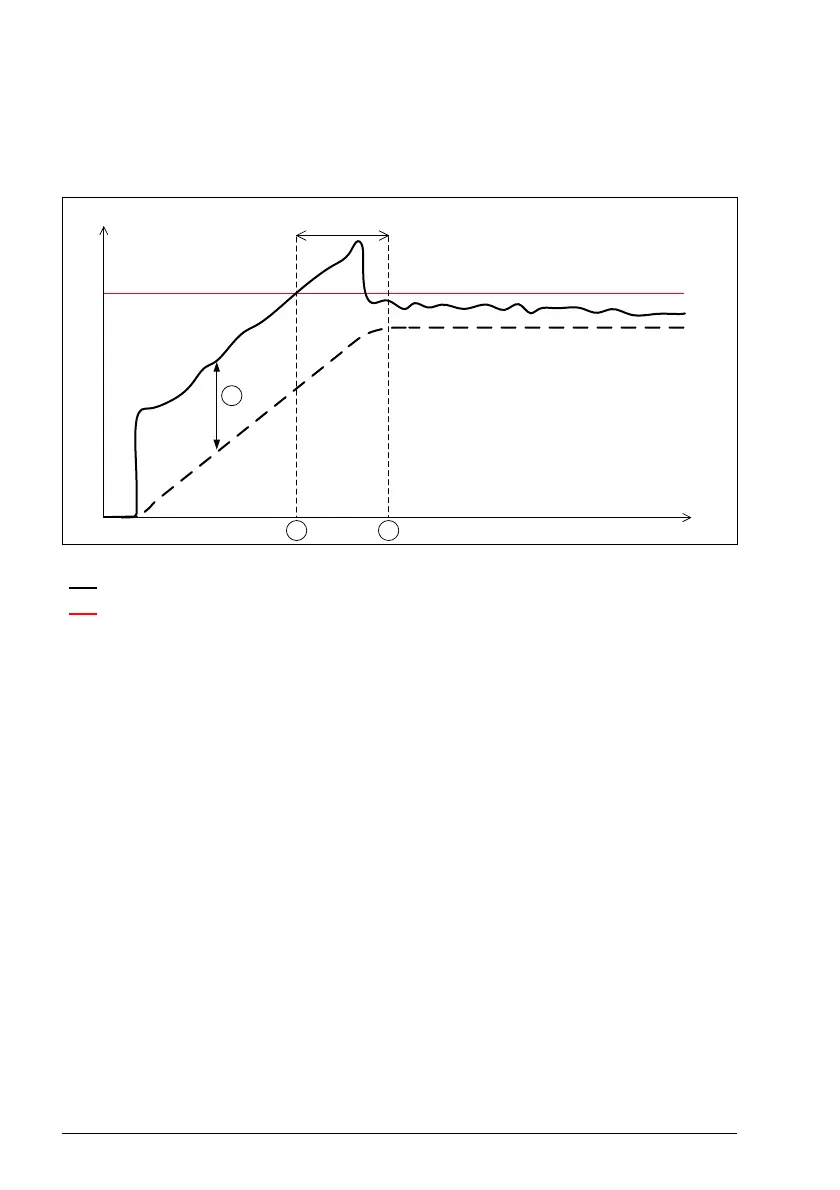

- - - Actual speed
Safe speed estimate
SLS1 trip limit positive SLSx.14
1 Amount of slip in safe speed estimate during acceleration
2 Safe speed estimate exceeds the SLS trip limit
3 Safe speed estimate returns below SLS trip limit before the mute time for SLS1 has
elapsed. SSE is not activated and drive continues normal operation.
