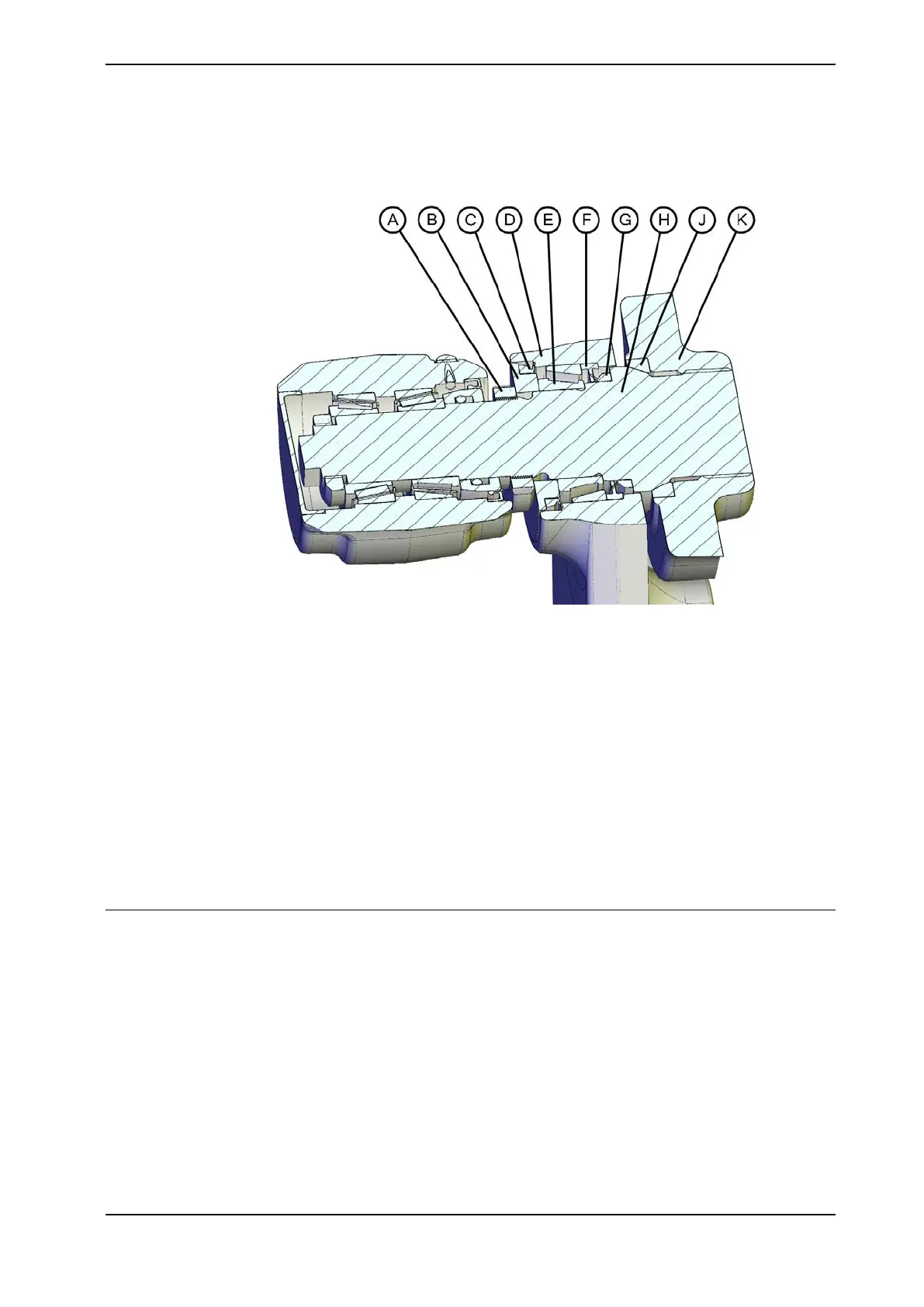

Design with support ring
xx1300000013
A Lock nut
B Support ring
C Sealing ring (V-ring)
D Lower arm
E Bearing
F T-ring
G Sealing ring (V-ring)
H Shaft
J Bushing
K Upper arm
Press tool, upper arm
The press tool upper arm is used to assemble T-ring and bearing in the upper arm.
For art. no. see Required equipment on page 213.
Continues on next page
Product manual - IRB 460 211
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.3 Replacing the upper arm
Continued
