NoteAction
xx1100000172

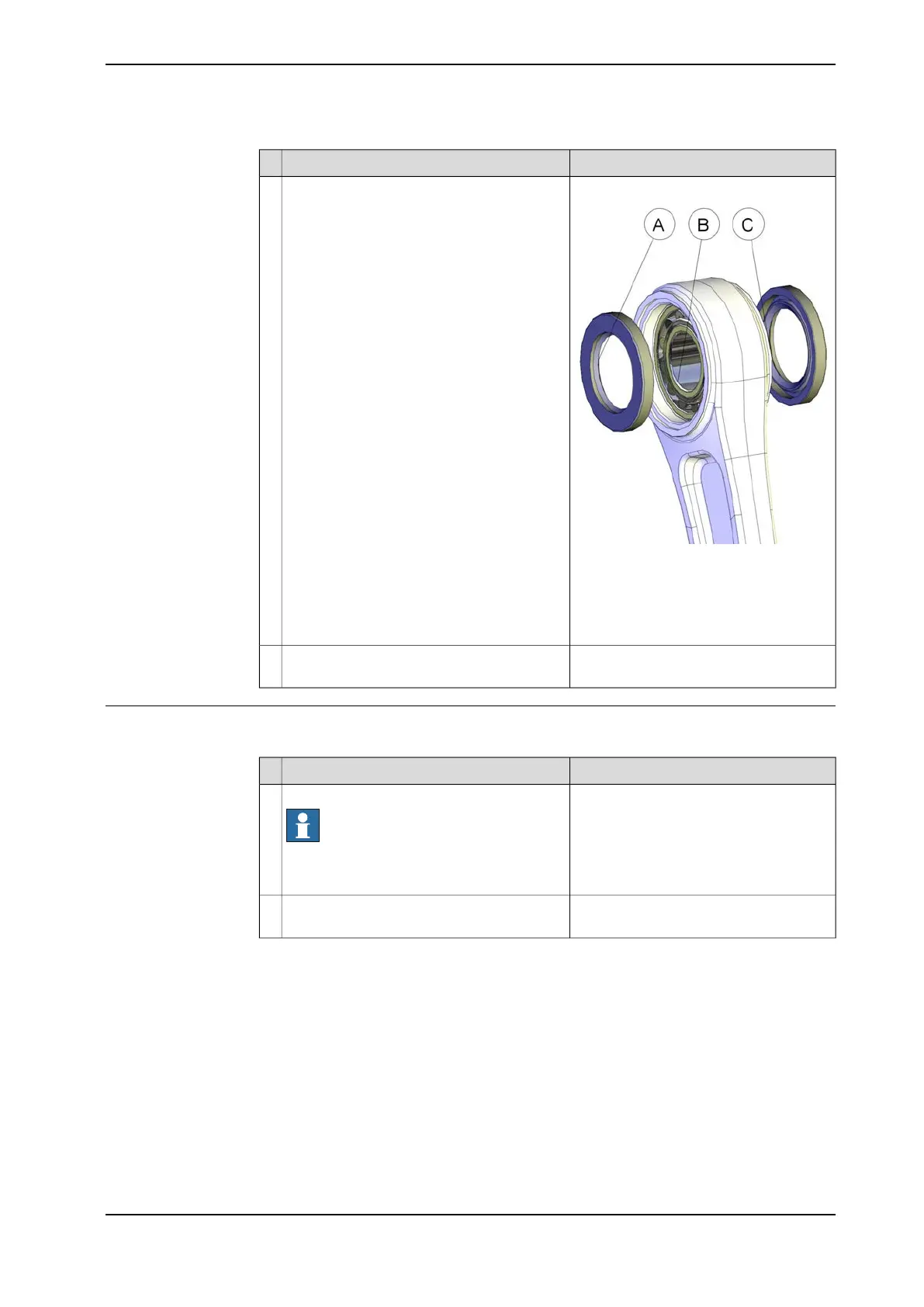

Remove the radial sealing rings.6
Parts:
A Radial sealing ring
B Bearing
C Radial sealing ring
Remove residual grease and sealing com-
pound.
7
Refitting the lower link arm
Use this procedure to refit the lower link arm.
NoteAction
Spare part no. is specified in Required
equipment on page 234.
If needed, replace the bearings.
Note
The bearings are sensitive for pushes. Make
sure they are not damaged!
1
For art. no. see Required equipment on
page 234.
Lubricate the bearings properly with bearing
grease.
2
Continues on next page
Product manual - IRB 460 237
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.5 Replacing linkage - lower link arm
Continued
