USER MANUAL | ICOS | INSTRUCTIONS | UM/ICOS-EN REV. B.2
The MIU outlet port is:
Open when the MIU is powered on
Open at initialization
Open and closes as specified on the
MIUtab
when the analyzer software has
properly initialized
While the MIU is operating, the current valve being sampled/referenced and its text
description is shown in the parameter window of the
User Interface Control Bar.
(Figure
93)
The description is:
Displayed on the parameter window of the
User Interface Control Bar
during
analysis. (Figure 93)
Saved to a data file

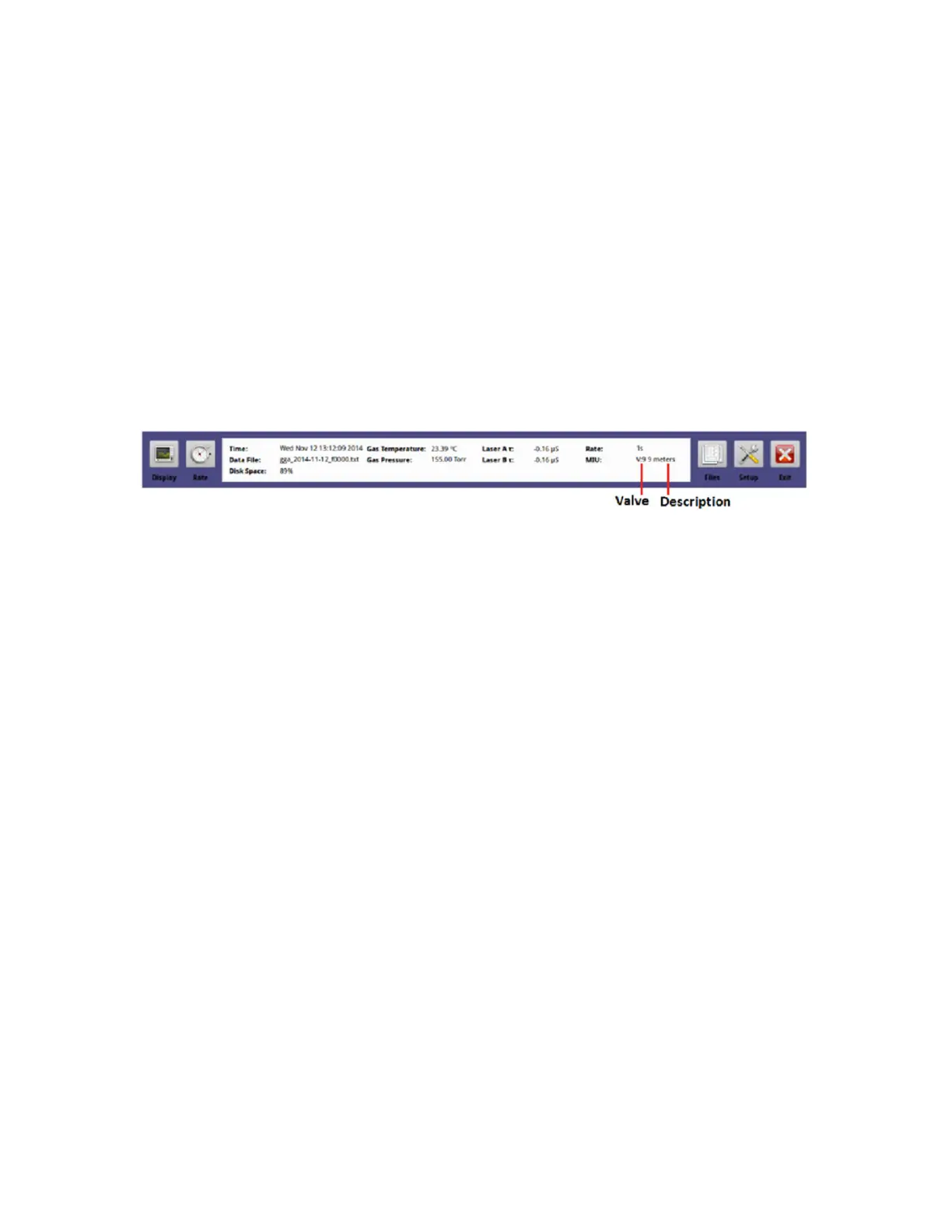

Figure 93: User Interface Control Bar (showing MIU information)
9. When sampling is complete, disable the MIU by returning to the
MIU screen
, and
uncheck the MIU Enable check box. (Figure 92)
