Appendix H: Batch Mode Operation
The analyzer can be factory equipped to include a batch injection system. The batch
system allows the user to manually introduce individual samples to the analyzer, using
syringe injection.

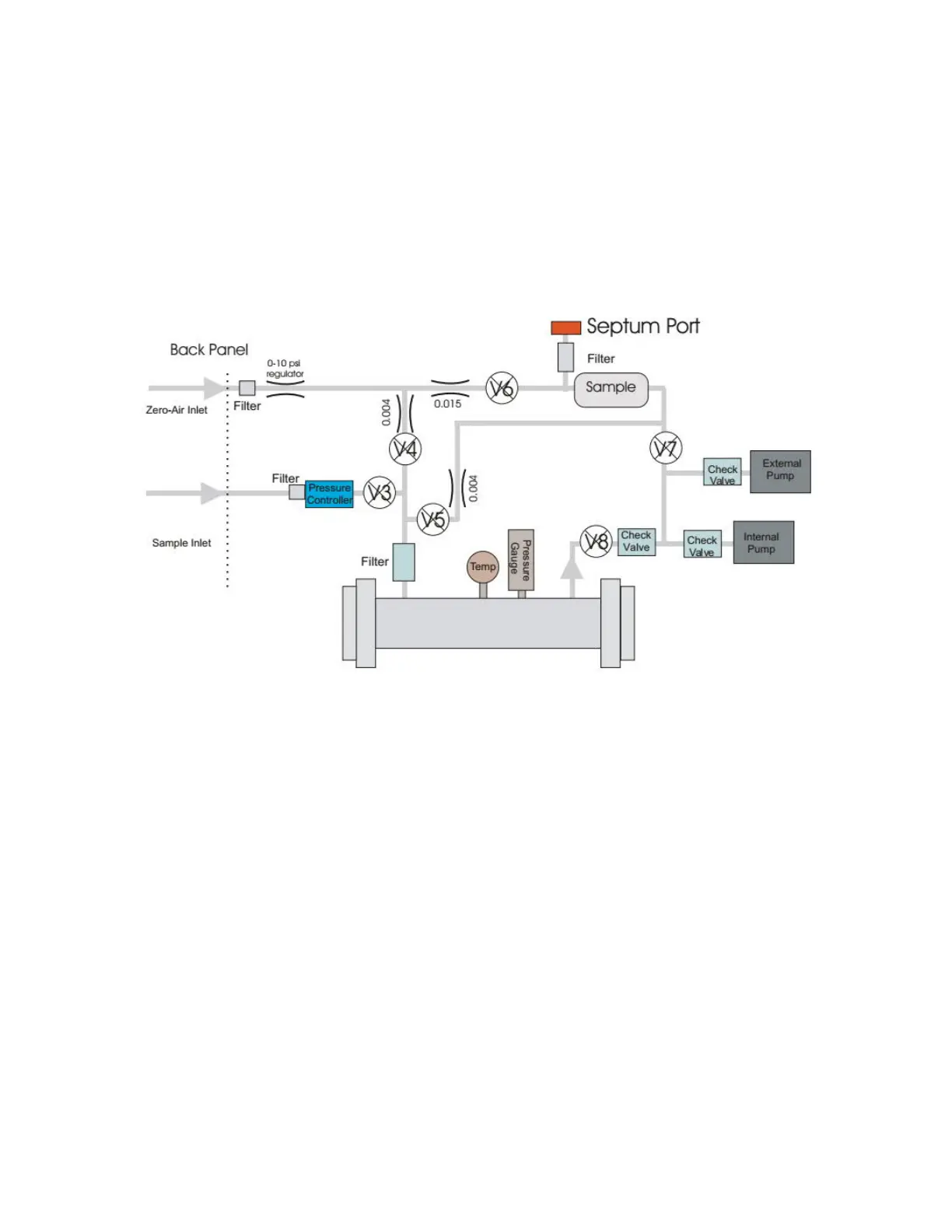

Figure 105 shows the plumbing configuration for the optional batch mode.
Figure 105: Batch Injection Plumbing Diagram
Accessories Required for Batch Injection
The necessary hardware and supplies for batch mode operation include:
 An external pump (ACC DP3H)
o Pump slave power cord
o Pump connection kit
 Additional ports on the front and back panels of the analyzer. (Figure 106)
o Syringe injection port (front panel)
o Zero-air inlet 1/4” Swagelok port (back panel)
 A 140mL Syringe with needle
 A 22-gauge centering needle
 Septa (Box of 50)
 A septum puller
