Replace the Power Inlet Fuse
If the fuse on the power inlet blows or is otherwise damaged, the analyzer shuts down. To
replace the fuse:
1. Unplug the analyzer.
2. On the back panel of the analyzer, locate the fuse above the power inlet. (Figure 53)

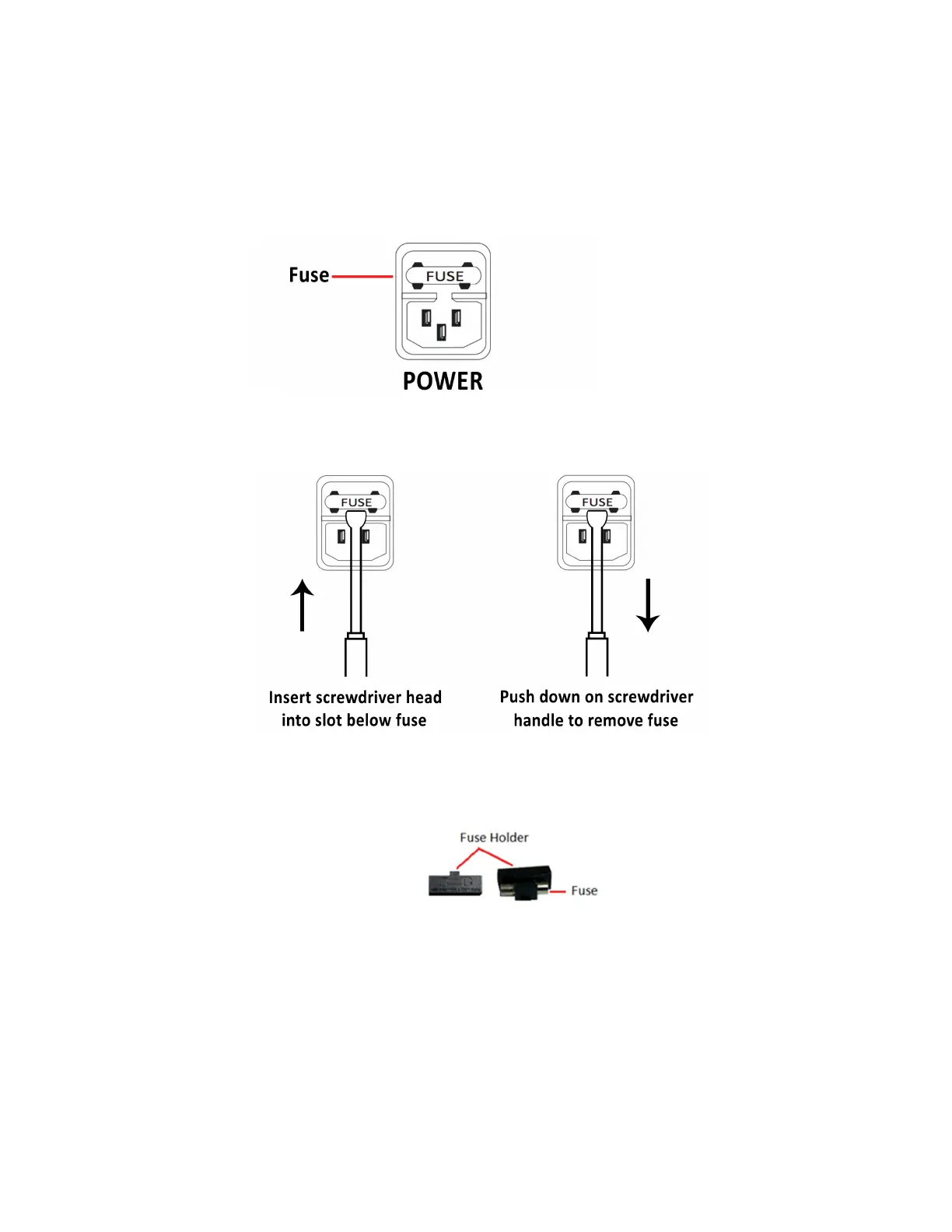

Figure 53: Analyzer Fused Inlet
3. Use a flathead screwdriver to remove the fuse.
a. Insert the head of the screwdriver into the slot below the fuse. (Figure 54)
Figure 54: Remove the Fuse
b. Push down on the screwdriver handle to remove the fuse holder from the power
inlet.
c. Remove the fuse from the fuse holder. (Figure 55)
Figure 55: Remove the Fuse from the Fuse Holder
4. Insert a new fuse into the fuse holder.
5. Re-insert the holder into the power inlet. Push it in until you hear a click.
6. Plug the power cord into the back panel of the analyzer.
7. Resume analyzer operation.
