2 Mount the Analyzer

Mounting Specifications

This section provides the weight and dimensions of the analyzer related to rack mounting.

Figure 14 shows the mounting-hole dimensions.

External Dimensions:

19.5”H x 19”W x 34”D

Weight:

68 kg

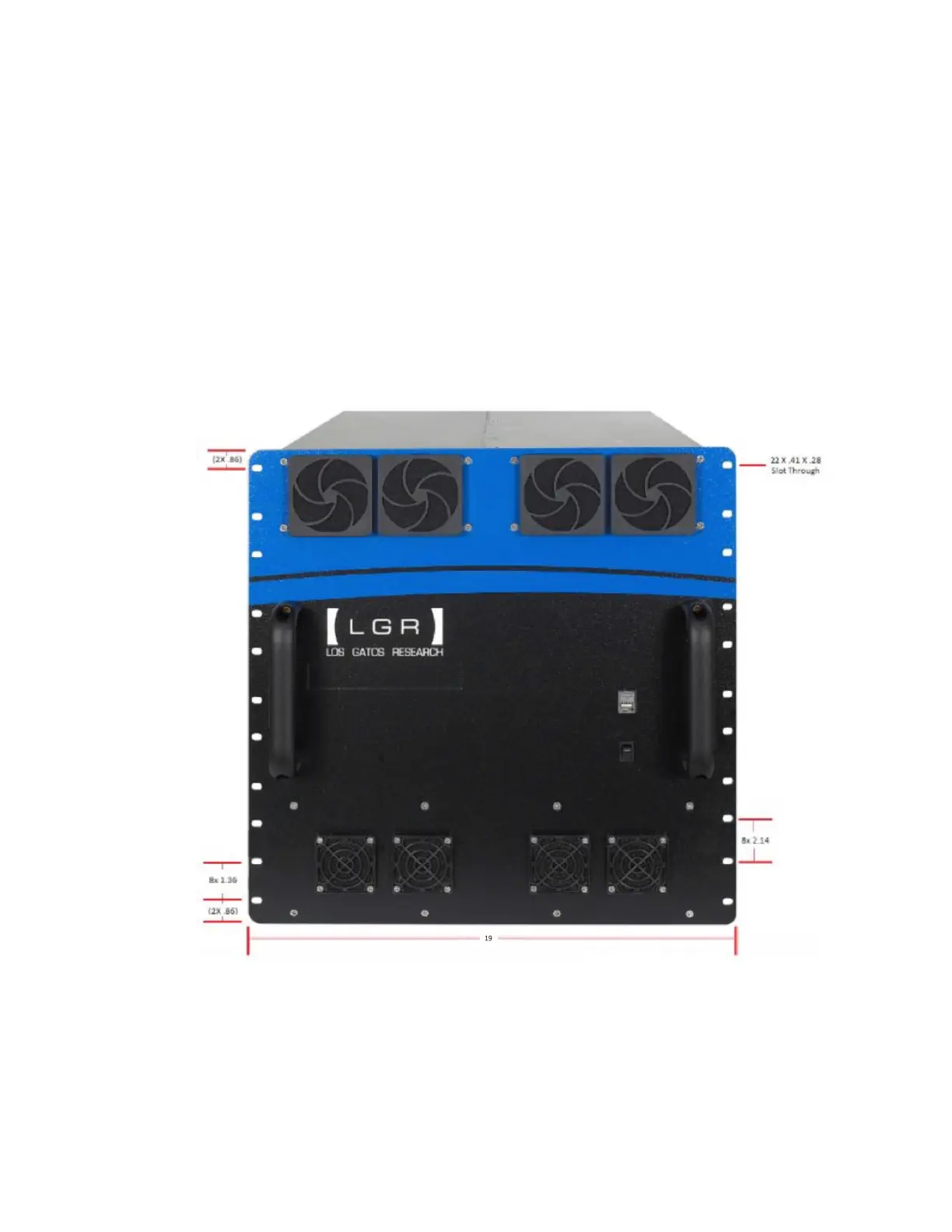

Figure 14: Front Panel Dimensions and Mounting Holes
