USER MANUAL | ICOS | INSTRUCTIONS | UM/ICOS-EN REV. B.2
16

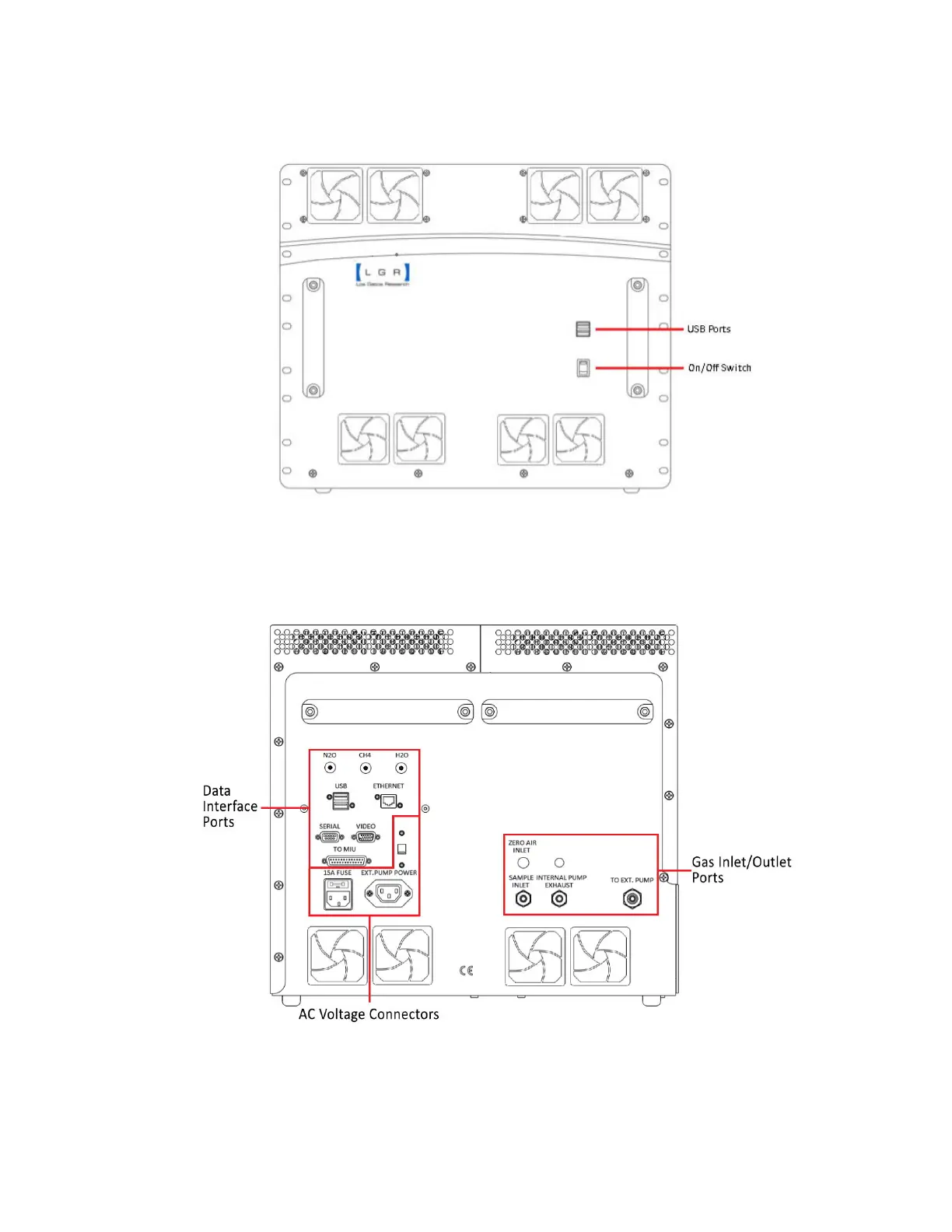

Figure 2 shows the front panel of the GLA351 Series.
Figure 2: Front Panel
Figure 3 shows the back of the GLA351 Series analyzers with connections. Port locations
may vary for different analyzer types.
Figure 3: Back Panel (GLA351-N2OM1)
