USER MANUAL | ICOS | INSTRUCTIONS | UM/ICOS-EN REV. B.2
8. Each step is displayed in the lower-right panel of the calibration screen as the
analyzer performs the calibration. Figure 42 shows the calibration process as a flow
chart.

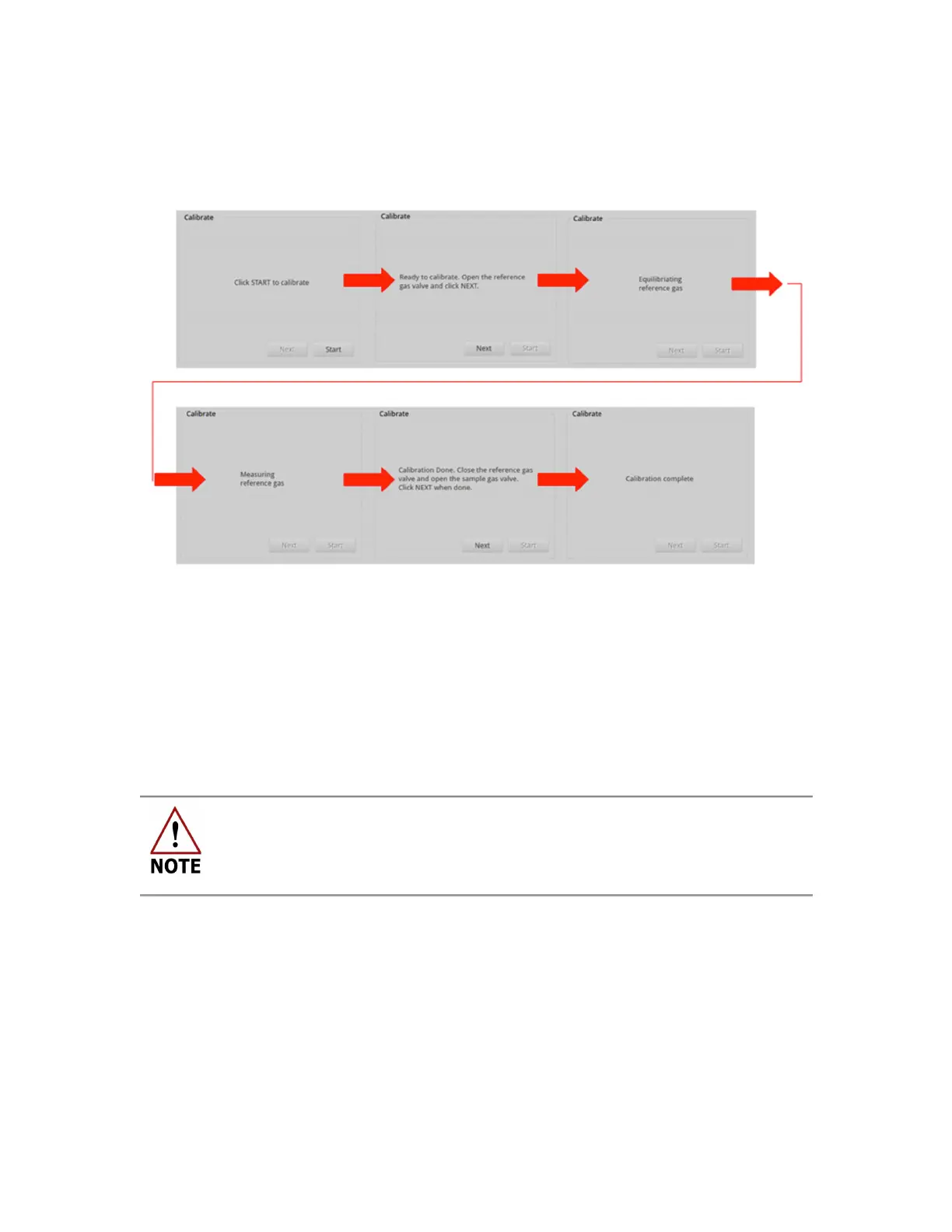

Figure 42: Calibration Flow
9. When the
Calibration Complete
message is displayed, click the CLOSE button.
10. Enter
TimeChart
by selecting the Display button on the
User Interface Control Bar
,
and verify that the displayed concentration correctly corresponds to your local gas
standard.
11. Repeat steps 1-10 for each gas you want to calibrate.
The time of latest calibration is stored in
Reference Gas Settings
within
the
Calibration
menu for future reference.
