ABB NextMove e100 User Manual

C-2 CE & Environmental Guidelines MN1941WEN
C.1.3 Use of CE compliant components
The following points should be considered:
 Using CE approved components will not guarantee a CE compliant system!
 The components used in the controller, installation methods used, materials selected for
interconnection of components are important.
 The installation methods, interconnection materials, shielding, filtering and earthing /
grounding of the system as a whole will determine CE compliance.
 The responsibility of CE mark compliance rests entirely with the party who offers the end
system for sale (such as an OEM or system integrator).
C.1.4 EMC installation suggestions
To ensure electromagnetic compatibility (EMC), the following installation points should be
considered to help reduce interference:
 Earthing/grounding of all system elements to a central earth/ground point (star point).
 Shielding of all cables and signal wires.
C.1.5 Wiring of shielded (screened) encoder cables

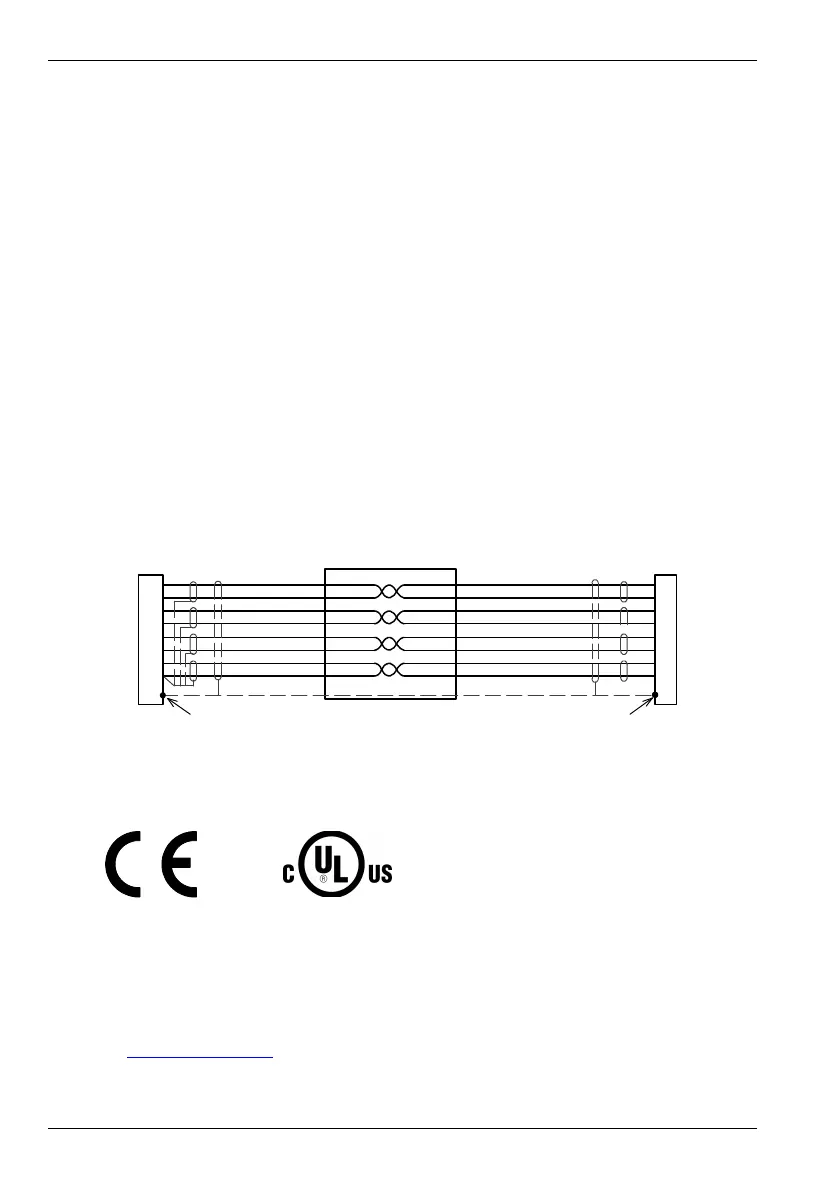

Figure 43: Encoder signal cable grounding
C.2 Marks
NextMove e100 is UL listed; file NMMS.E195954.
C.2.1 RoHS Compliance
NextMove e100 is in conformity with Directive 2011/65/EU of the European parliament and of
the council of 8th June 2011 on the restriction of the use of certain hazardous substances in
electrical and electronic equipment. The RoHS declaration 3AXD10000429159 is available
on www.abb.com/drives
.
1
6
2
7
3
8
9
5
NextMove e100
X5 / X6 / X7
CHA+
CHA-
CHB+
CHB-
CHZ+
CHZ-
+5V
GND
Twisted pairs
Connect overall shield to
connector backshell
Connect overall shield to
connector backshell
Cable
Encoder Connector
Housing
