MN1941WEN Input / Output 4-33
4.9 Connection summary - minimum wiring (remote axis)
As a guide, Figure 32 shows an example of the typical minimum wiring required to allow the
NextMove e100 and a single axis EPL servo amplifier (e.g. MicroFlex e100) to work together.
Details of the connector pins are shown in Table 3.

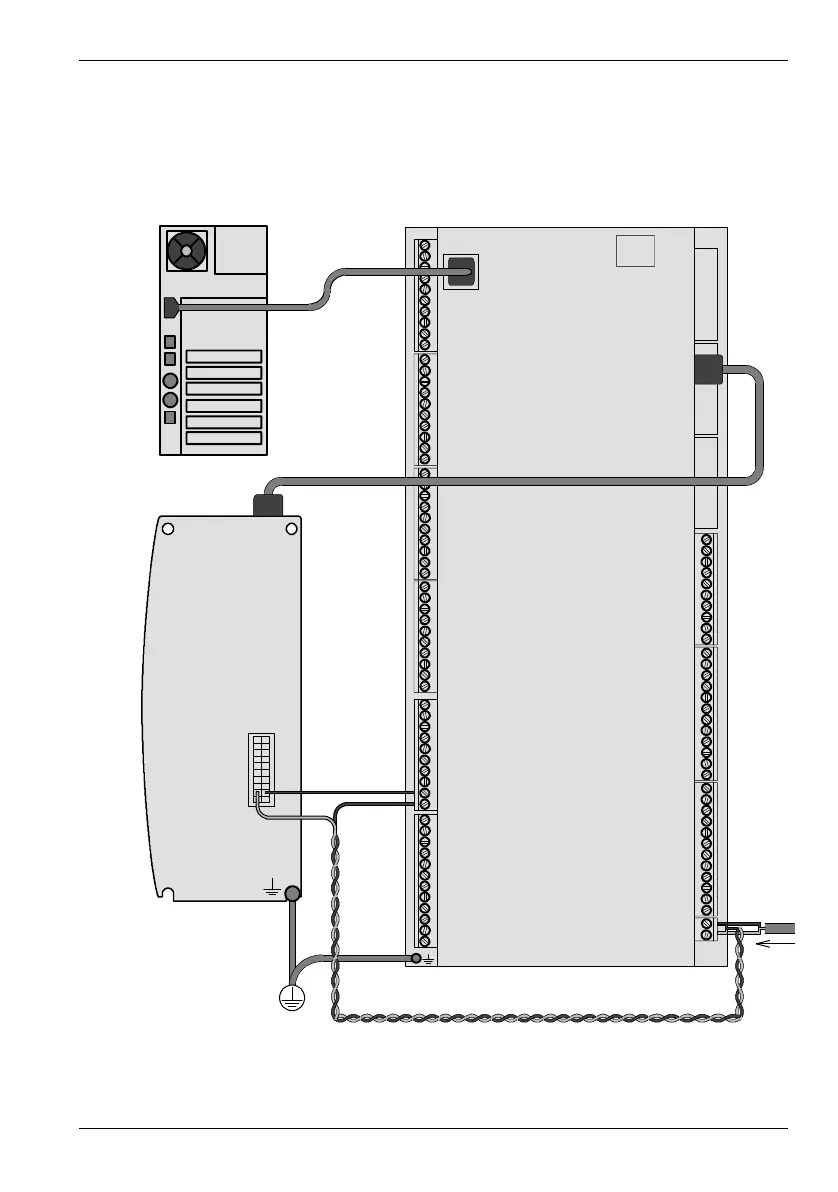

Figure 32: Example minimum system wiring
+24V
0V
X1
9
10
X12
USB
Host PC
NextMove e100
Common earth/
ground
+24 V
control
supply
Drive
Enable
USB connection
Ethernet
Remote (EPL)
servo amplifier
(MicroFlex e100)
E1 / E2
Ethernet
