ABB NextMove e100 User Manual

4-18 Input / Output MN1941WEN

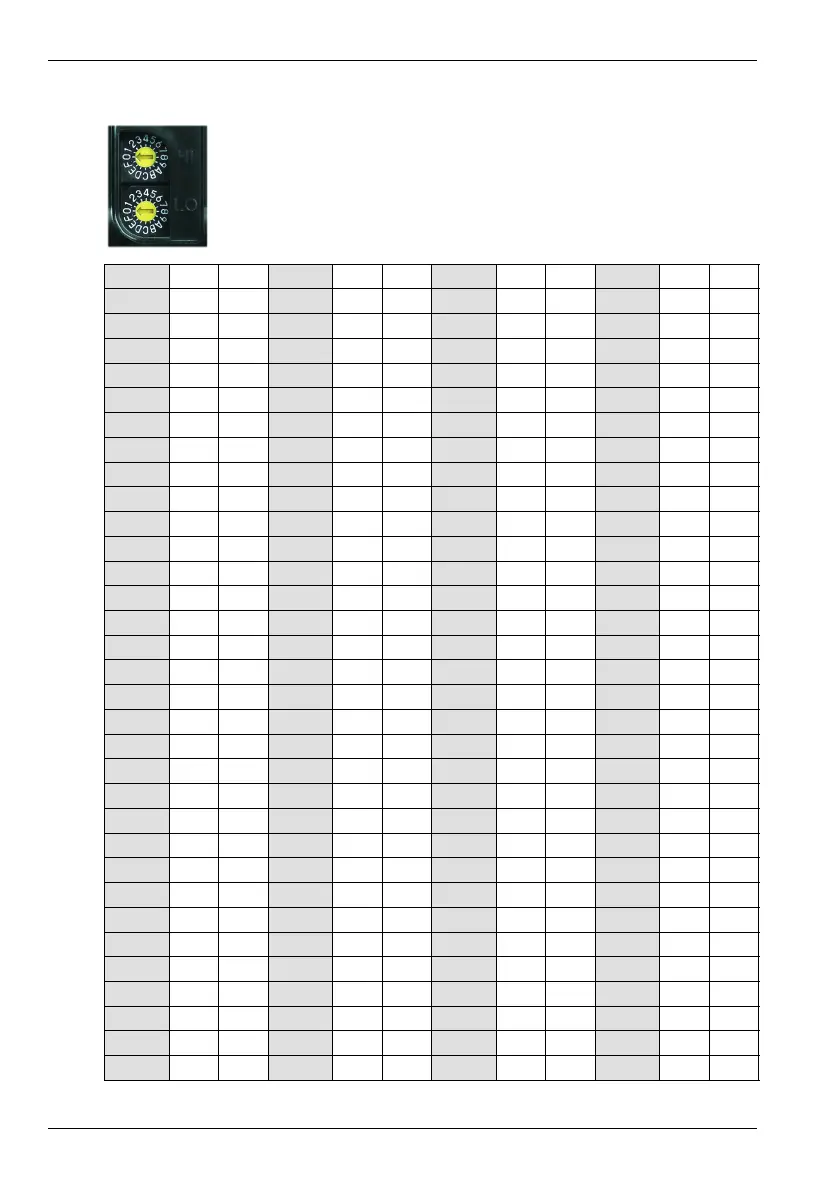

4.4.2 Node ID selector switches
The NextMove e100 has two selector switches which determine the unit’s
node ID on EPL networks. Each switch has 16 positions, allowing selection
of the hexadecimal values 0 - F. In combination, the two switches allow
values of 0 - 255 (hexadecimal FF) to be selected. The switch labeled ‘HI’
sets the high nibble (half byte), and the switch labeled ‘LO’ sets the low
nibble. The following table lists all node IDs from 0 to 255 with the equivalent
HI and LO switch settings:
Node ID HI LO Node ID HI LO Node ID HI LO Node ID HI LO
0 00 64 40 128 80 192 C0
1 01 65 41 129 81 193 C1
2 02 66 42 130 82 194 C2
3 03 67 43 131 83 195 C3
4 04 68 44 132 84 196 C4
5 05 69 45 133 85 197 C5
6 06 70 46 134 86 198 C6
7 07 71 47 135 87 199 C7
8 08 72 48 136 88 200 C8
9 09 73 49 137 89 201 C9
10 0A 74 4A 138 8A 202 CA
11 0B 75 4B 139 8B 203 CB
12 0C 76 4C 140 8C 204 CC
13 0D 77 4D 141 8D 205 CD
14 0E 78 4E 142 8E 206 CE
15 0F 79 4F 143 8F 207 CF
16 10 80 50 144 90 208 D0
17 11 81 51 145 91 209 D1
18 12 82 52 146 92 210 D2
19 13 83 53 147 93 211 D3
20 14 84 54 148 94 212 D4
21 15 85 55 149 95 213 D5
22 16 86 56 150 96 214 D6
23 17 87 57 151 97 215 D7
24 18 88 58 152 98 216 D8
25 19 89 59 153 99 217 D9
26 1A 90 5A 154 9A 218 DA
27 1B 91 5B 155 9B 219 DB
28 1C 92 5C 156 9C 220 DC
29 1D 93 5D 157 9D 221 DD
30 1E 94 5E 158 9E 222 DE
31 1F 95 5F 159 9F 223 DF
