5.7.4 Critically damped response
If the graph shows that the response reaches the demand quickly and only overshoots the
demand by a small amount, this can be considered an ideal response for most systems.
See Figure 40.

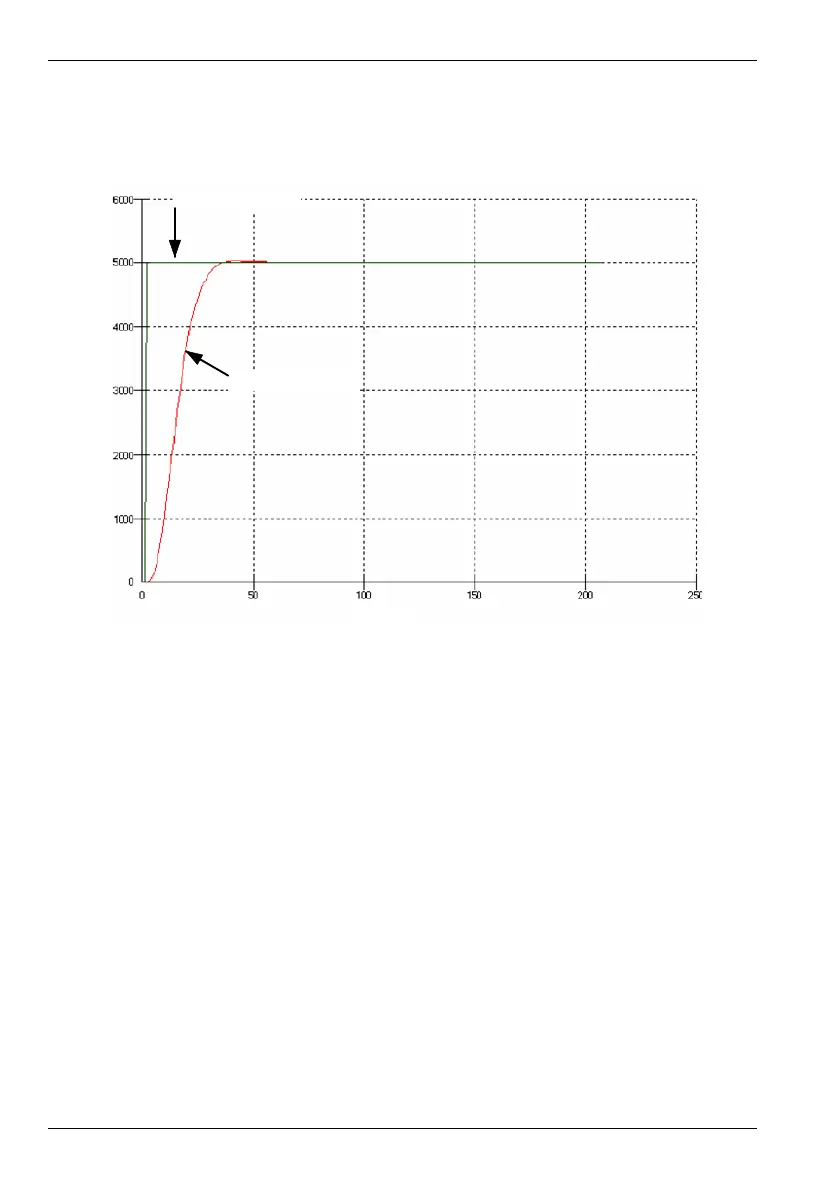

Figure 40: Critically damped (ideal) response
Measured position
Demand position
Time(ms)
