5-40 Operation MN1941WEN

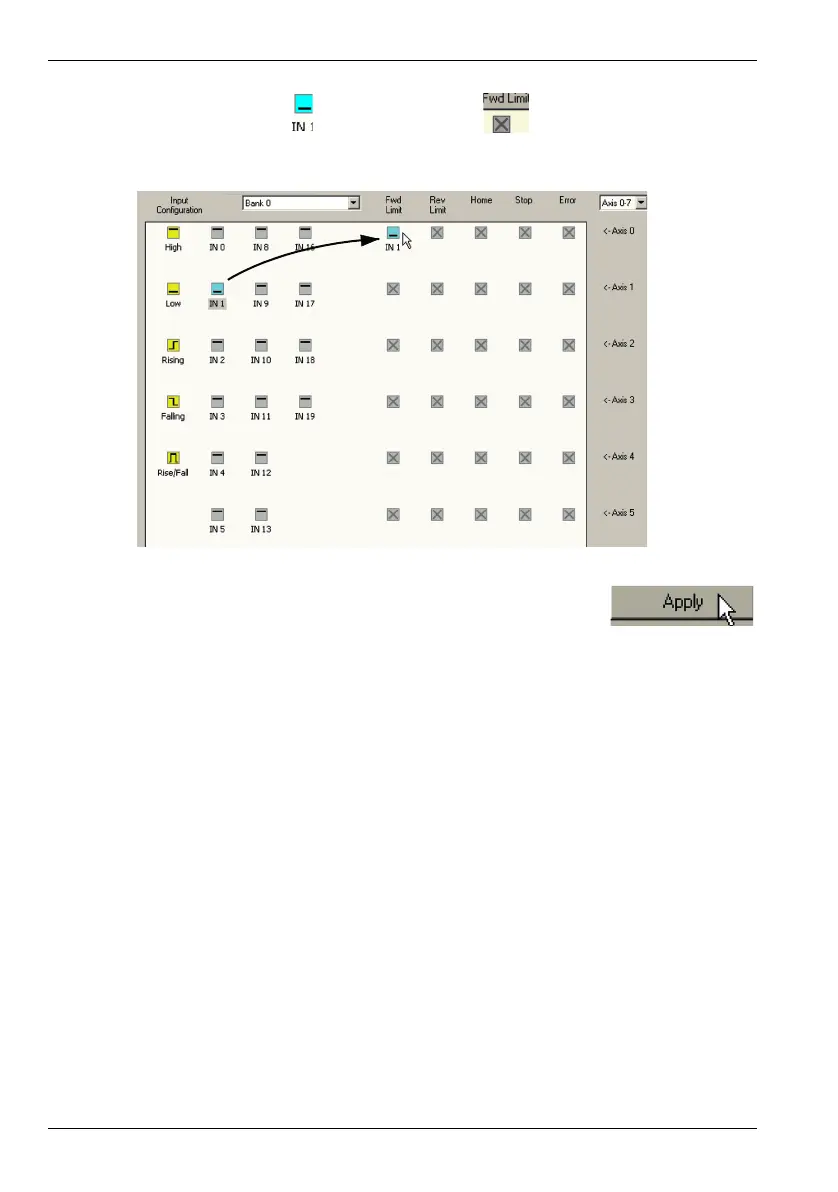

4. Now drag the IN1 icon onto the Fwd Limit ico n .
This will setup IN1 as the Forward Limit input of axis 0.
5. Click Apply to send the changes to the NextMove e100.
Note: If required, multiple inputs can be configured before
clicking Apply.
5.10.2 Digital output configuration
The Digital Outputs tab allows you to define how each digital output will operate and if it is to
be configured as a drive enable output (see section 5.4.5). Remember to click Apply to send
the changes to the NextMove e100.
