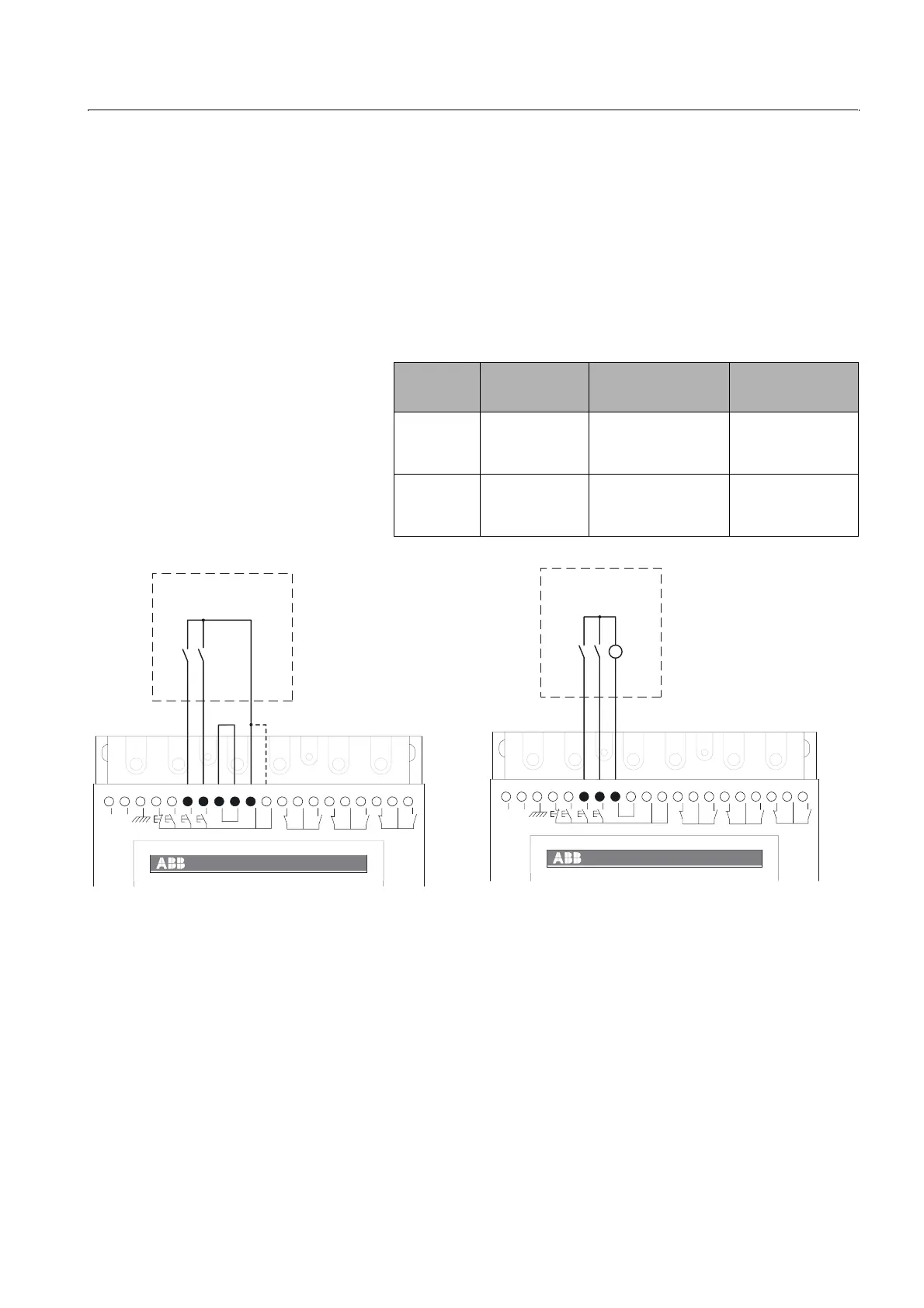

The softstarter has two programmable inputs, In0 and In1.
They can be used for different purposes depending on the
selected function, independently of each other.
3DUDPHWHU
WH[W
'HIDXOWYDOXH 6HWWLQJUDQJH 'HVFULSWLRQ
In0 Reset None, Reset,
Enable, Jog, DOL,
Start2
Function of pro-
grammable input
In0
In1 Reset None, Reset,
Enable, Jog, DOL,
Start3
Function of pro-
grammable input
In1
1234567891011121314151617181920
100-250V
L
N
Stop
Start
In1 Vc Vn Vp Vp
K4
In0
50/60 Hz
K5 K6
)
LJXUH ,QWHUQDOFRQWUROYROWDJH
DC
+
-
1234567891011121314151617181920
100-250V
L
N
Stop
Start
In1 Vc Vn Vp Vp
K4
In0
50/60 Hz
K5 K6
)LJXUH ([WHUQDOFRQWUROYROWDJH
