ABB RER670 - Page 76

1
18
19
7
6
5
4
3
2
8
20
21
22
17
16151413121110
9
23
24
IEC15000157-2-en.vsd
IEC15000157 V2 EN-US

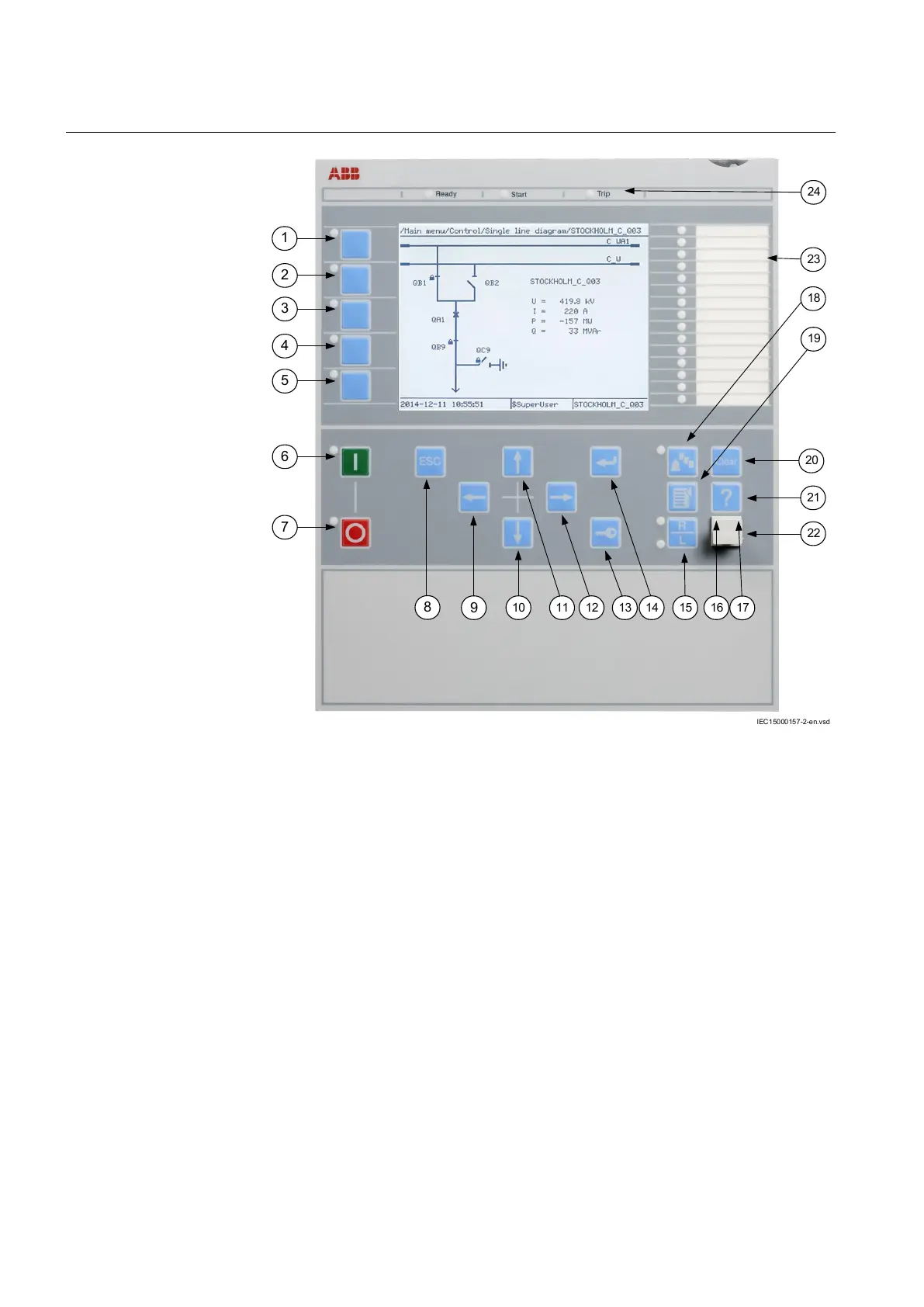

Figure 27: LHMI keypad with object control, navigation and command push-
buttons and RJ-45 communication port
1...5 Function button
6 Close
7 Open
8 Escape
9 Left
10 Down
11 Up
12 Right
13 Key
14 Enter
15 Remote/Local
16 Uplink LED
17 Not in use
18 Multipage
19 Menu
Section 5 1MRK 506 375-UEN A
Local HMI
70 Railway application RER670 2.2 IEC
Application manual
