ABB TRIO-20.0-TL-OUTD-S-US-480

- 15 -
T004CC1
1- Introduction and safety
POWER ALARM GFI ESC UP DOWN ENTER
TRIO
Wiring box congurations available
TRIO-20/27.6-TL-OUTD-S1A-US-480
DC Disconnect Switch
8 string DC Input Fuses
Class II DC Surge Protection
Class II AC Surge Protection
TRIO-20/27.6-TL-OUTD-S1A-US-480-A
DC Disconnect Switch
8 string DC Input Fuses
Class II DC Surge Protection
Class II AC Surge Protection
Integrated PV AFCI Type 1 device for arc fault detection (AFD)
TRIO-20/27.6-TL-OUTD-S1B-US-480
DC Disconnect Switch
8 string DC Input Fuses
Class II DC Surge Protection
AC Fused Disconnect Switch
TRIO-20/27.6-TL-OUTD-S1B-US-480-A
DC Disconnect Switch
8 string DC Input Fuses
Class II DC Surge Protection
AC Fused Disconnect Switch
Integrated PV AFCI Type 1 device for arc fault detection (AFD)

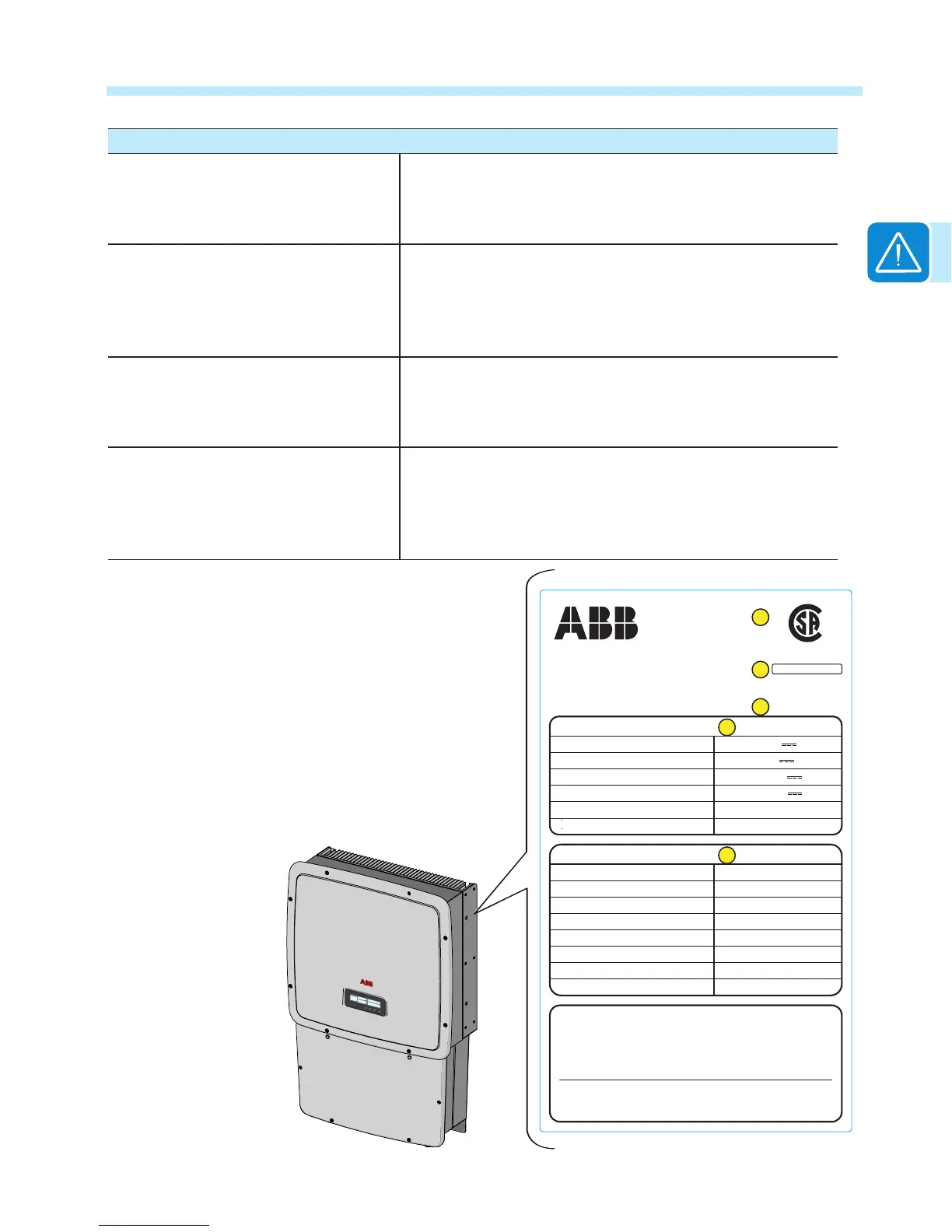

Regulatory label
Technical data in this manual does not
supersede the data on the labels afxed
to the equipment. The nameplate
shown is afxed to the inverter and
provides the following information:
1. Certication
2. Product origin
3. Model name
4. DC input data
5. AC output data
UL 1741
CSA-C22.2 No. 107.1-01
C US
®
Made in Italy
www.abb.com/solar
SOLAR GRID TIED INVERTER
UTILITY INTERACTIVE - TRANSFORMERLESS INVERTER
MODEL: TRIO-20.0-TL-OUTD-S-US-480-A
Operating Ambient Temperature:-25 to +60 °C (-13 to +140 °F), with Output Power Derating
Type of Enclosure: NEMA 4X
Photovoltaic Arc-Fault Circuit Protection - Type 1
( ):
1
For More Details Refer to the Instructions Manual
( ):
2
For each of the two input channels
( ):
3
Adjustable from 57.0 Hz to 59.8 Hz
( ):
4
Adjustable from 60.2 Hz to 63.0 Hz
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesidered operation.
Nominal Input Operating Voltage
Max. Input Voltage
Range of Input Operating Voltage
Range of Input Voltage @Full Power
Max. Input Current
Max. Input Short Circuit Current (P.V. Panels
DC RATING
Nominal Output Voltage
Operating Voltage Range
Nominal Output Frequency
Operating Frequency Range
Output Power Factor
Max. Output Current
AC RATING
Max. Continuous Output Power
Max. Output Overcurrent Protection
25 A ( )( )
1 2
30 A ( )( )
1 2
700 V
1000 V ( )
1
200 - 950 V ( )
1
450 - 800 V ( )
1
60 Hz (factory preset)
59.3 ( ) - 60.5 Hz ( )
3 4
>0.995
27 A (rms)
480 V~ 3Ø
40 A (rms)
20000 W @ 45°C amb.
422-528 V~
1
2
3
4
5
