• Lightly press the screwdriver tip toward the wire slot until the clamp opens; hold the clamp
open with the screwdriver.
• Insert the conductor into the socket until seated.
• Release the pressure on the screwdriver and remove it from the slot.
• Check the integrity of the connection by tugging on the wire.

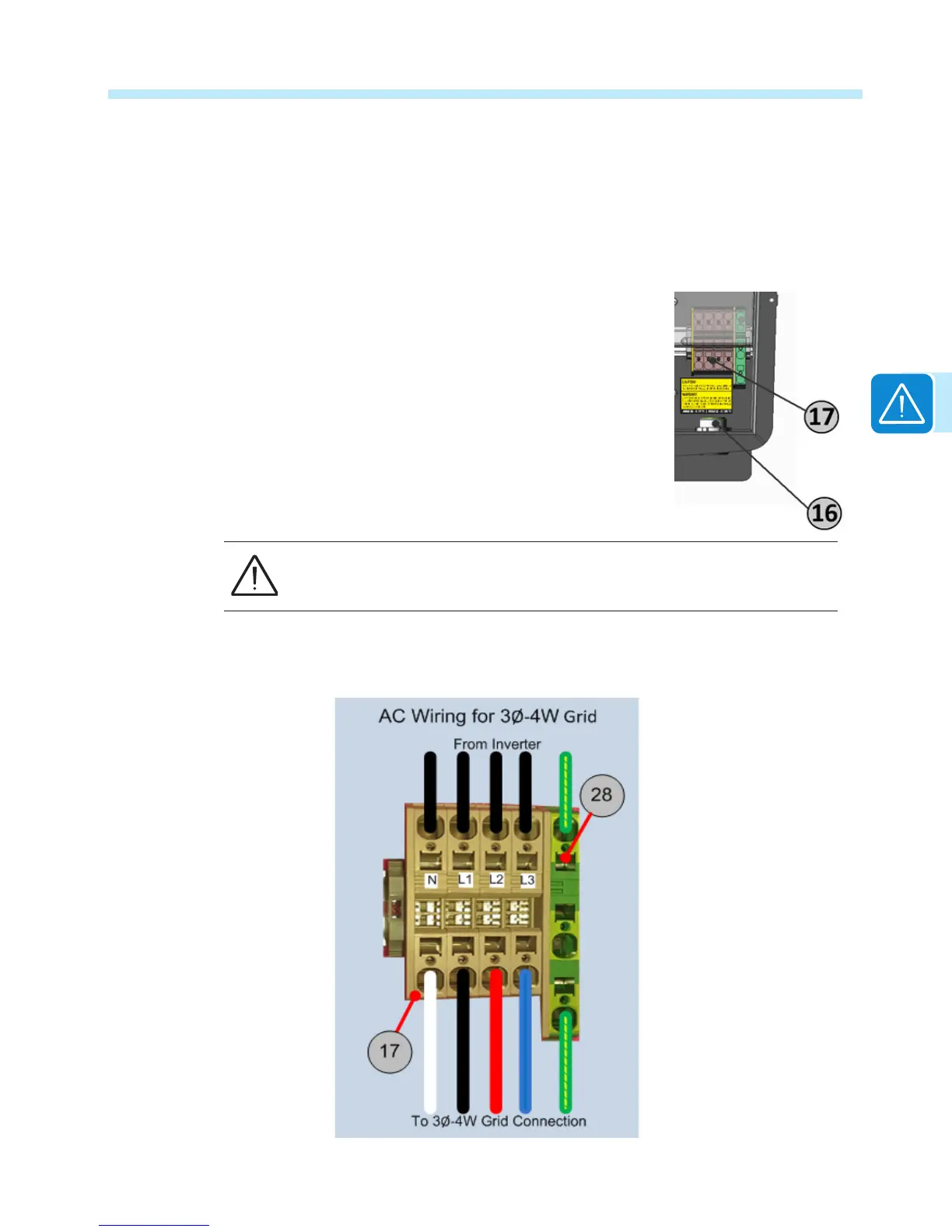

Connection to the AC terminal block
For all models, connection to the AC terminal block 17 is made by
pulling conductors through a raceway connected to the AC conduit
knockout 16.
Remove the threaded plastic plug from the AC conduit knockout 16
and replace with a conduit hub sized to t the required wiring and
raceway. Pull the circuit conductors through the conduit opening
and connect the necessary conductors.
Terminal blocks are rated for operation to 90°C and accept wire size in the range
of 8 AWG - 4 AWG solid or with type B or type C standing (19 strands maximum).
For conductors with ner stranding, a suitable UL listed wire ferrule must be used.
The TRIO is intended to be connected to a four wire WYE grid; connect Neutral, L1, L2, L3,
and EGC conductors.
