Installation method with rigid conduit
If installing rigid conduit with the TRIO, mount the inverter as instructed above before making the
rigid conduit connections. The inverter wiring box moves up in the installation procedure and the
connection of rigid conduit would prevent this necessary movement if installed prior to mounting
the inverter.

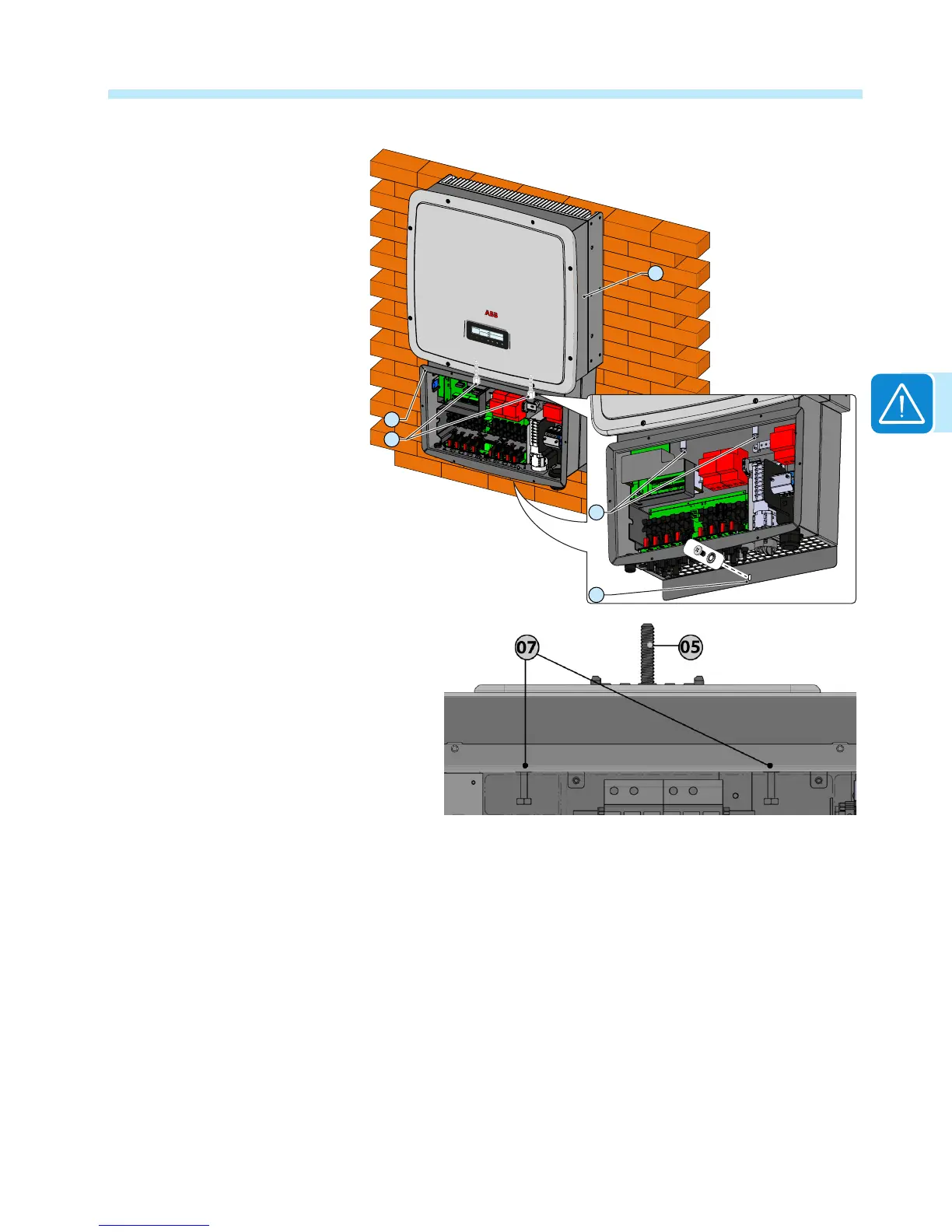

• Once the wiring box and inverter
are connected, screw in the two
connector screws 07 located
inside the wiring box to fully lock
and seal the connection.
• Using a 13mm socket wrench,
nish tightening each of the two
connector screws 07 to at least
13.3-14.75 ft-lbs (18-20Nm)
torque.
• After tightening the connector
screws 07, nish tightening the
clamp screw 05 at the bottom
of the wiring box to 13.3 ft-lbs
(18Nm) of torque.
• Anchor the connected wiring
box and inverter to the lower
end of the bracket by tightening
the locking screw 27 located
underneath the wiring box.
• Upon completion, replace the
front cover of the wiring box 08
and torque screws to at least 21
in-lbs (2Nm) to ensure proper
waterproof sealing.
