The process of joining the inverter and wiring box together should be completed before the
conduit is secured. When completely tightened the wiring box will move up to meet the inverter.
It is recommended to employ exible conduit methods to allow for easy removal of the inverter, if
ever required.
Installation method with flexible conduit
When installing exible conduit with the TRIO, provide enough conduit to allow for approximately
1-1½” of vertical movement between the inverter and wiring box. Prior to making the conductor
connections in the wiring box, provide enough conductor to allow for the movement of the wiring
box in the nal stages.
01
A
A
A
A
A
A
A
A
A
A

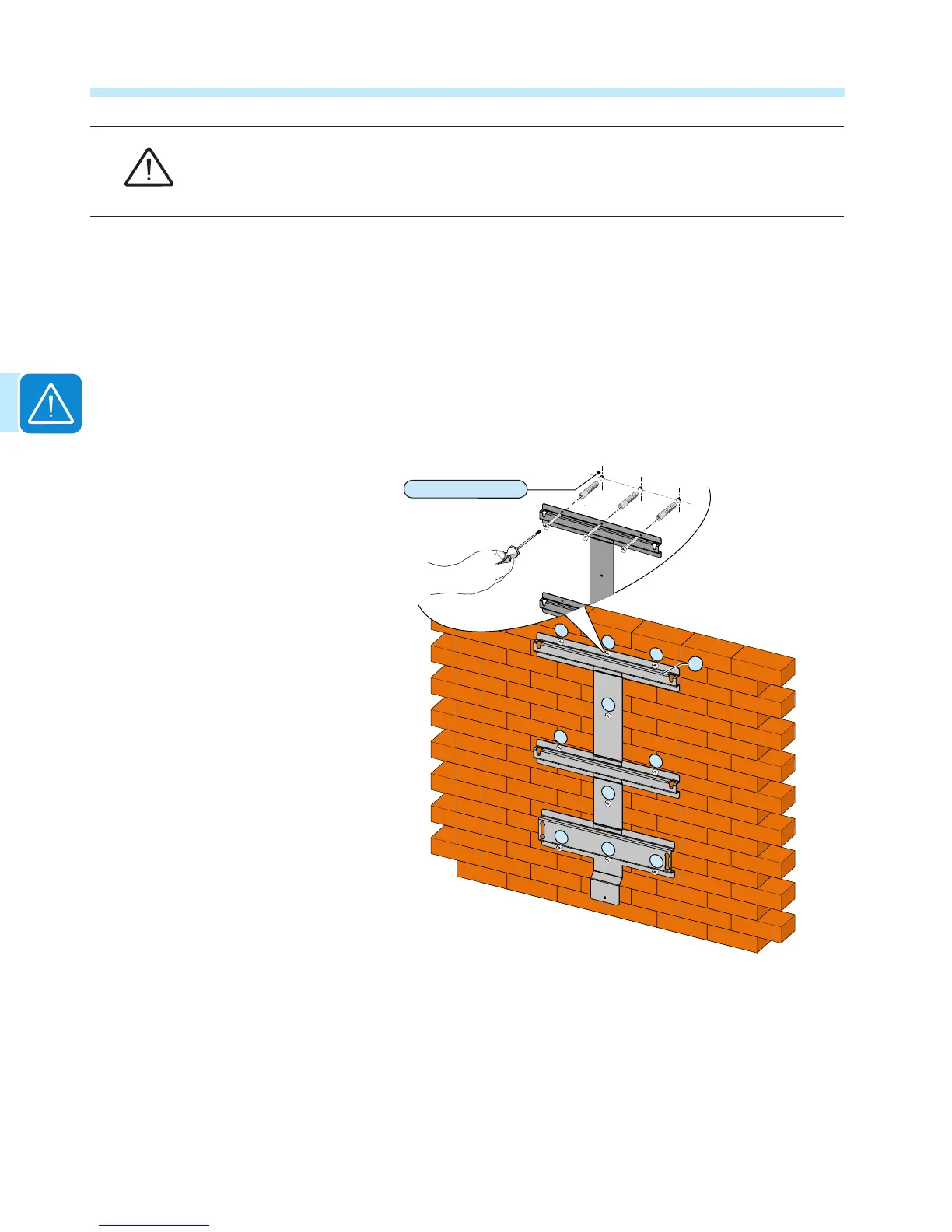

• Using a level, position the bracket
01 level on the wall, using it as a
drilling template.
• Using a 10mm drill bit, drill the
required 10 holes A 70mm deep.
• Using the 10 (ten) 10mm diameter
wall anchors, screw the bracket to
the wall.
• When installing in seismic Zone
3 or higher, the ve center wall
anchors must be xed into a
wood/steel wall stud or concrete/
masonry wall.
To Next Page
