Installation position
When choosing the installation location and position, comply with the following conditions:
• Install on a wall or strong structure capable of bearing the weight.
• Install vertically with a maximum incline of +/- 5°. If the mounted inverter is tilted to an angle
greater than the maximum noted, heat dissipation can be inhibited, and may result in less
than expected output power.
• Install in a safe place where all switch handles and controls remain easy to reach and meet
height requirements of the applicable electrical code. Install at eye level so the display and
status LEDs can be easily seen.
• Ensure sufcient working area in front of the inverter to allow easy access and compliance
with the minimum clearance requirements of NEC 110.34(A).

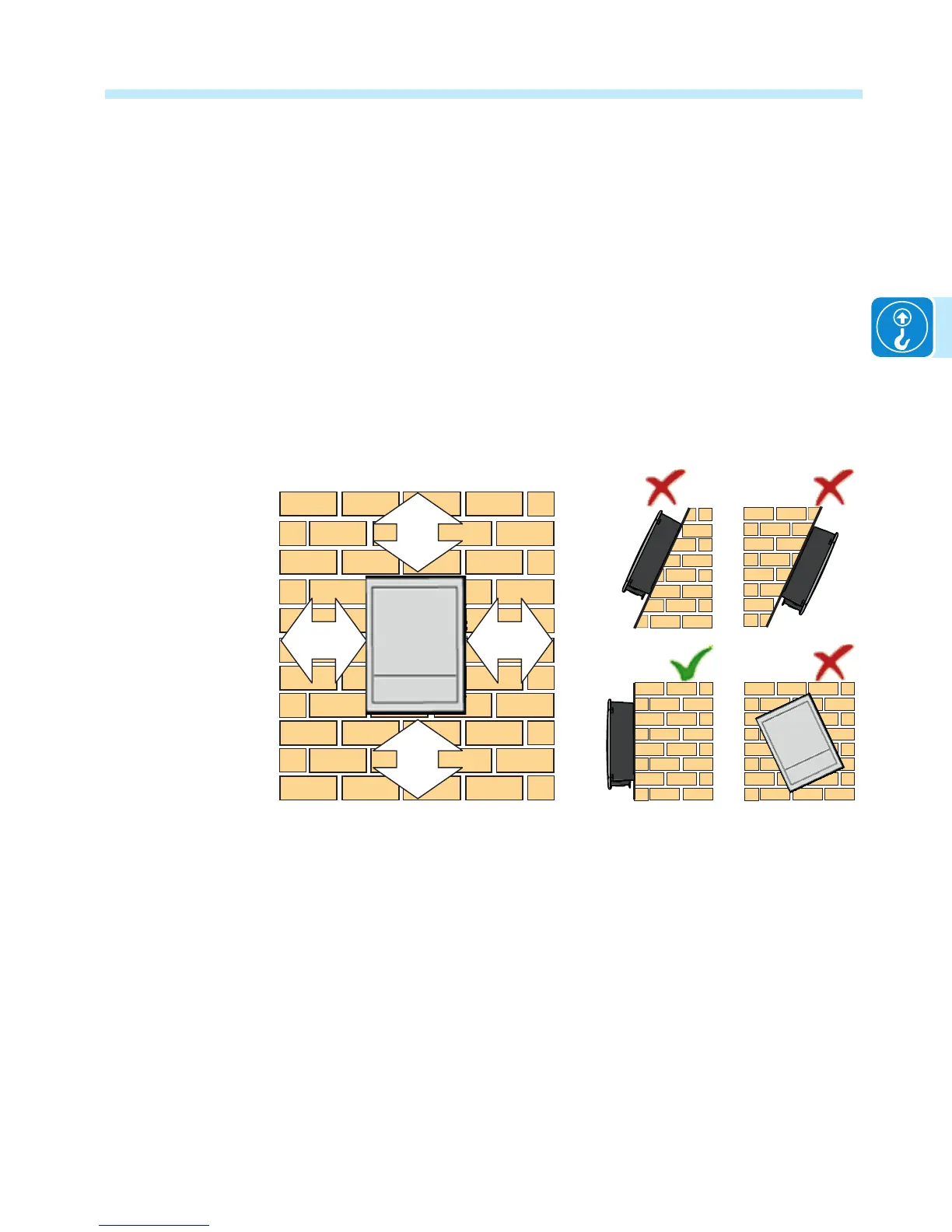

• When planning the installation, maintain clearance distances shown to allow normal control
functions and easy maintenance operations.
32
in
20
in
6 in
6 in
