Display and keypad
There are three indicators on the LED panel and four buttons on the keypad. LEDs indicate the
operating state of the inverter. The keypad is used to review data on the cyclical display area b10
and access the data logged internally on the TRIO, using the menus described in this section.
LED Description
Green POWER
LED
Indicates that the inverter is working correctly.
This LED ashes while the grid is being checked during start up. If a valid grid voltage
is measured, the LED stays on continuously, provided there is sufcient sunlight to
activate the unit. If not, the LED continues to ash until there is sufcient sunlight for
activation. During this phase, the LCD shows the “Waiting for Sun” message.
Yellow ALARM LED
Indicates that the inverter has detected an anomaly; the type of problem
is shown on the display area b7.
Red GFI LED
The GFI (ground fault indicator) LED indicates that the inverter has detected a ground
fault on the DC side of the PV array. When this fault is detected, the inverter immediately
disconnects from the grid and the relevant error warning appears in the display area
b7.
Keypad button Description
ESC button Use the ESC button to access the main menus, exit a mode or go back.
UP button Use the UP button to read the data on the display by scrolling upwards, or to increase
the set value during data entry.
DOWN button Use the DOWN button to read the data on the display by scrolling downwards, or to
decrease the set value during data entry.
ENTER button Press ENTER to conrm the operation or to enter the set data item.
During operation, the display cycles through available data points, updating every ve seconds. Screens may
be scrolled manually by pressing the UP and DOWN buttons on the keypad. Activation of cyclical scrolling will
be indicated by two arrows in the top left corner of the two-line display. Scrolling can be blocked by pressing the
ENTER key until a padlock symbol appears.
Some parameters (e.g., current, voltage, power, partial energy, lifetime energy etc.) are available only after grid
connection.

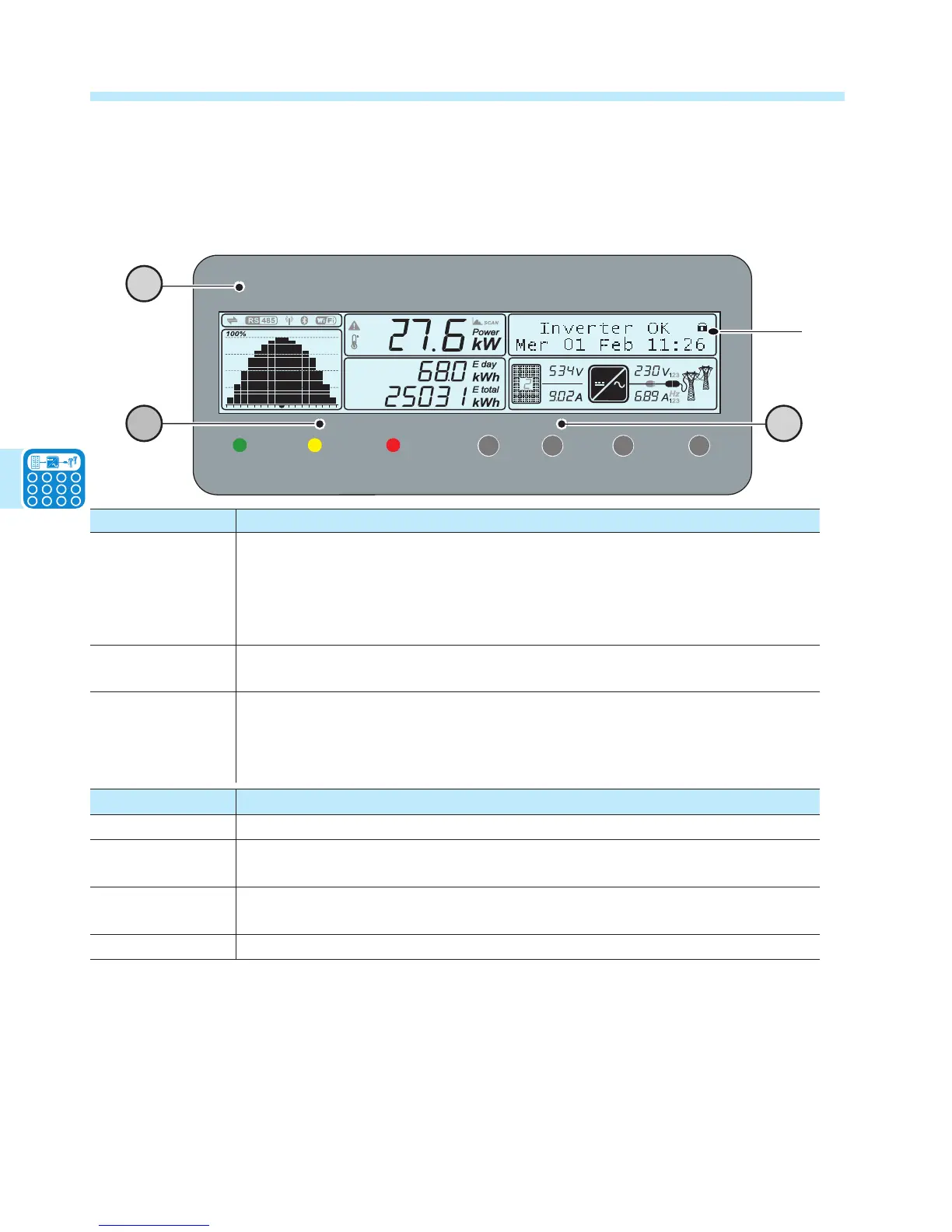

POWER ALARM GFI ESC UP DOWN ENTER
