CR2032 battery replacement
The CR2032 battery, located in the switchbox on the communication card 09, powers
the time of day clock. When this battery is at end-of-life a message will appear on the
display alerting the need for replacement. This battery can be purchased at any retail
store that sells coin cell batteries.
• Remove the wiring box front cover 08.
• The communication card 09 is protected by two removable covers.
• Remove the cover housing the battery area.
• Remove the old battery.

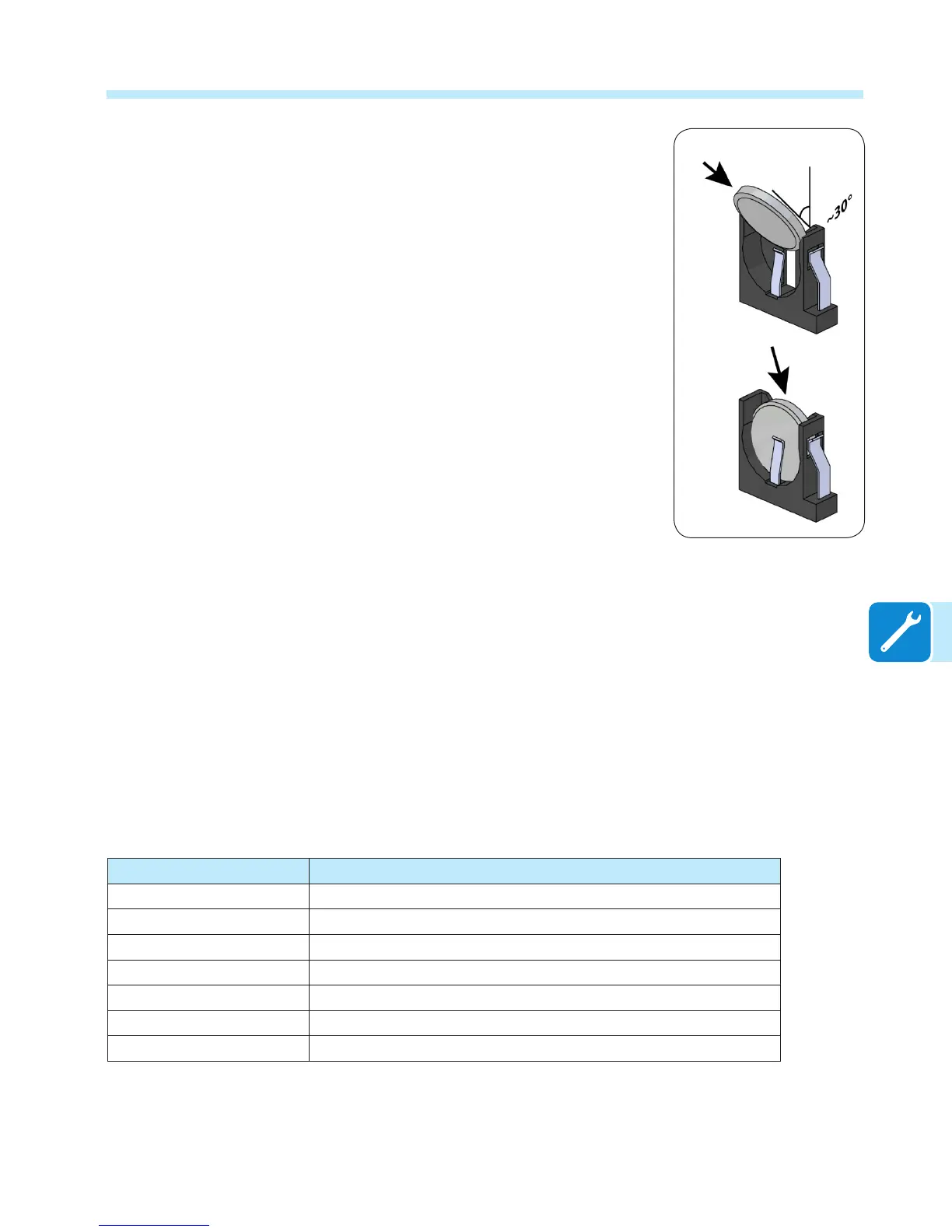

• Insert the new battery into its holder, sliding in at a 30° angle.
• The battery should seat into the correct position within the holder.
• After battery replacement is complete, replace the clear protective cover and the
cover of the wiring box 08 and torque screws to at least 21 in-lbs (2Nm) to ensure
proper waterproof sealing.
Storage and dismantling
If the equipment is not used immediately or is stored for long periods, check that it is packaged correctly and
contact ABB technical support at 1-877-261-1374 for storage instructions. The equipment must be stored in well-
ventilated indoor areas in a noncorrosive environment. Restarting after a long storage period requires the removal
of oxidation and dust that may have settled inside the equipment if not suitably protected.
ABB CANNOT be held responsible for disposal of the equipment, displays, cables, batteries, etc. The customer
must dispose of these substances, which are potentially harmful to the environment, in accordance with the
regulations in force in the country of installation.
If the equipment is dismantled, follow the regulations in force in the country of destination and avoid causing any
kind of environmental hazard upon disposal. Use dumps suitable for disposal of the various types of materials listed
below.
Component Construction material
Frame, brackets, supports Carbon steel or stainless steel
Casing or covers Aluminum
Paint Epoxy based powder coat
Plugs and seals Rubber/(Neoprene and/or Butadiene)/Polyimide PA6
Electrical cables Copper/PVC jacket
Backup battery Nickel/Lithium
Component parts May contain small amounts of lead; product uses lead-free solder.
