2 - Installation

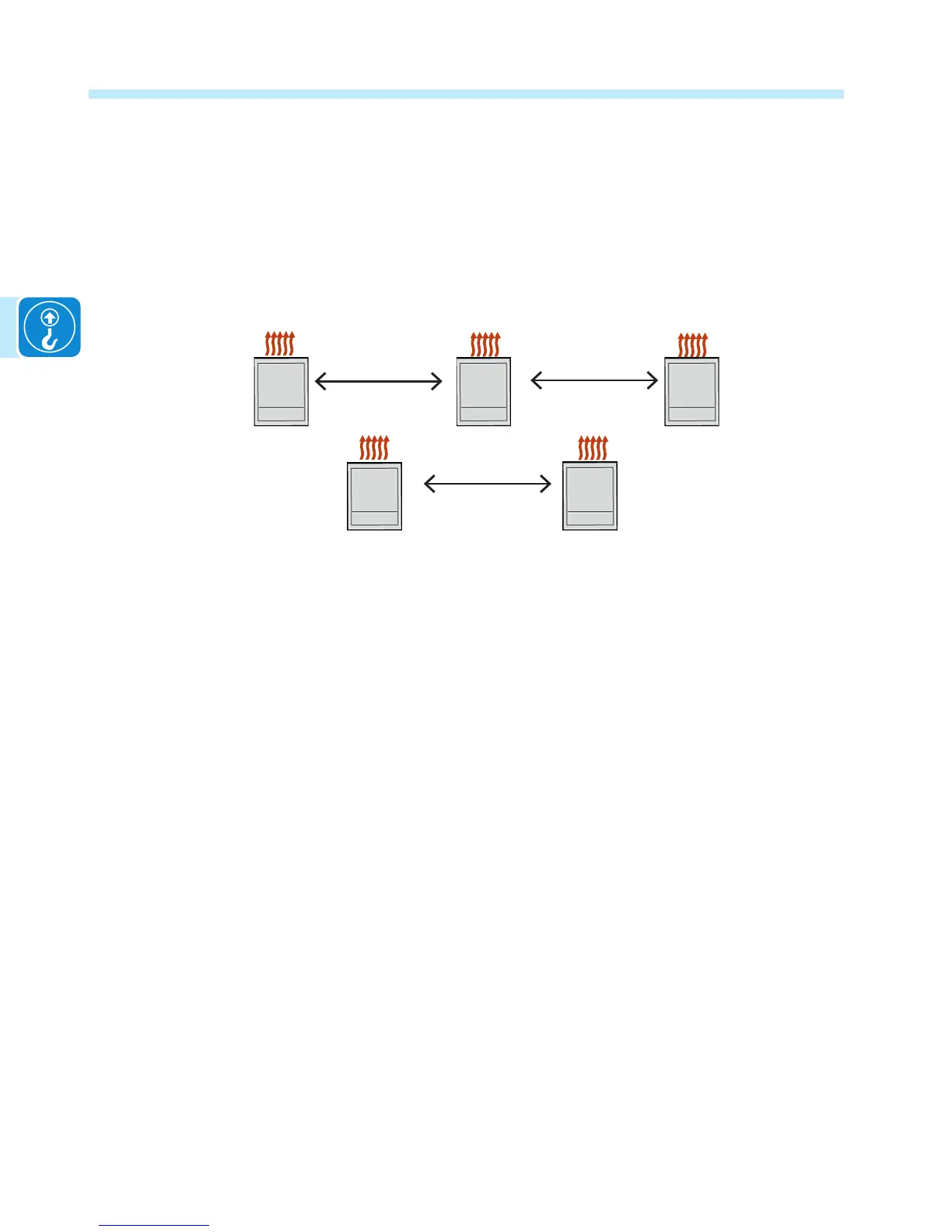

For multiple-inverter installations, position the inverters side-by-side, maintaining minimum
clearances. If the space available does not allow the side-by-side arrangement, multiple inverters
can be placed in the staggered arrangement shown; this minimizes heat dissipation from lower
inverters affecting operation of other inverters.
Minimum clearances illustrated include width of inverter plus additional allowances for inverters
arranged above or below.
Side-by-side arrangement
Staggered arrangement
6”
6”
38”
38”
38”
