T006CC2
- 18 -
2 - Installation
If inspection reveals damage to the inverter, contact the supplier or authorized distributor for a
repair/return determination and instructions regarding the process.

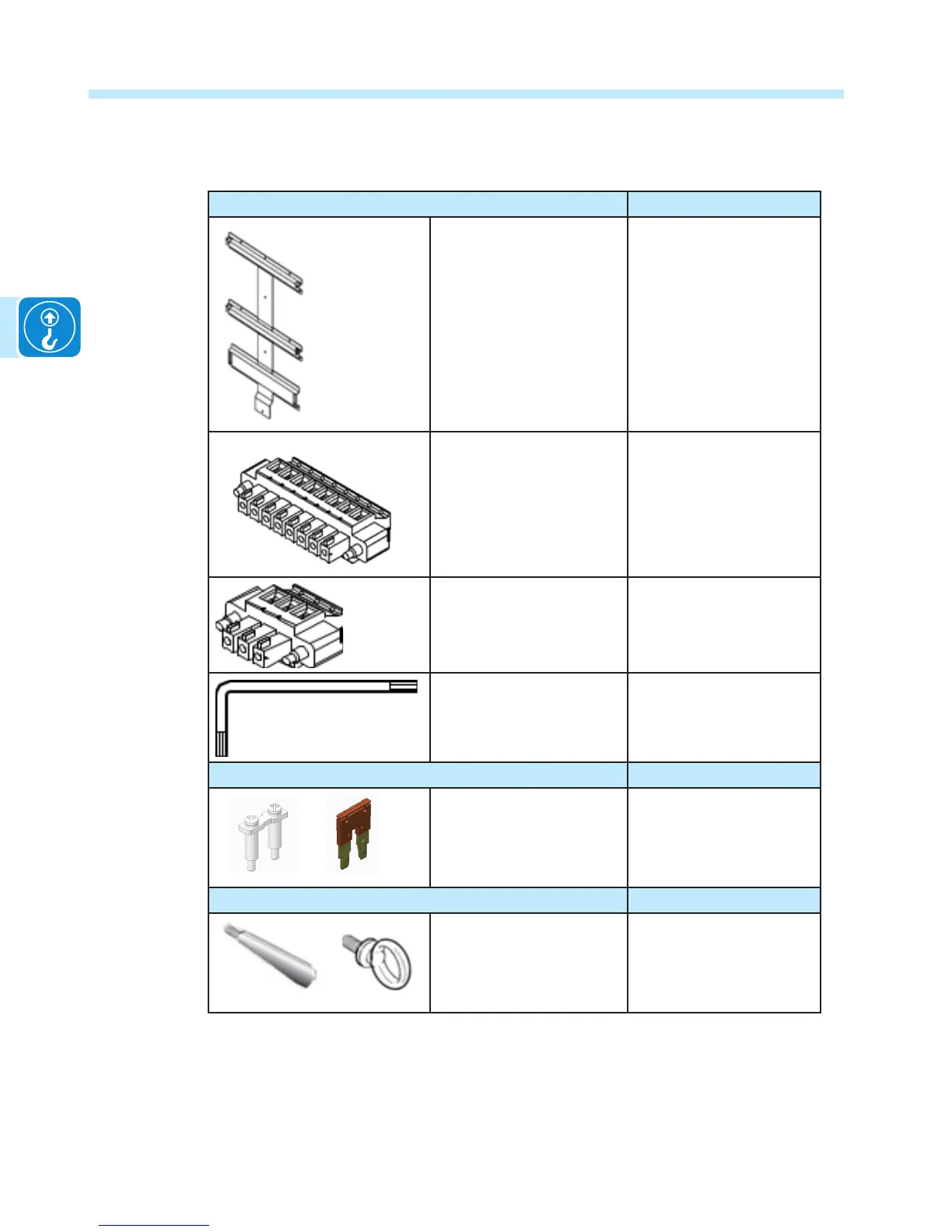

COMPONENTS FOR ALL MODELS QTY/PART NO.
(1) Mounting bracket,
(10 each) wall anchor,
screw, washer,
(1) locking screw for secur-
ing wiring box to mounting
bracket
Bracket
XAK.V0L03.0
OR
Mounting kit
XAK.V0L01.0
8 pin connector 4
82000005908-G
3 pin connector 2
82000005907-G
Torx wrench;
90°; T20; 64x23mm,
1
81510000077
COMPONENTS FOR NON-AFD MODELS ONLY QTY/PART NO
Jumpers for conguration
of parallel input channels
2 each
Reliance RAQ2-16,
ABB JB12-2
OPTIONAL COMPONENT QTY/PART NO
Optional lifting kit includes
handles and eyebolts for
lifting the inverter
1 kit M12
3M2200HNDK0
