AEROSET
®
System Troubleshooting Guide
94816-107—November 2004
6. Verify reagent probe alignment over the reagent cartridge.
7. Select <Adjust> on the right side of the screen.
8. Select <CW> (clockwise) or <CCW> (counterclockwise) as
needed to center the probe over the reagent cartridge.
9. Select <OK> to save the position.
10. Select Rgt Arm A Vert Down <Adj>.
11. Verify the reagent arm position.
12.
13. Select Rgt Arm A Vert Home/Up <Adj>.
14. Repeat steps 4 through 12.
If... Then
Reagent probe is not
aligned over the reagent
cartridge
Proceed to step 13.
Reagent probe is aligned
over the reagent
cartridge
Select <OK> on the
MAINTENANCE UTILITIES
screen then select <OK> on
the Home All Robotics dialog
window.

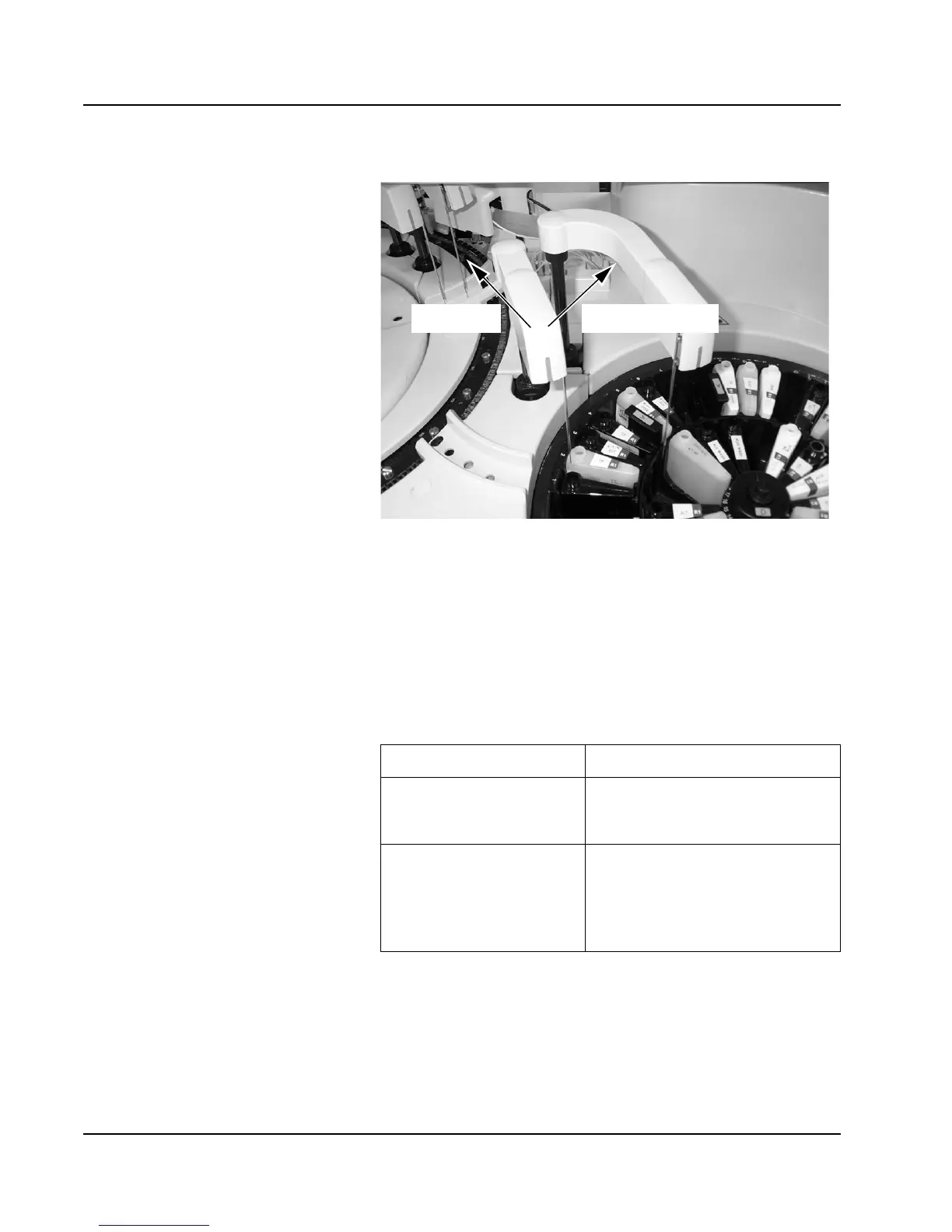

CounterclockwiseClockwise
To Next Page
