AEROSET
®
System Troubleshooting Guide 215
94816-107—November 2004
Unit Configuration Default Screen
The default view of the AEROSET software v1.02ER000 Unit
Configuration screen is shown below. Also included is a table
that describes fields on the Unit Configuration screen which
can be affected if the System Configuration Software Disk v3.0
is loaded after upgrade to software v1.02ER000.

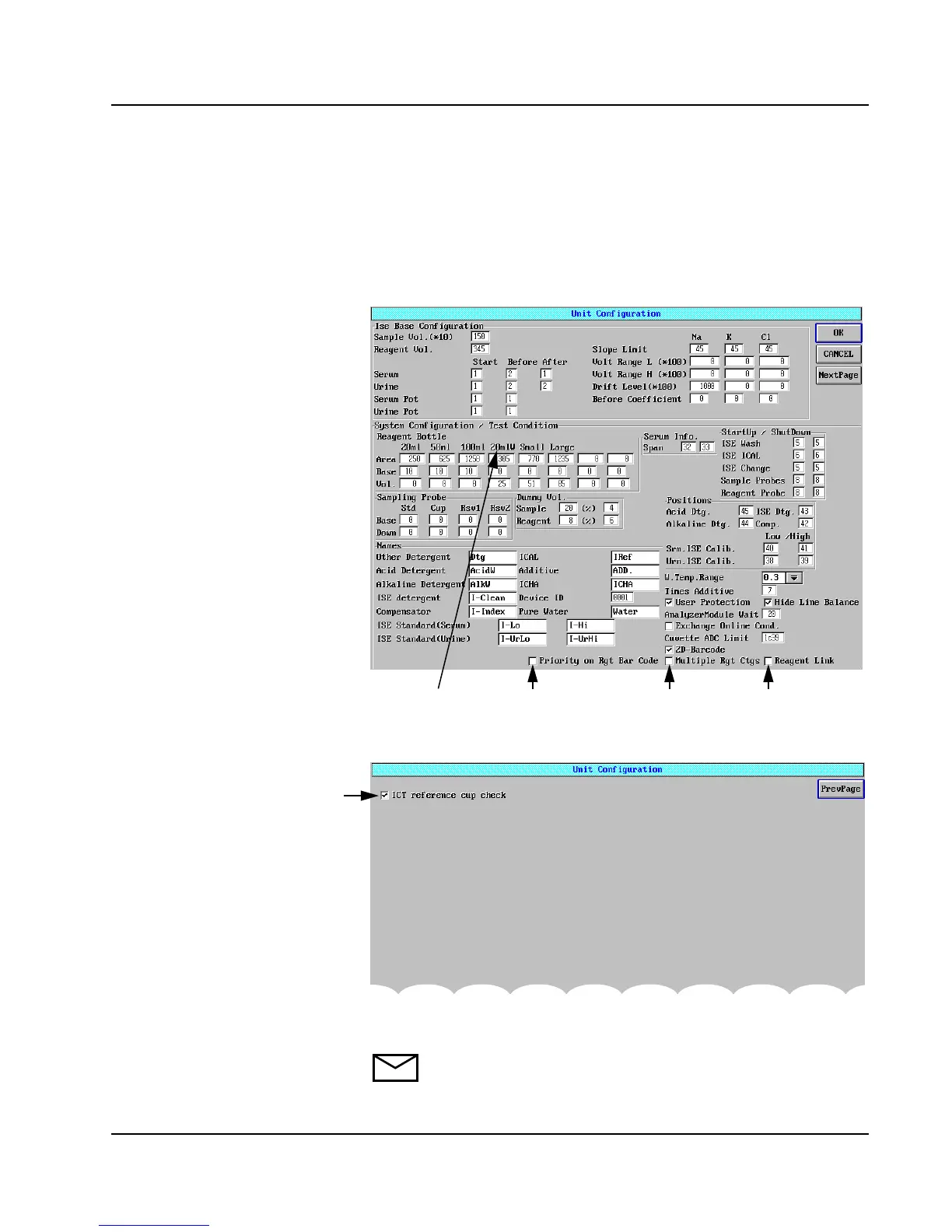

Figure 7: Unit Configuration Screen, Default View
Figure 8: Unit Configuration Default Screen, Default View
Page 2 (Software Version 1.02ER000)
NOTE: For software v1.03ER000, refer to the following
page for default settings on the Unit Configuration
screen, Page 2.
1243
5
To Next Page
