MC96F6432
June 22, 2018 Ver. 2.9 125
XX
T0CNT
T0PWM
00H 01H 02H 4AH FFHFEH 00H
T0 Match
Interrupt
T0 Overflow
Interrupt
T0DR
1. T0DR = 4AH
Timer 0
clock
Set T0EN
T0PWM
T0 Match
Interrupt
2. T0DR = 00H
T0PWM
T0 Match
Interrupt
3. T0DR = FFH
PWM Mode(T0MS = 01b)

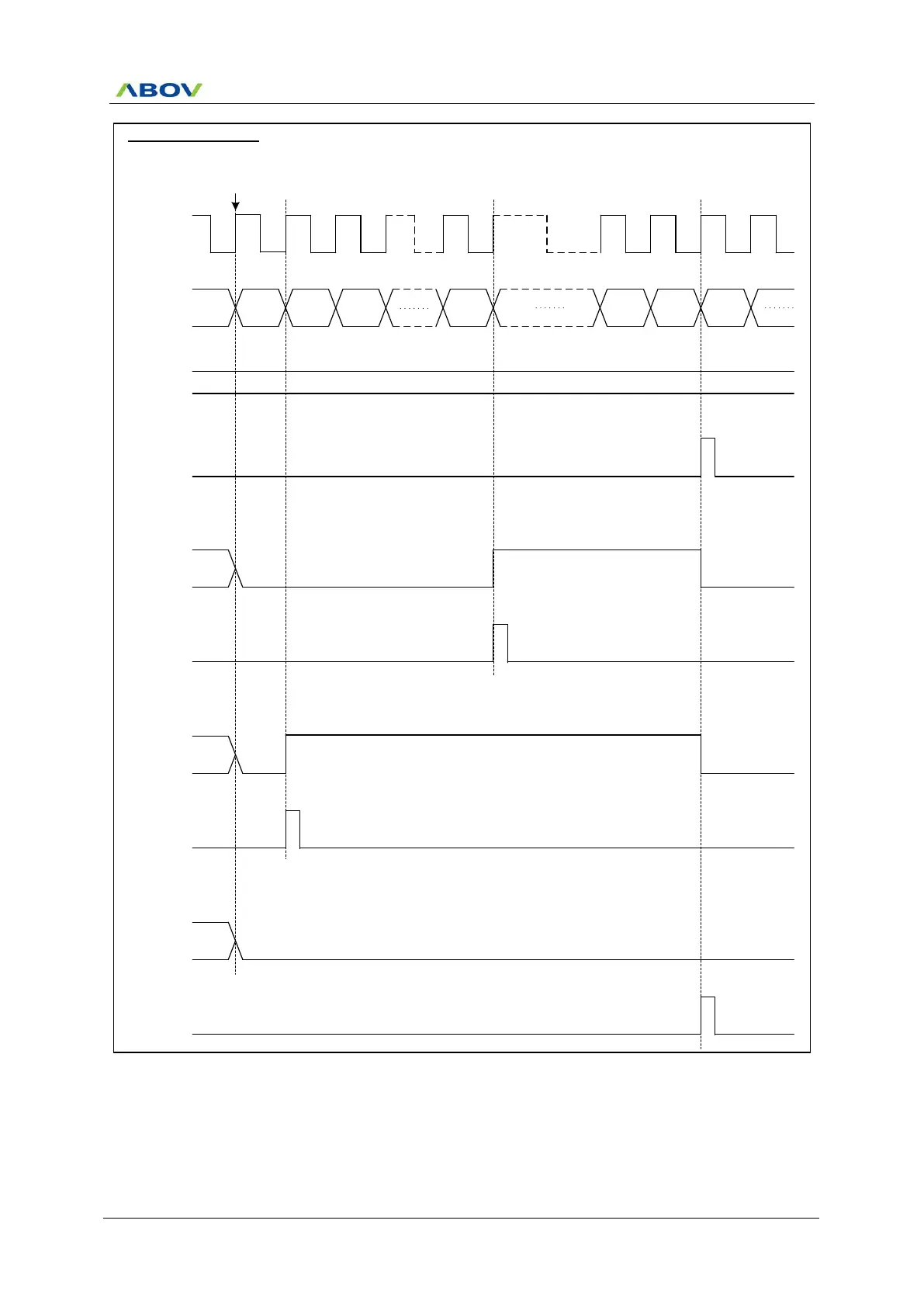

Figure 11.9 PWM Output Waveforms in PWM Mode for Timer 0
