Abov MC96F6432 Series User Manual

MC96F6432
278 June 22, 2018 Ver. 2.9

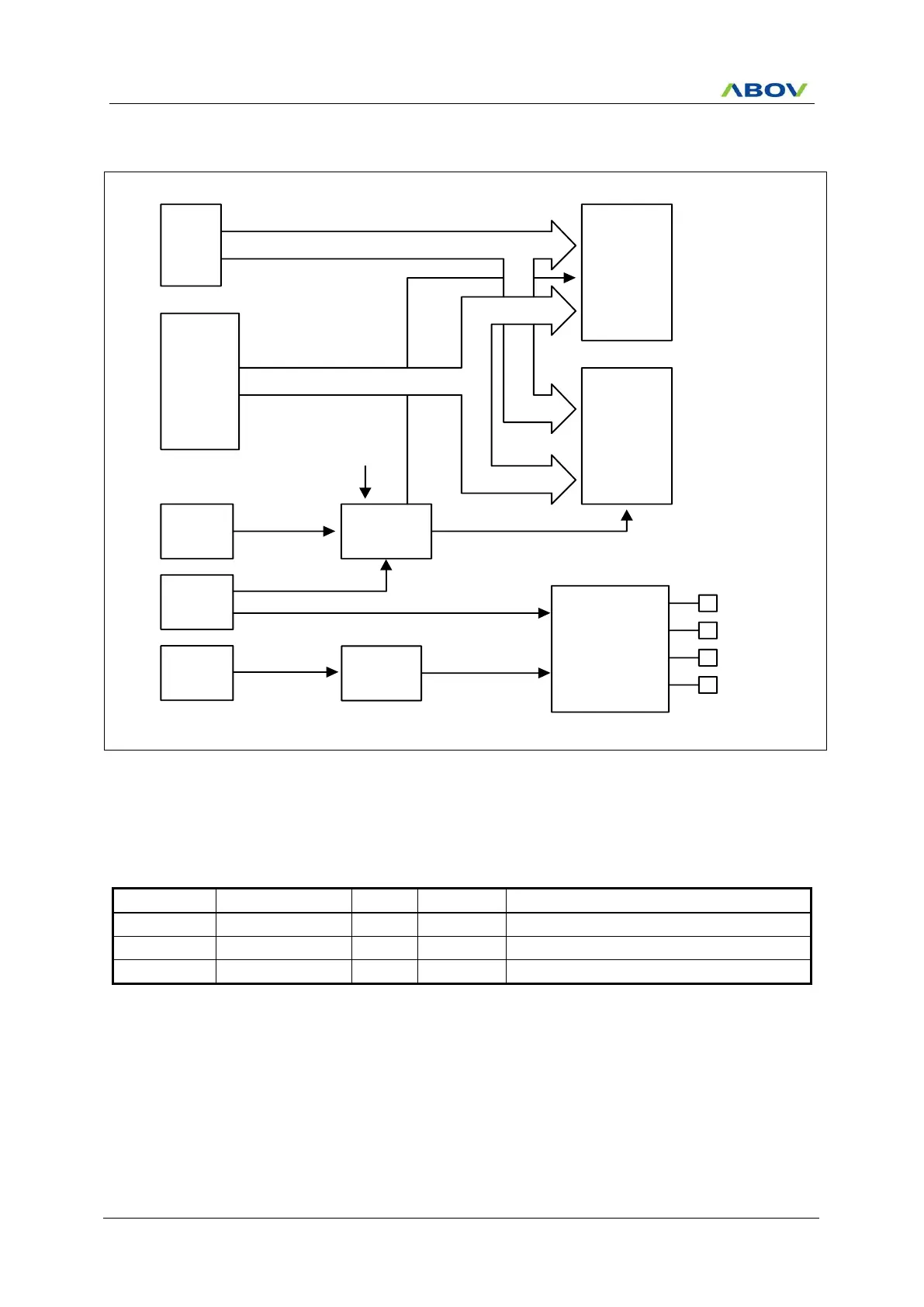

11.14.5 Block Diagram
Port
Latch
fLCD
LCD
Display
RAM
LCDCRL
LCDCRH
Timing
Controller
LCD Bias
Voltage
Generator
COM/Port
Driver
SEG/Port
Driver
VLC2
VLC1
VLC0
VLC3
LCDCCR
Contrast
Controller
Figure 11.106 LCD Circuit Block Diagram
11.14.6 Register Map
Table 11-26 LCD Register Map
Name
Address
Dir
Default
Description
LCDCRH
9AH
R/W
00H
LCD Driver Control High Register
LCDCRL
99H
R/W
00H
LCD Driver Control Low Register
LCDCCR
9BH
R/W
00H
LCD Driver Contrast Control Register
11.14.7 LCD Driver Register Description
LCD driver register has two control registers, LCD driver control high register (LCDCRH), LCD driver control low
register (LCDCRL) and LCD driver contrast control register (LCDCCR).
